spring boot 整合 spring data jpa
2017-07-27 14:43
796 查看
因为最近在实习过程中,需要学习jpa框架,所以在学习后,简单总结一下 spring boot 和 spring data jpa的整合。 因为之前学习了一下 spring boot ,所以这次就将二者整合一下,也是实践一下spring boot吧

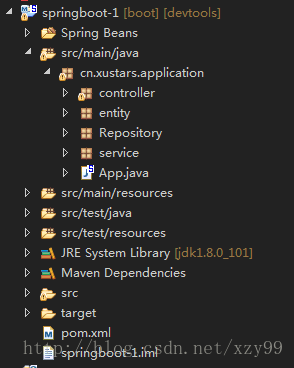

项目整体结构截图
首先贴出最最基本的pom文件
spring boot 强调的是约束大于配置,所以相比传统的ssm ,ssh等,配置文件少了许多,这也是spring boot很大的优势吧,下面就是项目中唯一的配置文件 application.properties ,主要用到的是 数据库的配置
接着看代码,下面是实体类的配置,通过注释和数据表进行映射,因为仅仅是用来整合测试的,所以就只建了一个实体类
下面是dao层的代码,这也是jpa与其他持久层框架不同的地方
sql语句可以通过@Query的注释来自己定义,上面两条语句,其实jpa中都有封装好的方法,分别是 findOne() 和findAll(),这里我只是想说明@Query的用法,所以重新写了这两个方法,实际项目中可以直接调用相关方法
下面是service层的相关代码
controller层代码
注意这里用的注解是@RestController,而不是我们以前经常用的@Controller,前者主要是多了一个功能,就是相当于在此Controller中的所有方法上加了一个@ResponseBody 注解,适合spring boot 的 restful 风格,所以@RestController也是spring boot中比较常用的
最后是spring boot 的程序入口,也可以叫主程序,贴上代码
至此,spring boot 和 spring data jpa的整合也就完成了.
项目整体结构截图
首先贴出最最基本的pom文件
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>cn.xustars</groupId> <artifactId>springboot-1</artifactId> <version>0.0.1-SNAPSHOT</version> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>1.5.2.RELEASE</version> </parent> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <!-- freemarker的依赖配置信息 --> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-freemarker</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-jpa</artifactId> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> <configuration> <fork>true</fork> </configuration> </plugin> </plugins> </build> </project>
spring boot 强调的是约束大于配置,所以相比传统的ssm ,ssh等,配置文件少了许多,这也是spring boot很大的优势吧,下面就是项目中唯一的配置文件 application.properties ,主要用到的是 数据库的配置
######################################################## ###server \u914d\u7f6e\u4fe1\u606f. ######################################################## #spring boot\u9ed8\u8ba4\u7aef\u53e3\u53f7\u662f8080 #server.port = 8081 #spring boot\u9ed8\u8ba4\u7684context-path \u662f / #server.context-path = /springboot #server.port=8080 #server.address= # bind to a specific NIC #server.session-timeout= # session timeout in seconds #the context path, defaults to '/' #server.context-path=/spring-boot #server.servlet-path= # the servlet path, defaults to '/' #server.tomcat.access-log-pattern= # log pattern of the access log #server.tomcat.access-log-enabled=false # is access logging enabled #server.tomcat.protocol-header=x-forwarded-proto # ssl forward headers #server.tomcat.remote-ip-header=x-forwarded-for #server.tomcat.basedir=/tmp # base dir (usually not needed, defaults to tmp) #server.tomcat.background-processor-delay=30; # in seconds #server.tomcat.max-threads = 0 # number of threads in protocol handler #server.tomcat.uri-encoding = UTF-8 # character encoding to use for URL decoding ######################################################## ###THYMELEAF (ThymeleafAutoConfiguration) ######################################################## #spring.thymeleaf.prefix=classpath:/templates/ #spring.thymeleaf.suffix=.html #spring.thymeleaf.mode=HTML5 #spring.thymeleaf.encoding=UTF-8 # ;charset=<encoding> is added #spring.thymeleaf.content-type=text/html # set to false for hot refresh #\u5f00\u53d1\u8fc7\u7a0b\u5efa\u8bae\u5173\u95ed\u7f13\u5b58. spring.thymeleaf.cache=false ######################################################## ###FREEMARKER (FreeMarkerAutoConfiguration) ######################################################## spring. e4ae freemarker.allow-request-override=false spring.freemarker.cache=false spring.freemarker.check-template-location=true spring.freemarker.charset=UTF-8 spring.freemarker.content-type=text/html spring.freemarker.expose-request-attributes=false spring.freemarker.expose-session-attributes=false spring.freemarker.expose-spring-macro-helpers=false #spring.freemarker.prefix= #spring.freemarker.request-context-attribute= #spring.freemarker.settings.*= spring.freemarker.suffix=.ftl #spring.freemarker.template-loader-path=classpath:/templates/ #comma-separated list #spring.freemarker.view-names= # whitelist of view names that can be resolved ######################################################## ###datasource -- \u6307\u5b9amysql\u6570\u636e\u5e93\u8fde\u63a5\u4fe1\u606f. ######################################################## spring.datasource.url = jdbc:mysql://localhost:3306/spring-boot spring.datasource.username = root spring.datasource.password = 123456 spring.datasource.driverClassName = com.mysql.jdbc.Driver spring.datasource.max-active=20 spring.datasource.max-idle=8 spring.datasource.min-idle=8 spring.datasource.initial-size=10 ######################################################## ### Java Persistence Api -- Spring jpa\u7684\u914d\u7f6e\u4fe1\u606f. ######################################################## # Specify the DBMS spring.jpa.database = MYSQL # Show or not log for each sql query spring.jpa.show-sql = true # Hibernate ddl auto (create, create-drop, update) spring.jpa.hibernate.ddl-auto = update # Naming strategy #[org.hibernate.cfg.ImprovedNamingStrategy #org.hibernate.cfg.DefaultNamingStrategy] spring.jpa.hibernate.naming-strategy = org.hibernate.cfg.ImprovedNamingStrategy # stripped before adding them to the entity manager) spring.jpa.properties.hibernate.dialect = org.hibernate.dialect.MySQL5Dialect
接着看代码,下面是实体类的配置,通过注释和数据表进行映射,因为仅仅是用来整合测试的,所以就只建了一个实体类
package cn.xustars.application.entity; import javax.persistence.Cacheable; import javax.persistence.Entity; import javax.persistence.GeneratedValue; import javax.persistence.Id; import javax.persistence.Table; @Table(name = "student") @Entity @Cacheable public class Student { private Integer id; private String name; private Integer age; private String password; public Student() { super(); } public Student(Integer id, String name, Integer age, String password) { super(); this.id = id; this.name = name; this.age = age; this.password = password; } @Id @GeneratedValue public Integer getId() { return id; } public void setId(Integer id) { this.id = id; } public String getName() { return name; } public void setName(String name) { this.name = name; } public Integer getAge() { return age; } public void setAge(Integer age) { this.age = age; } public String getPassword() { return password; } public void setPassword(String password) { this.password = password; } }
下面是dao层的代码,这也是jpa与其他持久层框架不同的地方
package cn.xustars.application.Repository; import java.util.List; import org.springframework.data.jpa.repository.Query; import org.springframework.data.repository.PagingAndSortingRepository; import cn.xustars.application.entity.Student; public interface StudnetRepository extends PagingAndSortingRepository<Student, Integer>{ @Query("from Student") public List<Student> getAll(); @Query("from Student where id=:id") public Student getById(Integer id); }
sql语句可以通过@Query的注释来自己定义,上面两条语句,其实jpa中都有封装好的方法,分别是 findOne() 和findAll(),这里我只是想说明@Query的用法,所以重新写了这两个方法,实际项目中可以直接调用相关方法
下面是service层的相关代码
package cn.xustars.application.service; import java.util.List; import javax.annotation.Resource; import javax.transaction.Transactional; import org.springframework.stereotype.Service; import cn.xustars.application.Repository.StudnetRepository; import cn.xustars.application.entity.Student; @Service public class StudentService { @Resource private StudnetRepository studnetRepository; @Transactional public List<Student> getAll(){ return studnetRepository.getAll(); } @Transactional public Student getById(Integer id){ return studnetRepository.getById(id); } @Transactional public void save(){ Student student = new Student(3,"daf",21,"sdfads"); studnetRepository.save(student); } }
controller层代码
package cn.xustars.application.controller; import java.util.List; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; import org.springframework.web.servlet.ModelAndView; import cn.xustars.application.entity.Student; import cn.xustars.application.service.StudentService; @RestController public class StudentController { @Autowired private String save; @Autowired private StudentService studentService; @RequestMapping("/getAll") public Iterable<Student> queryList(){ List<Student> studentList = studentService.getAll(); return studentList; } @RequestMapping("/getById") public Student queryById(Integer id){ Student student = studentService.getById(id); return student; } @RequestMapping("/save") public String save(){ studentService.save(); return save; } }
注意这里用的注解是@RestController,而不是我们以前经常用的@Controller,前者主要是多了一个功能,就是相当于在此Controller中的所有方法上加了一个@ResponseBody 注解,适合spring boot 的 restful 风格,所以@RestController也是spring boot中比较常用的
最后是spring boot 的程序入口,也可以叫主程序,贴上代码
package cn.xustars.application; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; @SpringBootApplication public class App { public static void main(String[] args) throws Exception { SpringApplication.run(App.class, args); } }
至此,spring boot 和 spring data jpa的整合也就完成了.
