Android自定义控件实现一个带文本与数字的圆形进度条

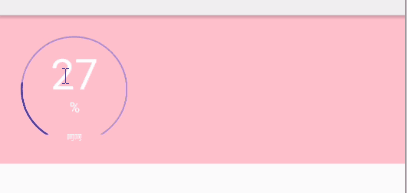

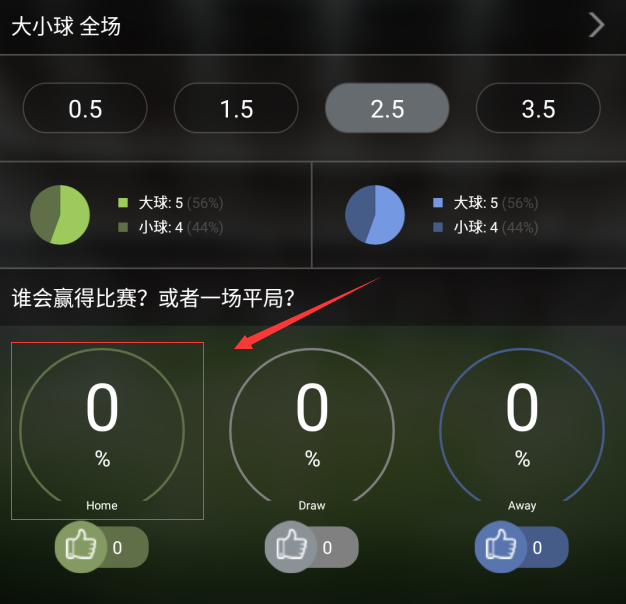

实现的效果图如下所示：





第一步：绘制下方有缺口的空心圆，称为外围大弧吧

anvas.clipRect(0, 0, mWidth, mHeight / 2 + radius - textHeight * 3 / 4);

第二步：计算绘制圆弧进度条时的起始角度，设置为外围大弧的左端点为进度值得起点，扫过的角度所占外围大弧的百分比就是进度值

第三步：绘制数字、文字、百分号

第四步：使用Handler Runnable 和DecelerateInterpolator是进度条和数字动起来

测试代码：

final CustomCircleBar circle=(CustomCircleBar)findViewById(R.id.win_home);
circle.setPercent(10);
circle.setCustomText("呵呵");
circle.setProgessColor(getResources().getColor(R.color.blue));
final Random random=new Random();
circle.setOnClickListener(new View.OnClickListener(){
@Override
public void onClick(View v){
circle.setPercent(random.nextInt(100));
}
});

完成代码如下：

public class CustomCircleBar extends View {
private Context context;
/*进度值*/
private int percent;
/*颜色值*/
private int mProgessColor;
/*下边的文字名称*/
private String mCustomText;
/*外圈圆环的画笔*/
private Paint paintBar = new Paint();
/*下边文字的画笔*/
private Paint paintText = new Paint();
/*动态获取属性值*/
private TypedValue typedValue;
/*先加速后减速*/
DecelerateInterpolator mDecelerateInterpolator = new DecelerateInterpolator();
/*动画持续时间*/
private int duration = 10;
private int curTime = 0;
public CustomCircleBar(Context context) {
super(context);
this.context=context;
init();
}

public CustomCircleBar(Context context, AttributeSet attrs) {
super(context, attrs);
this.context=context;
init();
}

public CustomCircleBar(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
this.context=context;
init();
}

public void setPercent(int percent) {
this.percent = percent;
/*isShown()：Returns the visibility of this view and all of its ancestors*/
if (isShown()) {
/*设置进度后重新开始一次动画*/
curTime=0;
this.invalidate();
}
}

public void setProgessColor(int mProgessColor) {
this.mProgessColor = mProgessColor;
if (isShown()) {
this.invalidate();
}
}

public void setCustomText(String mCustomText) {
this.mCustomText = mCustomText;
}

private Handler mHandler = new Handler();
private Runnable mAnimation = new Runnable() {
@Override
public void run() {
if (curTime < duration) {
curTime++;
/*导致重绘，调用onDraw，onDraw最后调用
* mHandler.postDelayed(mAnimation, 20);更新进度条，界面重绘
* 每次20毫秒，绘制10次，因此动画时间200毫秒*/
CustomCircleBar.this.invalidate();
}
}
};

private void init() {
/*数据初始化，没有设置属性时候的默认值*/
percent = 0;
mProgessColor=Color.rgb(95,112,72);
mCustomText="Home";
typedValue=new TypedValue();
context.getTheme().resolveAttribute(R.attr.maintextclor,typedValue,true);
}

@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
float mWidth = getWidth();
float mHeight = getHeight();
/*下边是进度条画笔的设置*/
/** Restores the paint to its default settings. */
paintBar.reset();
/*圆环宽度4个像素*/
paintBar.setStrokeWidth(4);
/*空心圆环而非填充的额扇形*/
paintBar.setStyle(Paint.Style.STROKE);
paintBar.setAntiAlias(true);
paintBar.setColor(mProgessColor);
/*调整下不透明度，使边框弧和进度条区分开*/
paintBar.setAlpha(80);
/*接下来是文字画笔的设置*/
paintText.setTextSize(20);
paintText.setColor(getResources().getColor(typedValue.resourceId));
paintText.setStyle(Paint.Style.STROKE);
paintText.setAntiAlias(true);
/*从中间开始绘制文本*/
paintText.setTextAlign(Paint.Align.CENTER);
/*测量文字大小*/
Paint.FontMetrics fontMetrics = paintText.getFontMetrics();
/*计算文字高度*/
float textHeight = fontMetrics.bottom - fontMetrics.top;
/*计算圆的半径*/
float radius = Math.min(mWidth, mHeight) / 2 - 10;
/* ❑ save：用来保存Canvas的状态。save之后，可以调用Canvas的平移、放缩、旋转、错切、裁剪等操作。
❑ restore：用来恢复Canvas之前保存的状态。防止save后对Canvas执行的操作对后续的绘制有影响。*/
/*保存画布，绘制进度条*/
canvas.save();
/*clipRect：该方法用于裁剪画布，也就是设置画布的显示区域
调用clipRect()方法后，只会显示被裁剪的区域，之外的区域将不会显示 */
canvas.clipRect(0, 0, mWidth, mHeight / 2 + radius - textHeight * 3 / 4);
/*因为clipRect的原因，外边的圆环下边留个缺口绘制文字*/
canvas.drawCircle(mWidth / 2, mHeight / 2, radius, paintBar);

/*三角函数计算，下方缺口扇形的角度的一半*/
float theta_offset = (float) Math.acos((radius - textHeight / 2) / radius);
/*大弧围成的扇形的角度*/
float theta_full = 360 - 2 * theta_offset;
/*进度值围成的弧对应的角度*/
float thetaProcess = mDecelerateInterpolator.getInterpolation(1.0f * curTime / duration) * percent * theta_full / 100;
/*设置进度值颜色完全不透明*/
paintBar.setAlpha(255);
paintBar.setColor(mProgessColor);
/*注意弧形的起始角度，下边因显示文字导致圆环断开成一条弧，弧有左右两个端点，从左端点开始画弧*/
canvas.drawArc(new RectF(mWidth / 2 - radius, mHeight / 2 - radius, mWidth / 2 + radius, mHeight / 2 + radius), theta_offset+90, thetaProcess, false, paintBar);
/*恢复画布*/
canvas.restore();
/*开始绘制文字*/
paintText.setTextSize(20);
fontMetrics = paintText.getFontMetrics();
float textBaseLineOffset = (fontMetrics.bottom - fontMetrics.top) / 2 - fontMetrics.bottom;
canvas.drawText(mCustomText, mWidth / 2, mHeight / 2 + radius - textHeight / 2 + textBaseLineOffset, paintText);

/*绘制百分号*/
paintText.setTextSize(mHeight * 1 / 8);
fontMetrics = paintText.getFontMetrics();
textBaseLineOffset = (fontMetrics.bottom - fontMetrics.top) / 2 - fontMetrics.bottom;
canvas.drawText("%", mWidth / 2, mHeight / 2 + radius / 3 + textBaseLineOffset, paintText);

/*绘制百分比*/
paintText.setTextSize(mHeight * 3 / 8);
canvas.drawText("" + (int)(percent*mDecelerateInterpolator.getInterpolation(1.0f * curTime / duration)), mWidth / 2, mHeight / 2, paintText);
/*20毫秒后执行动画*/
mHandler.postDelayed(mAnimation, 20);
}
}
