SpringCloud零基础上手(四)——服务发现以及Feign(声明式RESTful服务调用)
2017-11-18 13:57
916 查看
接着上篇的内容,我们再创建一个项目充当服务消费者,命名为pf-font,如果pf-login视为后端,那么pf-font 就是前端,达到前后端分离的目的。

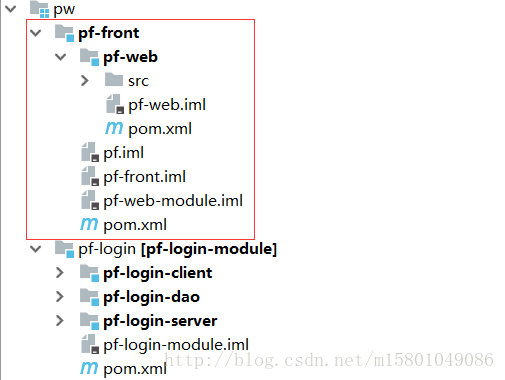

一、pf-front目录结构
pf-front同样是一个多模块项目,尽管它目前只有一个模块——pf-web,方便后面扩展其他模块。
二、结构组成
1、pf-font的pom.xml
2、pf-web的pom.xml
三、pf-web
1、启动类
这里我使用
@EnableFeignClients开启了对Feign的支持 。
当我们在classpath中配置了eureka,
2、配置文件application.yml
这个配置不难看懂,Eureka的配置项中,我们将pf-web自身也注册到了注册中心。
现在启动Eureka Server 和 pf-web ,我们在注册中心的页面可以得到验证 。
四、使用Feign 调用 pf-login 的接口
1、在pf-web中定义Feign的调用接口
2、写一个测试类Controller
3、补充 一个参数映射类UserVo用于封装从服务端请求来的参数。
4、测试
逐个启动所需项目,Eureka Server、pf-login、pf-web。
使用postman ,请求 http://localhost:8680/searchByName/libin
结果:
{
“id”: 10,
“name”: “libin”,
“nickName”: null,
“password”: “123456”,
“age”: 18,
“sex”: null
}
和上一篇我们直接调用server,所获取的结果完全一致。
一、pf-front目录结构
pf-front同样是一个多模块项目,尽管它目前只有一个模块——pf-web,方便后面扩展其他模块。
二、结构组成
1、pf-font的pom.xml
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>cn.pw</groupId> <artifactId>pf-front</artifactId> <version>1.0-SNAPSHOT</version> <packaging>pom</packaging> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> <spring-cloud.version>Dalston.SR4</spring-cloud.version> <fastjson-version>1.2.15</fastjson-version> </properties> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>1.5.8.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-eureka</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> </dependency> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-feign</artifactId> </dependency> <dependency> <groupId>com.alibaba</groupId> <artifactId>fastjson</artifactId> <version>${fastjson-version}</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-thymeleaf</artifactId> </dependency> </dependencies> <dependencyManagement> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-dependencies</artifactId> <version>${spring-cloud.version}</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencyManagement> <modules> <module>pf-web</module> </modules> </project>
2、pf-web的pom.xml
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>cn.pw</groupId> <artifactId>pf-front</artifactId> <version>1.0-SNAPSHOT</version> </parent> <artifactId>pf-web</artifactId> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>
三、pf-web
1、启动类
package cn.pw.platform.web; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.cloud.client.discovery.EnableDiscoveryClient; import org.springframework.cloud.netflix.feign.EnableFeignClients; @SpringBootApplication @EnableFeignClients @EnableDiscoveryClient public class WebApplication { public static void main(String[] args) { SpringApplication.run(WebApplication.class, args); } }
这里我使用
@EnableDiscoveryClient而没有使用
@EnableEurekaClient,因为后者只能为Eureka作用,而前者则依赖于classpath中的实现,也就是说
@EnableDiscoveryClient有多种实现,如eureka, consul, zookeeper,我们需要在application.yml中指定具体的实现。
@EnableFeignClients开启了对Feign的支持 。
当我们在classpath中配置了eureka,
@EnableDiscoveryClient和
@EnableEurekaClient作用是一样的。
2、配置文件application.yml
server: port: 8680 spring: thymeleaf: mode: HTML5 encoding: utf-8 content-type: text/html cache: false application: name: pf-web eureka: client: service-url: default-zone: http://127.0.0.1:8761/eureka/ instance: instance-id: ${spring.cloud.client.ipAddress}:{server.port} prefer-ip-address: true
这个配置不难看懂,Eureka的配置项中,我们将pf-web自身也注册到了注册中心。
现在启动Eureka Server 和 pf-web ,我们在注册中心的页面可以得到验证 。
四、使用Feign 调用 pf-login 的接口
1、在pf-web中定义Feign的调用接口
package cn.pw.platform.web.feign; import cn.pw.platform.web.vo.UserVo; import org.springframework.cloud.netflix.feign.FeignClient; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.PathVariable; import org.springframework.web.bind.annotation.PostMapping; import org.springframework.web.bind.annotation.RequestBody; @FeignClient(name="pf-login-server") public interface LoginClient { @GetMapping("/selectUserByName/{userName}") UserVo selectUserByName(@PathVariable("userName") String userName); @PostMapping("/user/add") UserVo addUser(@RequestBody UserVo userVo); }
@FeignClient(name="pf-login-server")指明了要调用的服务名,接口中定义的方法要符合被调服务的接口要求。
2、写一个测试类Controller
pack 9a9e age cn.pw.platform.web.controller; import cn.pw.platform.web.feign.LoginClient; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Controller; import org.springframework.validation.BindingResult; import org.springframework.web.bind.annotation.*; @Controller public class LoginController { @Autowired private LoginClient loginClient; @GetMapping("/searchByName/{name}") @ResponseBody public UserVo searchByName(@PathVariable("name") String name){ return loginClient.selectUserByName(name); } }
3、补充 一个参数映射类UserVo用于封装从服务端请求来的参数。
public class UserVo { private Long id; private String name; private String nickName; private String password; private Integer age; private Integer sex; //...省略getter setter方法 }
4、测试
逐个启动所需项目,Eureka Server、pf-login、pf-web。
使用postman ,请求 http://localhost:8680/searchByName/libin
结果:
{
“id”: 10,
“name”: “libin”,
“nickName”: null,
“password”: “123456”,
“age”: 18,
“sex”: null
}
和上一篇我们直接调用server,所获取的结果完全一致。
