引言
上次分享Apriori算法时,我们有提到Apriori算法在每次增加频繁项集的大小时,会重新扫描整个数据集。当数据集很大时,这会显著降低频繁项集发现的速度。而本次分享的FP-growth(frequent patten)算法就能高效地发现频繁项集。那么在现实生活中,是否存在应用FP-growth算法的产品呢?答案是存在的,如下图所示:
上图中,我们在Google搜索引擎里输入why这个单词,搜索引擎会自动给我们一些推荐查询词项,这些查询词项来自互联网上经常出现的词对。查找的方法正是接下来我们要分享的FP-growth算法。
FP-growth与Apriori的区别
我们先从宏观上来看看两个算法的区别:FP-growth算法只需要对数据库进行两次扫描,而Apriori算法对每个潜在的频繁项集都会扫描数据集判定给定模式是否频繁,因此FP-growth算法的速度要比Apriori算法快。在小规模数据集上,这不是什么问题,但当处理更大数据集时,FP-growth通常性能要比Apriori好两个数量级以上。
Apriori是发现频繁项集与关键规则的算法,但是FP-growth并不能用于发现关联规则。
FP-growth基本流程
FP-growth只会扫描数据集两次,它在发现频繁项集的基本过程如下:1.构建FP树
2.从FP树中挖掘频繁项集
FP树

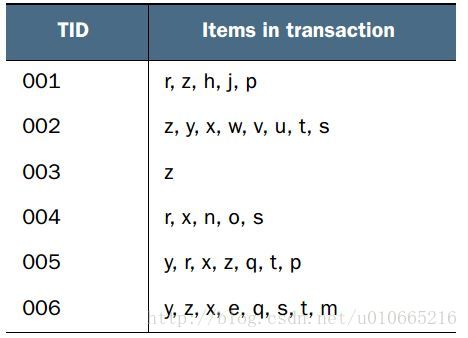

我们先来看个例子,下图有一份数据样例:移除非频繁项后的数据样例:

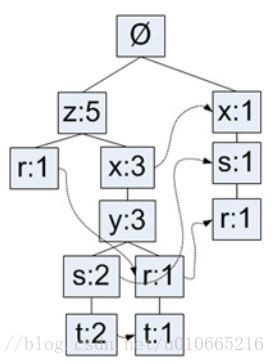

这份数据左侧代表事务ID,右侧代表事务中的元素项。那么根据上述数据样例生成的FP树如下所示:
与搜索树不同的是,一个元素项可以在一棵FP树中出现多次。其中树节点给出的是集合中单个元素及其在序列中的出现次数,路径会给出该序列出现的次数。带箭头的链接叫做节点链接,表示相似项之间的链接。
构建FP树的工作流程
那么我们来详细说下该算法的工作流程。为构建FP树,需要对原始数据集扫描两遍。第一遍对所有元素项的出现次数进行计数。并应用上次分享的Apriori原理,如果某个元素是不频繁的,那么包含该元素的超集也是不频繁的,所以不需要考虑这些超集。因此数据集的第一次扫描是用来统计元素出现的频率的。第二次扫描就只考虑剩余的频繁元素。
因此FP树构建部分流程如下所示:
构建FP树
第二次扫描FP树就需要构建FP树了。因为FP树比较复杂,因此创建一个类来实现保存树的每个节点。代码如下:
class treeNode: def __init__(self, nameValue, numOccur, parentNode): self.name = nameValue self.count = numOccur self.nodeLink = None self.parent = parentNode #needs to be updated self.children = {} def inc(self, numOccur): self.count += numOccur def disp(self, ind=1): print(' '*ind, self.name, ' ', self.count) for child in self.children.values(): child.disp(ind+1)
上面的程序给出了FP树种节点的类的定义。

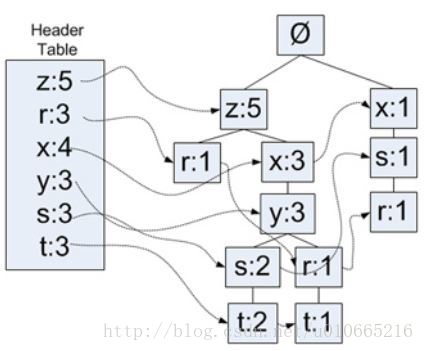

除了上图FP树之外,还需要建立一个头指针表用来快速访问FP树中一个给定类型的所有元素。如下图所示:
上图中的Header Table即头指针表,这里使用一个字典来作为数据结构存储头指针表。
接下来第二次扫描数据集并构建FP树之前,需要将每个集合的元素进行排序,从而保证相同项只会表现一次。
FP构建函数如下所示:
def createTree(dataSet, minSup=1): #create FP-tree from dataset but don't mine headerTable = {} #go over dataSet twice for trans in dataSet:#first pass counts frequency of occurance for item in trans: headerTable[item] = headerTable.get(item, 0) + dataSet[trans] for k in headerTable.keys(): #remove items not meeting minSup if headerTable[k] < minSup: del(headerTable[k]) freqItemSet = set(headerTable.keys()) #print 'freqItemSet: ',freqItemSet if len(freqItemSet) == 0: return None, None #if no items meet min support -->get out for k in headerTable: headerTable[k] = [headerTable[k], None] #reformat headerTable to use Node link 4000 #print 'headerTable: ',headerTable retTree = treeNode('Null Set', 1, None) #create tree for tranSet, count in dataSet.items(): #go through dataset 2nd time localD = {} for item in tranSet: #put transaction items in order if item in freqItemSet: localD[item] = headerTable[item][0] if len(localD) > 0: orderedItems = [v[0] for v in sorted(localD.items(), key=lambda p: p[1], reverse=True)] updateTree(orderedItems, retTree, headerTable, count)#populate tree with ordered freq itemset return retTree, headerTable #return tree and header table def updateTree(items, inTree, headerTable, count): if items[0] in inTree.children:#check if orderedItems[0] in retTree.children inTree.children[items[0]].inc(count) #incrament count else: #add items[0] to inTree.children inTree.children[items[0]] = treeNode(items[0], count, inTree) if headerTable[items[0]][1] == None: #update header table headerTable[items[0]][1] = inTree.children[items[0]] else: updateHeader(headerTable[items[0]][1], inTree.children[items[0]]) if len(items) > 1:#call updateTree() with remaining ordered items updateTree(items[1::], inTree.children[items[0]], headerTable, count) def updateHeader(nodeToTest, targetNode): #this version does not use recursion while (nodeToTest.nodeLink != None): #Do not use recursion to traverse a linked list! nodeToTest = nodeToTest.nodeLink nodeToTest.nodeLink = targetNode
上述代码中包含三个函数。第一个函数createTree()是用来构建FP树。可以从代码中看到两个嵌套for循环代表遍历数据集两次。updateTree()及updateHeader()都是用来更新FP树及头指针表的。
实验结果如下:
simpDat = fpGrowth.loadSimpDat() simpDat
[['r', 'z', 'h', 'j', 'p'], ['z', 'y', 'x', 'w', 'v', 'u', 't', 's'], ['z'], ['r', 'x', 'n', 'o', 's'], ['y', 'r', 'x', 'z', 'q', 't', 'p'], ['y', 'z', 'x', 'e', 'q', 's', 't', 'm']]
initSet = fpGrowth.createInitSet(simpDat) initSet
{frozenset({'z'}): 1, frozenset({'h', 'j', 'p', 'r', 'z'}): 1, frozenset({'s', 't', 'u', 'v', 'w', 'x', 'y', 'z'}): 1, frozenset({'n', 'o', 'r', 's', 'x'}): 1, frozenset({'p', 'q', 'r', 't', 'x', 'y', 'z'}): 1, frozenset({'e', 'm', 'q', 's', 't', 'x', 'y', 'z'}): 1}
importlib.reload(fpGrowth) myFPtree,myHeaderTab = fpGrowth.createTree(initSet,3) myFPtree.disp()
Null Set 1 z 5 r 1 x 3 s 2 t 2 y 2 t 1 r 1 y 1 x 1 s 1 r 1
从一棵FP树中挖掘出频繁项集
这里挖掘频繁项集的思路与Apriori算法类似,首先从单元素项开始,然后在此基础上逐步构建更大的集合。因为整个挖掘频繁项集的过程是围绕FP树进行的,因此不再需要原始数据集了。从FP树中抽取频繁项集的三个基本步骤如下:
从FP树中获得条件模式基;
利用条件模式基,构建一个条件FP树;
迭代重复步骤(1)步骤(2),直到树包含一个元素项为止。
条件模式基

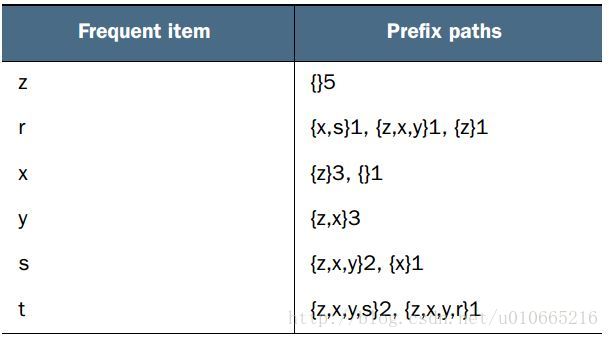

条件模式基是以所查找元素项为结尾的路径集合。每一条路径其实都是一条前缀路径。下图给出了每个频繁项的所有前缀路径。从上图我们可以发现获得前缀路径的方式:利用先前创建的头指针,来遍历并回溯。
条件FP树
对于每一个频繁项,都要创建一棵条件FP树。然后在构建条件FP的过程中,再将不满足最小支持度的元素项去掉。具体代码如下:def mineTree(inTree, headerTable, minSup, preFix, freqItemList): bigL = [v[0] for v in sorted(headerTable.items(), key=lambda p: p[1])]#(sort header table) for basePat in bigL: #start from bottom of header table newFreqSet = preFix.copy() newFreqSet.add(basePat) #print 'finalFrequent Item: ',newFreqSet #append to set freqItemList.append(newFreqSet) condPattBases = findPrefixPath(basePat, headerTable[basePat][1]) #print 'condPattBases :',basePat, condPattBases #2. construct cond FP-tree from cond. pattern base myCondTree, myHead = createTree(condPattBases, minSup) #print 'head from conditional tree: ', myHead if myHead != None: #3. mine cond. FP-tree #print 'conditional tree for: ',newFreqSet #myCondTree.disp(1) mineTree(myCondTree, myHead, minSup, newFreqSet, freqItemList)
运行效果:
importlib.reload(fpGrowth) myFPtree,myHeaderTab = fpGrowth.createTree(initSet,3) myFPtree.disp()
Null Set 1 z 5 r 1 x 3 s 2 t 2 y 2 t 1 r 1 y 1 x 1 s 1 r 1
importlib.reload(fpGrowth) freqItems = [] fpGrowth.mineTree(myFPtree,myHeaderTab,3,set([]),freqItems)
finalFrequent Item: {'r'} condPattBases : r {frozenset({'z'}): 1, frozenset({'x', 's'}): 1, frozenset({'t', 'x', 'z'}): 1} head from conditional tree: None finalFrequent Item: {'s'} condPattBases : s {frozenset({'x', 'z'}): 2, frozenset({'x'}): 1} head from conditional tree: {'x': [3, <fpGrowth.treeNode object at 0x000001DEEEFA65C0>]} conditional tree for: {'s'} Null Set 1 x 3 finalFrequent Item: {'x', 's'} condPattBases : x {} head from conditional tree: None finalFrequent Item: {'t'} condPattBases : t {frozenset({'x', 'z', 's'}): 2, frozenset({'x', 'z'}): 1} head from conditional tree: {'x': [3, <fpGrowth.treeNode object at 0x000001DEEEFA0240>], 'z': [3, <fpGrowth.treeNode object at 0x000001DEEEFA0278>]} conditional tree for: {'t'} Null Set 1 x 3 z 3 finalFrequent Item: {'t', 'x'} condPattBases : x {} head from conditional tree: None finalFrequent Item: {'t', 'z'} condPattBases : z {frozenset({'x'}): 3} head from conditional tree: {'x': [3, <fpGrowth.treeNode object at 0x000001DEEEFA5128>]} conditional tree for: {'t', 'z'} Null Set 1 x 3 finalFrequent Item: {'t', 'x', 'z'} condPattBases : x {} head from conditional tree: None finalFrequent Item: {'x'} condPattBases : x {frozenset({'z'}): 3} head from conditional tree: {'z': [3, <fpGrowth.treeNode object at 0x000001DEEEFA5358>]} conditional tree for: {'x'} Null Set 1 z 3 finalFrequent Item: {'x', 'z'} condPattBases : z {} head from conditional tree: None finalFrequent Item: {'y'} condPattBases : y {frozenset({'t', 'x', 'z', 's'}): 2, frozenset({'t', 'x', 'z', 'r'}): 1} head from conditional tree: {'t': [3, <fpGrowth.treeNode object at 0x000001DEEEFA5F28>], 'x': [3, <fpGrowth.treeNode object at 0x000001DEEEFA5F60>], 'z': [3, <fpGrowth.treeNode object at 0x000001DEEEFA5F98>]} conditional tree for: {'y'} Null Set 1 t 3 x 3 z 3 finalFrequent Item: {'t', 'y'} condPattBases : t {} head from conditional tree: None finalFrequent Item: {'y', 'x'} condPattBases : x {frozenset({'t'}): 3} head from conditional tree: {'t': [3, <fpGrowth.treeNode object at 0x000001DEEEFB4080>]} conditional tree for: {'y', 'x'} Null Set 1 t 3 finalFrequent Item: {'t', 'y', 'x'} condPattBases : t {} head from conditional tree: None finalFrequent Item: {'y', 'z'} condPattBases : z {frozenset({'t', 'x'}): 3} head from conditional tree: {'t': [3, <fpGrowth.treeNode object at 0x000001DEEEFB4C50>], 'x': [3, <fpGrowth.treeNode object at 0x000001DEEEFB4C88>]} conditional tree for: {'y', 'z'} Null Set 1 t 3 x 3 finalFrequent Item: {'t', 'y', 'z'} condPattBases : t {} head from conditional tree: None finalFrequent Item: {'y', 'z', 'x'} condPattBases : x {frozenset({'t'}): 3} head from conditional tree: {'t': [3, <fpGrowth.treeNode object at 0x000001DEEEF8C860>]} conditional tree for: {'y', 'z', 'x'} Null Set 1 t 3 finalFrequent Item: {'t', 'y', 'z', 'x'} condPattBases : t {} head from conditional tree: None finalFrequent Item: {'z'} condPattBases : z {} head from conditional tree: None
总结
FP-growth算法是一种发现数据集中频繁模式的有效方法。可以使用FP-growth在多种文档中查找频繁单词。频繁项集的生成有着许多应用,比如购物交易、医学诊断及大气研究等。相关文章推荐
