使用CSS和Js实现时钟效果
2017-07-13 15:12
756 查看
通过div和CSS构建时钟的表盘和指针
通过CSS动画实现指针跳动效果
通过js获取时间,并设置初始值

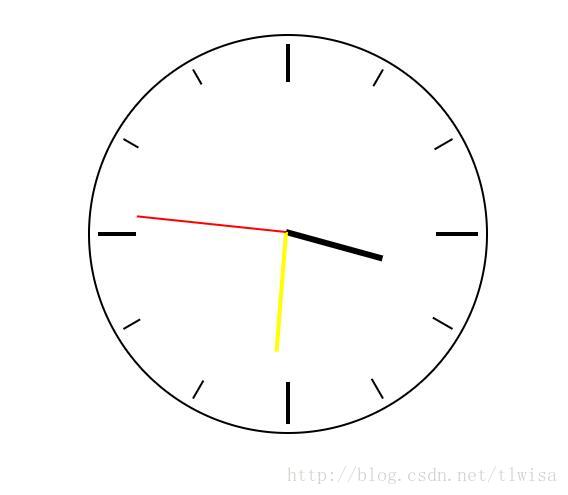

效果如图所示:
具体代码如下
通过CSS动画实现指针跳动效果
通过js获取时间,并设置初始值
效果如图所示:
具体代码如下
<!DOCTYPE html> <html lang="en"> <head> <meta charset="utf-8" /> <title> 使用CSS和Js实现时钟 </title> <style> .clock{width:400px;height:400px;margin:200px auto;position:relative;} .clock_pan{width:396px;height:396px;border:2px solid #000;border-radius:50%;position:absolute;top:2px;left:2px;} .clock_ge{height:380px;background:#000;position:absolute;top:8px;left:50%;transform-origin:0 50%;} .clock_ge-0{width:4px;transform:rotate(0deg) translateX(-50%);z-index:2;} .clock_ge-1{width:2px;transform:rotate(30deg) translateX(-50%);} .clock_ge-2{width:2px;transform:rotate(60deg) translateX(-50%);} .clock_ge-3{width:4px;transform:rotate(90deg) translateX(-50%);z-index:2;} .clock_ge-4{width:2px;transform:rotate(120deg)translateX(-50%);} .clock_ge-5{width:2px;transform:rotate(150deg) translateX(-50%);} .clock_short{position:absolute;width:340px;height:340px;background:#fff;border-radius:50%;top:30px;left:30px;} .clock_long{position:absolute;width:300px;height:300px;background:#fff;border-radius:50%;top:50px;left:50px;z-index:3;} .clock_zhen{position:absolute;z-index:4;top:50%;left:50%;transform-origin:50% 100%;} /* 通过设置animation-duration的不同时间,达到不同指针的效果*/ .clock_hour{width:6px;height:100px;background:#000;animation:clockrotate 43200s linear infinite;} .clock_minute{width:4px;height:120px;background:#ff0;animation:clockrotate 3600s linear infinite;} /* 通过animation-timing-function:steps(60,start) 达到秒针跳动的效果 */ .clock_second{width:2px;height:150px;background:#f00;animation:clockrotate 60s steps(60,start) infinite;} @keyframes clockrotate{ 0%{transform:translate(-50%,-100%) rotate(0deg);} 100%{transform:translate(-50%,-100%) rotate(360deg);} } </style> </head> <body> <div class="clock"> <!-- 构建表盘 --> <div class="clock_pan"> <!-- 设置刻度 --> <div class="clock_ge clock_ge-0"> </div> <div class="clock_ge clock_ge-1"> </div> <div class="clock_ge clock_ge-2"> </div> <div class="clock_ge clock_ge-3"> </div> <div class="clock_ge clock_ge-4"> </div> <div class="clock_ge clock_ge-5"> </div> </div> <!-- 通过2层遮盖,设置表盘上的刻度 --> <div class="clock_short"> </div> <div class="clock_long"> </div> <!-- /构建表盘 --> <!-- 构建指针 --> <div class="clock_zhen clock_hour"> </div> <div class="clock_zhen clock_minute"> </div> <div class="clock_zhen clock_second"> </div> <!-- /构建指针 --> </div> <script> //通过Date()对象获取当前时间 var odate = new Date(); var seconds = odate.getSeconds(); var miniutes = odate.getMinutes(); var hour = odate.getHours(); //通过设置animation-delay为负值,使动画马上开始,跳过设置秒数进入动画。 document.querySelector('.clock_hour').style.animationDelay = -(hour * 3600 + miniutes * 60 + seconds) + 's'; document.querySelector('.clock_minute').style.animationDelay = -(miniutes * 60 + seconds) + 's'; document.querySelector('.clock_second').style.animationDelay = -(seconds) + 's'; </script> </body> </html>
