activeMQ实例在项目中的运用【项目实战系列】

1.下载ActiveMQ

去官方网站下载：http://activemq.apache.org/

2.运行ActiveMQ

解压缩apache-activemq-5.14.0-bin.zip，然后双击apache-activemq-5.14.0\bin\activemq.bat运行ActiveMQ程序。

启动ActiveMQ以后，登陆：http://localhost:8161/admin/ ,账户和密码都是admin,然后可以自己添加一个Queue，这次项目

我们通过代码创建一个Queue.

好了，activeMQ就已经完成了部署，那么怎么把他运用到我们项目中呢，下面我就给大家介绍一下。

[align=left] [/align]

首先来看下我这个项目的整个目录结构，总共分为3个子项目，domain项目用于存放公共的实体类和工具类，打包成jar包供

其他2个包使用。Service项目则是activeMQ的提供者或者说是生产者，这里主要是配置activeMQ的生成方式和创建Queue，

那么剩下来的client项目当然就是MQ的使用者或者说是消费者了，那边产生消息，这边消费消息。那我们来看看具体的代码

吧。

首先介绍domain的项目，这个项目里面主要定义了三种实体类，User.java Client.java News.java 只是用于测试而已，

那就随便看其中一个就好了，User.java

[java] view plain copy print?package com.lwl.activemq.domain;

import java.io.Serializable;
/**
* 用户测试类
* @author Administrator
*
*/
public class User implements Serializable{

private static final long serialVersionUID = 1L;

private long id;

private String username;

private String password;

private String sex;

private int age;

public long getId() {
return id;
}

public void setId(long id) {
this.id = id;
}

public String getUsername() {
return username;
}

public void setUsername(String username) {
this.username = username;
}

public String getPassword() {
return password;
}

public void setPassword(String password) {
this.password = password;
}

public String getSex() {
return sex;
}

public void setSex(String sex) {
this.sex = sex;
}

public int getAge() {
return age;
}

public void setAge(int age) {
this.age = age;
}

@Override
public String toString() {
return “User [id=” + id + “, username=” + username + “, password=”
+ password + ”, sex=” + sex + “, age=” + age + “]”;
}
}

package com.lwl.activemq.domain;

import java.io.Serializable;
/**
* 用户测试类
* @author Administrator
*
*/
public class User implements Serializable{

private static final long serialVersionUID = 1L;

private long id;

private String username;

private String password;

private String sex;

private int age;

public long getId() {
return id;
}

public void setId(long id) {
this.id = id;
}

public String getUsername() {
return username;
}

public void setUsername(String username) {
this.username = username;
}

public String getPassword() {
return password;
}

public void setPassword(String password) {
this.password = password;
}

public String getSex() {
return sex;
}

public void setSex(String sex) {
this.sex = sex;
}

public int getAge() {
return age;
}

public void setAge(int age) {
this.age = age;
}

@Override
public String toString() {
return "User [id=" + id + ", username=" + username + ", password="
+ password + ", sex=" + sex + ", age=" + age + "]";
}
}

domain项目添加好这3个实体类，就把这个项目通过maven打包成jar供其他2个项目使用即可。

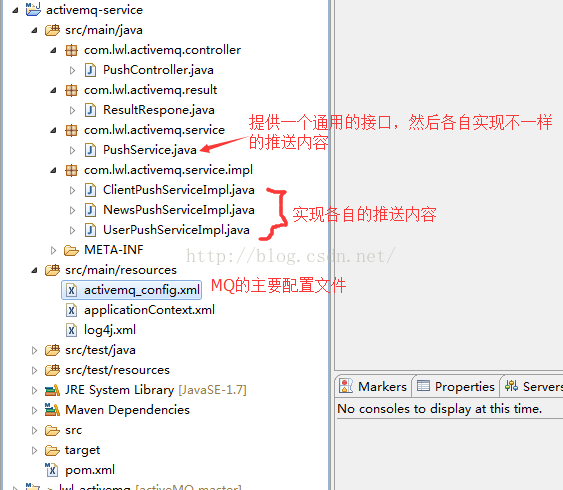

那接下来我们来看下service项目的代码结构吧：

[align=left] [/align]

首先我们来看一下最主要的MQ的配置文件：

[html] view plain copy print?<?xml version=“1.0” encoding=“UTF-8”?>
<beans xmlns=“http://www.springframework.org/schema/beans”
xmlns:xsi=“http://www.w3.org/2001/XMLSchema-instance” xmlns:context=“http://www.springframework.org/schema/context”
xmlns:jms=“http://www.springframework.org/schema/jms”
xsi:schemaLocation=”http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/jms http://www.springframework.org/schema/jms/spring-jms-3.0.xsd”>
<!– 这里暴露内部统一使用的MQ地址 –>
<bean id=“internalTargetConnectionFactory” class=“org.apache.activemq.ActiveMQConnectionFactory”>
<property name=“brokerURL” value=“tcp://localhost:61616” />
</bean>
<bean id=“internalConnectionFactory” class=“org.apache.activemq.pool.PooledConnectionFactory”
destroy-method=“stop”>
<property name=“connectionFactory” ref=“internalTargetConnectionFactory” />
<property name=“maxConnections” value=“20” />
</bean>
<!– Spring提供的JMS工具类，它可以进行消息发送、接收等 –>
<bean id=“internalJmsTemplate” class=“org.springframework.jms.core.JmsTemplate”>
<property name=“connectionFactory” ref=“internalConnectionFactory” />
</bean>

<!– 推送给用户信息 创建一个Queue–>
<bean id=“userServiceQueue” class=“org.apache.activemq.command.ActiveMQQueue”>
<constructor-arg>
<value>user.service.queue</value>
</constructor-arg>
</bean>
<!– 推送给新闻信息 创建一个Queue–>
<bean id=“newsServiceQueue” class=“org.apache.activemq.command.ActiveMQQueue”>
<constructor-arg>
<value>news.service.queue</value>
</constructor-arg>
</bean>
<!– 推送给客户信息 创建一个Queue–>
<bean id=“clientServiceQueue” class=“org.apache.activemq.command.ActiveMQQueue”>
<constructor-arg>
<value>client.service.queue</value>
</constructor-arg>
</bean>

</beans>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
xmlns:jms="http://www.springframework.org/schema/jms"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/jms http://www.springframework.org/schema/jms/spring-jms-3.0.xsd">
<!-- 这里暴露内部统一使用的MQ地址 -->
<bean id="internalTargetConnectionFactory" class="org.apache.activemq.ActiveMQConnectionFactory">
<property name="brokerURL" value="tcp://localhost:61616" />
</bean>
<bean id="internalConnectionFactory" class="org.apache.activemq.pool.PooledConnectionFactory"
destroy-method="stop">
<property name="connectionFactory" ref="internalTargetConnectionFactory" />
<property name="maxConnections" value="20" />
</bean>
<!-- Spring提供的JMS工具类，它可以进行消息发送、接收等 -->
<bean id="internalJmsTemplate" class="org.springframework.jms.core.JmsTemplate">
<property name="connectionFactory" ref="internalConnectionFactory" />
</bean>

<!-- 推送给用户信息  创建一个Queue-->
<bean id="userServiceQueue" class="org.apache.activemq.command.ActiveMQQueue">
<constructor-arg>
<value>user.service.queue</value>
</constructor-arg>
</bean>
<!-- 推送给新闻信息   创建一个Queue-->
<bean id="newsServiceQueue" class="org.apache.activemq.command.ActiveMQQueue">
<constructor-arg>
<value>news.service.queue</value>
</constructor-arg>
</bean>
<!-- 推送给客户信息   创建一个Queue-->
<bean id="clientServiceQueue" class="org.apache.activemq.command.ActiveMQQueue">
<constructor-arg>
<value>client.service.queue</value>
</constructor-arg>
</bean>

</beans>

那我们看下怎么运用定义的这个配置文件呢？
首先我们定义一个通用的推送接口PushService.Java
[java] view plain copy print?package com.lwl.activemq.service; import java.util.concurrent.ExecutorService; import java.util.concurrent.Executors; /** * 推送的接口 * @author Administrator * @create 2016-8-10 下午3:41:03 * @version 1.0 */ public interface PushService { public final ExecutorService pushExecutor = Executors.newFixedThreadPool(10); public void push(Object info); }

package com.lwl.activemq.service;

import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;

/**
* 推送的接口
* @author Administrator
* @create 2016-8-10 下午3:41:03
* @version 1.0
*/
public interface PushService {

public final ExecutorService pushExecutor = Executors.newFixedThreadPool(10);

public void push(Object info);

}

然后又实现了3中不同的推送内容：ClientPushServiceImpl.java NewsPushServiceImpl.java UserPushServiceImpl.java
就拿其中的一个来举例，其他2个模式是一样的
[java] view plain copy print?package com.lwl.activemq.service.impl;

import javax.jms.Destination;
import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.Session;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Service;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.jms.core.MessageCreator;

import com.alibaba.fastjson.JSON;
import com.lwl.activemq.domain.User;
import com.lwl.activemq.service.PushService;

@Service(“userPushService”)
public class UserPushServiceImpl implements PushService {

@Autowired
private JmsTemplate jmsTemplate;

/**
* 这里是根据MQ配置文件定义的queue来注入的，也就是这里将会把不同的内容推送到不同的queue中
*/
@Autowired
@Qualifier(“userServiceQueue”)
private Destination destination;

@Override
public void push(final Object info) {
pushExecutor.execute(new Runnable() {
@Override
public void run() {
jmsTemplate.send(destination, new MessageCreator() {
public Message createMessage(Session session) throws JMSException {
User p = (User) info;
return session.createTextMessage(JSON.toJSONString(p));
}
});
}
});
}

}

package com.lwl.activemq.service.impl;

import javax.jms.Destination;
import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.Session;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Service;
import org.springframework.jms.core.JmsTemplate;
import org.springframework.jms.core.MessageCreator;

import com.alibaba.fastjson.JSON;
import com.lwl.activemq.domain.User;
import com.lwl.activemq.service.PushService;

@Service("userPushService")
public class UserPushServiceImpl implements PushService {

@Autowired
private JmsTemplate jmsTemplate;

/**
* 这里是根据MQ配置文件定义的queue来注入的，也就是这里将会把不同的内容推送到不同的queue中
*/
@Autowired
@Qualifier("userServiceQueue")
private Destination destination;

@Override
public void push(final Object info) {
pushExecutor.execute(new Runnable() {
@Override
public void run() {
jmsTemplate.send(destination, new MessageCreator() {
public Message createMessage(Session session) throws JMSException {
User p = (User) info;
return session.createTextMessage(JSON.toJSONString(p));
}
});
}
});
}

}

接口也已经实现好了，剩下的就是看我们怎么调用它了，那我们看看控制器吧：
[java] view plain copy print?package com.lwl.activemq.controller;

import javax.annotation.Resource;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

import com.lwl.activemq.domain.Client;
import com.lwl.activemq.domain.News;
import com.lwl.activemq.domain.User;
import com.lwl.activemq.result.ResultRespone;
import com.lwl.activemq.service.PushService;

@Controller
@RequestMapping(“/push”)
public class PushController {

@Resource(name=“userPushService”)
private PushService userPushService;

@Resource(name=“newsPushService”)
private PushService newsPushService;

@Resource(name=“clientPushService”)
private PushService clientPushService;

/**
* 用户推送
* @param info
* @return
* @author Administrator
* @create 2016-8-10 下午4:22:28
*/
@RequestMapping(value=“/user”,method=RequestMethod.POST)
@ResponseBody
public ResultRespone userPush(User info){
ResultRespone respone = new ResultRespone();
try {
userPushService.push(info);
respone.setData(info);
} catch (Exception e) {
e.printStackTrace();
respone = new ResultRespone(false, e.getMessage());
}
return respone;
}

/**
* 新闻推送
* @param info
* @return
* @author Administrator
* @create 2016-8-10 下午4:22:38
*/
@RequestMapping(value=“/news”,method=RequestMethod.POST)
@ResponseBody
public ResultRespone newsPush(News info){
ResultRespone respone = new ResultRespone();
try {
newsPushService.push(info);
respone.setData(info);
} catch (Exception e) {
e.printStackTrace();
respone = new ResultRespone(false, e.getMessage());
}
return respone;
}
/**
* 客户推送
* @param info
* @return
* @author Administrator
* @create 2016-8-10 下午4:22:48
*/
@RequestMapping(value=“/client”,method=RequestMethod.POST)
@ResponseBody
public ResultRespone clientPush(Client info){
ResultRespone respone = new ResultRespone();
try {
clientPushService.push(info);
respone.setData(info);
} catch (Exception e) {
e.printStackTrace();
respone = new ResultRespone(false, e.getMessage());
}
return respone;
}
}

package com.lwl.activemq.controller;

import javax.annotation.Resource;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

import com.lwl.activemq.domain.Client;
import com.lwl.activemq.domain.News;
import com.lwl.activemq.domain.User;
import com.lwl.activemq.result.ResultRespone;
import com.lwl.activemq.service.PushService;

@Controller
@RequestMapping("/push")
public class PushController {

@Resource(name="userPushService")
private PushService userPushService;

@Resource(name="newsPushService")
private PushService newsPushService;

@Resource(name="clientPushService")
private PushService clientPushService;

/**
* 用户推送
* @param info
* @return
* @author Administrator
* @create 2016-8-10 下午4:22:28
*/
@RequestMapping(value="/user",method=RequestMethod.POST)
@ResponseBody
public ResultRespone userPush(User info){
ResultRespone respone = new ResultRespone();
try {
userPushService.push(info);
respone.setData(info);
} catch (Exception e) {
e.printStackTrace();
respone = new ResultRespone(false, e.getMessage());
}
return respone;
}

/**
* 新闻推送
* @param info
* @return
* @author Administrator
* @create 2016-8-10 下午4:22:38
*/
@RequestMapping(value="/news",method=RequestMethod.POST)
@ResponseBody
public ResultRespone newsPush(News info){
ResultRespone respone = new ResultRespone();
try {
newsPushService.push(info);
respone.setData(info);
} catch (Exception e) {
e.printStackTrace();
respone = new ResultRespone(false, e.getMessage());
}
return respone;
}
/**
* 客户推送
* @param info
* @return
* @author Administrator
* @create 2016-8-10 下午4:22:48
*/
@RequestMapping(value="/client",method=RequestMethod.POST)
@ResponseBody
public ResultRespone clientPush(Client info){
ResultRespone respone = new ResultRespone();
try {
clientPushService.push(info);
respone.setData(info);
} catch (Exception e) {
e.printStackTrace();
respone = new ResultRespone(false, e.getMessage());
}
return respone;
}
}

控制器也写好了，剩下的就是前段页面的调用了，那就快来看看吧index.html

[html] view plain copy print?<!DOCTYPE HTML PUBLIC ”-//W3C//DTD HTML 4.01 Transitional//EN” “http://www.w3.org/TR/html4/loose.dtd”>
<html>
<head>
<meta http-equiv=“Content-Type” content=“text/html; charset=UTF-8”>
<meta http-equiv=“X-UA-Compatible” content=“IE=edge”>
<meta name=“viewport” content=“width=device-width, initial-scale=1”>
<script type=“text/javascript” src=“resources/jquery-1.9.1.js”></script>
</head>
<body>
<br/><br/><br/>
用户姓名：<input type=“text” id=“username” />
用户密码：<input type=“text” id=“password” />
用户性别：<input type=“text” id=“sex” />
<input type=“button” value=“推送用户信息” id=“pushUser” />

<br/><br/><br/>
新闻标题：<input type=“text” id=“title” />
新闻内容：<input type=“text” id=“content” />
新闻路径：<input type=“text” id=“url” />
新闻作者：<input type=“text” id=“author” />
<input type=“button” value=“推送新闻信息” id=“pushNews” />

<br/><br/><br/>
客户姓名：<input type=“text” id=“name” />
客户地址：<input type=“text” id=“address” />
客户手机：<input type=“text” id=“mobile” />
<input type=“button” value=“推送客户信息” id=“pushClient” />

<script type=“text/javascript”>
("#pushUser").click(function(){  </span></li><li class="alt"><span>        var <span class="attribute">data</span><span> = {  </span></span></li><li class=""><span>                username : $("#username").val(),  </span></li><li class="alt"><span>                password : $("#password").val(),  </span></li><li class=""><span>                sex      : $("#sex").val()  </span></li><li class="alt"><span>        };  </span></li><li class=""><span>        ajaxDo("/activemq-service/push/user",data);  </span></li><li class="alt"><span>    });  </span></li><li class=""><span>    (“#pushNews”).click(function(){
var data = {
title : ("#title").val(),  </span></li><li class="alt"><span>                content  : (“#content”).val(),
author : ("#author").val(),  </span></li><li class="alt"><span>                url      : (“#url”).val()
};
ajaxDo(“/activemq-service/push/news”,data);
});
("#pushClient").click(function(){  </span></li><li class=""><span>        var <span class="attribute">data</span><span> = {  </span></span></li><li class="alt"><span>                name     : ("#name").val(),  </span></li><li class=""><span>                address  : ("#address").val(),  </span></li><li class="alt"><span>                mobile   : ("#mobile").val()  </span></li><li class=""><span>        };  </span></li><li class="alt"><span>        ajaxDo("/activemq-service/push/client",data);  </span></li><li class=""><span>    });  </span></li><li class="alt"><span>      </span></li><li class=""><span>function ajaxDo(url,data){  </span></li><li class="alt"><span>     $.ajax({
url:url ,
type: “post”,
dataType: “json”,
data: data,
success:function(result){
if(result.success){
var obj = JSON.stringify(result.data);
alert(obj);
}else{
alert(result.msg);
}
}
});
}

</script>

</body>
</html>

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1">
<script type="text/javascript" src="resources/jquery-1.9.1.js"></script>
</head>
<body>
<br/><br/><br/>
用户姓名：<input type="text" id="username" />
用户密码：<input type="text" id="password" />
用户性别：<input type="text" id="sex" />
<input type="button" value="推送用户信息" id="pushUser" />

<br/><br/><br/>
新闻标题：<input type="text" id="title" />
新闻内容：<input type="text" id="content" />
新闻路径：<input type="text" id="url" />
新闻作者：<input type="text" id="author" />
<input type="button" value="推送新闻信息" id="pushNews" />

<br/><br/><br/>
客户姓名：<input type="text" id="name" />
客户地址：<input type="text" id="address" />
客户手机：<input type="text" id="mobile" />
<input type="button" value="推送客户信息" id="pushClient" />

<script type="text/javascript">
$("#pushUser").click(function(){
var data = {
username : $("#username").val(),
password : $("#password").val(),
sex      : $("#sex").val()
};
ajaxDo("/activemq-service/push/user",data);
});
$("#pushNews").click(function(){
var data = {
title    : $("#title").val(),
content  : $("#content").val(),
author   : $("#author").val(),
url      : $("#url").val()
};
ajaxDo("/activemq-service/push/news",data);
});
$("#pushClient").click(function(){
var data = {
name     : $("#name").val(),
address  : $("#address").val(),
mobile   : $("#mobile").val()
};
ajaxDo("/activemq-service/push/client",data);
});

function ajaxDo(url,data){
$.ajax({
url:url ,
type: "post",
dataType: "json",
data: data,
success:function(result){
if(result.success){
var obj = JSON.stringify(result.data);
alert(obj);
}else{
alert(result.msg);
}
}
});
}

</script>

</body>
</html>

现在代码都已经完成了，那就可以启动项目了，启动项目之前首先要启动activeMQ，然后再启动activemq-service项目，

打开浏览器我们就可以模拟推送内容了：



此时在刷新我们的MQ页面你就会发现自动创建好了Queue,而且在User那个里面会有1个消息未被消费掉：



发送端的代码就这样已经完成了，明天将会继续把接收端的代码写出来，并且通过websocket推送到前端显示出来
