Android中的界面布局之帧布局,相对布局
2016-12-25 15:57
429 查看
一、相关知识
1、Android盒模型(与css,html相同)
2、Android坐标系
二、Framelayout
帧布局顾名思义,为一层一层的显示,相互覆盖。如下图
界面代码
3、RelativeLayout
界面代码
朋友圈类似的界面
界面代码

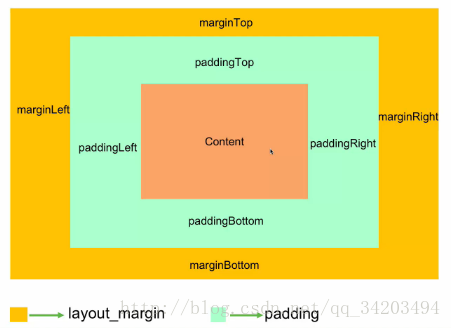

1、Android盒模型(与css,html相同)

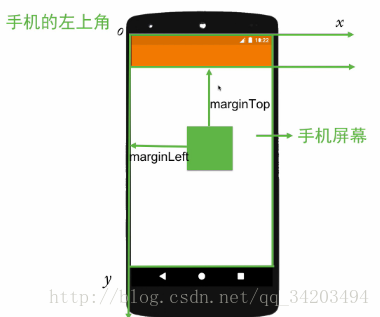

2、Android坐标系
二、Framelayout

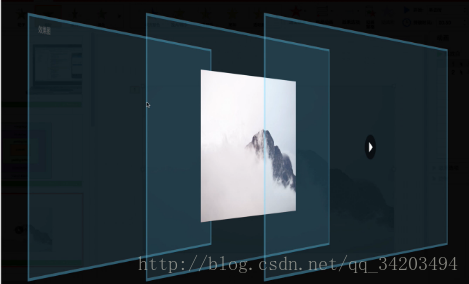

帧布局顾名思义,为一层一层的显示,相互覆盖。如下图
界面代码
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".FrameLayoutActivity"> <View android:layout_width="match_parent" android:background="@color/colorAccent" android:layout_height="match_parent"></View> <View android:layout_width="100dp" android:background="@color/colorPrimary" android:layout_height="100dp"></View> </FrameLayout>
3、RelativeLayout
界面代码
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context="com.netease.study.ui.layout.RelativeLayout1Activity"> <ImageView android:id="@+id/head" android:layout_width="wrap_content" android:layout_centerInParent="true" android:src="@drawable/head" android:layout_height="wrap_content"/> <TextView android:layout_width="wrap_content" android:text="@string/name" android:layout_above="@id/head" android:layout_alignLeft="@id/head" android:layout_height="wrap_content"/> <TextView android:layout_width="wrap_content" android:text="@string/name" android:layout_below="@id/head" android:layout_alignLeft="@id/head" android:layout_height="wrap_content"/> <TextView android:layout_width="wrap_content" android:text="@string/name" android:layout_toRightOf="@id/head" android:layout_alignTop="@id/head" android:layout_height="wrap_content"/> </RelativeLayout>

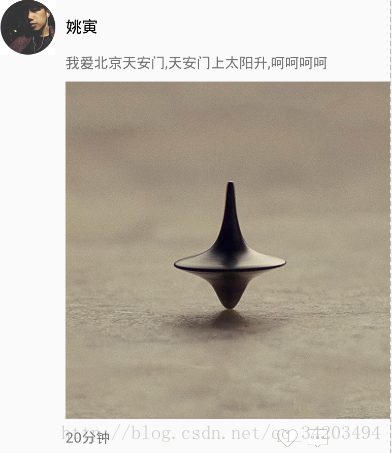

朋友圈类似的界面
界面代码
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context="com.netease.study.ui.layout.RelativeLayout2Activity"> <ImageView android:id="@+id/head" android:layout_width="wrap_content" android:src="@drawable/head1" android:layout_height="wrap_content"/> <TextView android:id="@+id/name" android:layout_toRightOf="@id/head" android:layout_width="wrap_content" android:text="@string/name" android:gravity="center" android:textSize="16sp" android:textColor="@color/black" android:layout_marginLeft="10dp" android:layout_alignTop="@id/head" android:layout_alignBottom="@id/head" android:layout_height="wrap_content"/> <TextView android:id="@+id/desc" android:layout_below="@id/name" android:layout_alignLeft="@id/name" android:layout_width="wrap_content" android:text="@string/desc" android:layout_height="wrap_content"/> <ImageView android:layout_marginTop="10dp" android:id="@+id/toupie" android:layout_width="wrap_content" android:src="@drawable/toupie" android:scaleType="center" android:layout_alignLeft="@id/desc" android:layout_below="@id/desc" android:layout_height="wrap_content"/> <TextView android:layout_marginTop="10dp" android:layout_below="@id/toupie" android:layout_alignLeft="@id/toupie" android:layout_width="wrap_content" android:text="20分钟" android:layout_height="wrap_content"/> <ImageView android:layout_marginTop="10dp" android:id="@+id/comment" android:layout_width="wrap_content" android:layout_alignRight="@id/desc" android:layout_below="@id/toupie" android:src="@drawable/comment" android:layout_height="wrap_content"/> <ImageView android:layout_toLeftOf="@id/comment" android:layout_alignTop="@id/comment" android:layout_marginRight="10dp" android:layout_width="wrap_content" android:src="@drawable/love_icon" android:layout_height="wrap_content"/> </RelativeLayout>
