如何使用Material Design中的BottomSheetBehavior、BottomSheetDialog和BottomSheetDialogFragment

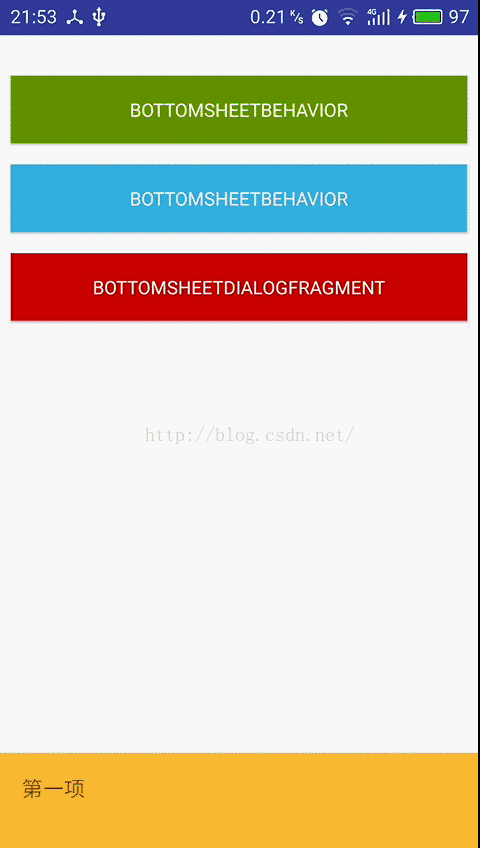

bottom sheet是design包下支持的一个控件，它从页面底部弹出，效果如下：



有两种方式可以实现bottom sheet，第一种是使用BottomSheetBehavior，第二种是使用BottomSheetDialogFragment。因为他们都存在与design支持包中，所以必须要先导入design支持包，支持包最低版本是23.2，我导入的是24.1.0：

compile 'com.android.support:design:24.1.0'

之后同步项目会下载这个支持包。

①使用BottomSheetBehavior实现的布局文件如下：

#bottom_sheet_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:fitsSystemWindows="true">

<ScrollView
android:layout_width="match_parent"
android:layout_height="match_parent"
app:layout_behavior="@string/appbar_scrolling_view_behavior">

<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:paddingTop="24dp">

<Button
android:id="@+id/button_1"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_margin="8dp"
android:background="@android:color/holo_green_dark"
android:padding="16dp"
android:text="Button 1"
android:textColor="@android:color/white" />

<Button
android:id="@+id/button_2"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_margin="8dp"
android:background="@android:color/holo_blue_light"
android:padding="16dp"
android:text="Button 2"
android:textColor="@android:color/white" />

<Button
android:id="@+id/button_3"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_margin="8dp"
android:background="@android:color/holo_red_dark"
android:padding="16dp"
android:text="Button 3"
android:textColor="@android:color/white" />
</LinearLayout>
</ScrollView>

<android.support.v4.widget.NestedScrollView
android:id="@+id/bottom_sheet"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@android:color/holo_orange_light"
android:clipToPadding="true"
app:layout_behavior="android.support.design.widget.BottomSheetBehavior">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<TextView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:padding="16dp"
android:text="第一项"
android:textSize="16sp" />
<TextView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:padding="16dp"
android:text="第二项"
android:textSize="16sp" />
<TextView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:padding="16dp"
android:text="第三项"
android:textSize="16sp" />
</LinearLayout>

</android.support.v4.widget.NestedScrollView>

</android.support.design.widget.CoordinatorLayout>

②使用BottomSheetDialogFragment实现的布局文件以及Java文件如下：

#fragment_bottom_sheet.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="@android:color/holo_purple"
        android:orientation="horizontal">

        <ImageView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_gravity="center"
            android:layout_marginLeft="10dp"
            android:adjustViewBounds="true"
            android:scaleType="centerInside"
            android:src="@mipmap/ic_launcher" />

        <TextView
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:padding="16dp"
            android:text="这是一个BottomSheetDialogFragment"
            android:textColor="@android:color/white"
            android:textSize="16sp" />
    </LinearLayout>

    <ListView
        android:id="@+id/list_view"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="#6636da82" />

</LinearLayout>

Fragment文件：

#TestBottomSheetDialogFragment.java
package com.study.hq.androidnewcomponents.bottom_sheets;

import android.app.Dialog;
import android.support.annotation.NonNull;
import android.support.design.widget.BottomSheetBehavior;
import android.support.design.widget.BottomSheetDialogFragment;
import android.support.design.widget.CoordinatorLayout;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.ListView;

import com.study.hq.androidnewcomponents.R;

/**
 * Created by HeQing on 2016/9/19 0019.
 */
public class TestBottomSheetDialogFragment extends BottomSheetDialogFragment {

    private BottomSheetBehavior.BottomSheetCallback callback =
            new BottomSheetBehavior.BottomSheetCallback() {
                @Override
                public void onStateChanged(@NonNull View bottomSheet, int newState) {
                    if (newState == BottomSheetBehavior.STATE_HIDDEN) {
                        dismiss();
                    }
                }

                @Override
                public void onSlide(@NonNull View bottomSheet, float slideOffset) {

                }
            };

    @Override
    public void setupDialog(Dialog dialog, int style) {
        super.setupDialog(dialog, style);
        View contentView = View.inflate(getContext(), R.layout.fragment_bottom_sheet, null);

        dialog.setContentView(contentView);

        ListView listView = (ListView)contentView.findViewById(R.id.list_view);
        String[] strArray = new String[5];
        for (int i = 0;i < strArray.length;i++){
            strArray[i] = "第"+(i+1)+"项";
        }
        listView.setAdapter(new ArrayAdapter<String>(getContext()
                ,android.R.layout.simple_list_item_1,android.R.id.text1,strArray));

        CoordinatorLayout.LayoutParams params = (CoordinatorLayout.LayoutParams)
                ((View) contentView.getParent()).getLayoutParams();
        CoordinatorLayout.Behavior behavior = params.getBehavior();

        if (behavior != null && behavior instanceof BottomSheetBehavior) {
            ((BottomSheetBehavior) behavior).setBottomSheetCallback(callback);
        }

    }
}

最后创建一个activity文件来使用这两种方式：

#BottomSheetActivity.java
package com.study.hq.androidnewcomponents.bottom_sheets;

import android.os.Bundle;
import android.support.annotation.NonNull;
import android.support.design.widget.BottomSheetBehavior;
import android.support.design.widget.BottomSheetDialogFragment;
import android.support.v4.app.FragmentActivity;
import android.view.View;
import android.widget.Button;

import com.study.hq.androidnewcomponents.R;

/**
* Created by HeQing on 2016/9/19 0019.
*/
public class BottomSheetActivity extends FragmentActivity implements View.OnClickListener{

private BottomSheetBehavior mBottomSheetBehavior;

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.bottom_sheet_layout);

View bottomSheet = findViewById(R.id.bottom_sheet);
Button button1 = (Button) findViewById( R.id.button_1 );
Button button2 = (Button) findViewById( R.id.button_2 );
Button button3 = (Button) findViewById( R.id.button_3 );

button1.setOnClickListener(this);
button2.setOnClickListener(this);
button3.setOnClickListener(this);

mBottomSheetBehavior = BottomSheetBehavior.from(bottomSheet);
mBottomSheetBehavior.setPeekHeight(120);

mBottomSheetBehavior.setBottomSheetCallback(new BottomSheetBehavior.BottomSheetCallback() {
@Override
public void onStateChanged(@NonNull View bottomSheet, int newState) {
if (newState == BottomSheetBehavior.STATE_COLLAPSED) {
mBottomSheetBehavior.setPeekHeight(120);
}
}

@Override
public void onSlide(@NonNull View bottomSheet, float slideOffset) {
mBottomSheetBehavior.setPeekHeight((int)slideOffset);
}
});
}

@Override
public void onClick(View v) {
switch( v.getId() ) {
case R.id.button_1: {
mBottomSheetBehavior.setState(BottomSheetBehavior.STATE_EXPANDED);
break;
}
case R.id.button_2: {
mBottomSheetBehavior.setPeekHeight(120);
mBottomSheetBehavior.setState(BottomSheetBehavior.STATE_COLLAPSED);
break;
}
case R.id.button_3: {
BottomSheetDialogFragment bottomSheetDialogFragment = new TestBottomSheetDialogFragment();
bottomSheetDialogFragment.show(getSupportFragmentManager(), bottomSheetDialogFragment.getTag());
break;
}
}
}
}

以上便是全部代码，比较简单，可以自己试一试。
