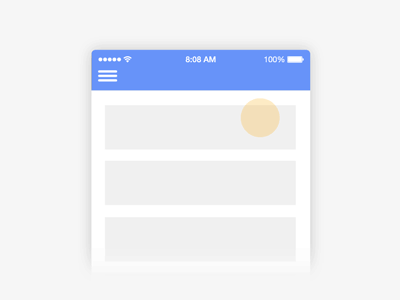

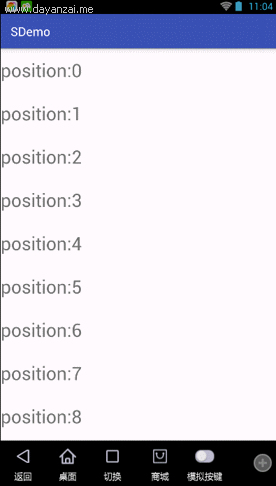

RecycleView刷新 齿轮转动动画效果

public class GearView extends View {
private Context context;
private Paint paint;
private float PI = 3.1415926f;
private int circleGrade = 1;//圆的齿轮个数 9+circleGrade 个
private float gearWidth = 40;
private float gearHeight = 50;
private float length = 60;//弧长
private List<Circle> circles;//存储圆的参数
private Map<Float, Bitmap> bitmaps;//把已经绘制好的bitmap存储起来，循环利用
private int speedArgu = 20;//旋转速度参数
private int viewWidth;//所在view 的宽度
private int viewHeight;//所在view 的高度
private boolean startRotato = true;//是否开始动画
private int r1;
private int r2;
private int r3;
private int r4;
private int r5;

private float fTran = 0;//平移基本数
private float translationArgu = 4.0f;//平移乘数
private float fRotate = 0;//平移后中心旋转基本数
private float transientRotate = 70.0f;//平移后中心旋转乘数
private float scale = 0.001f;//平移后中心缩放 程度
private float scaleBase = 1.0f;//平移后中心缩放基本数

public boolean isStartRotato() {
return startRotato;
}

public void setStartRotato(boolean startRotato) {
this.startRotato = startRotato;
}

public int getSpeedArgu() {
return speedArgu;
}

public void setSpeedArgu(int speedArgu) {
if(speedArgu > 70){
speedArgu = 70;
}
if(speedArgu < 5 && speedArgu > 0){
speedArgu = 5;
}
if(speedArgu < -70){
speedArgu = -70;
}
if(speedArgu <0 && speedArgu > -5){
speedArgu = -5;
}
this.speedArgu = speedArgu;
}

public GearView(Context context) {
super(context);
this.context = context;

init();
}

public GearView(Context context, AttributeSet attrs) {
super(context, attrs);
context = context;
init();
}

public GearView(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
context = context;
init();
}

private void init() {
paint = new Paint();
paint.setAntiAlias(false);
bitmaps = new HashMap<Float, Bitmap>();
circles = new ArrayList<Circle>();

}

@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
super.onSizeChanged(w, h, oldw, oldh);
this.viewHeight = h;
this.viewWidth = w;
initCircle();
}

private void initCircle() {
float centerX = viewWidth/2;
float centerY = viewHeight/2;

//添加圆和设置位置，在此处
4000
添加和修改即可

r1 = 3;
//        float c1Top = centerY-getRaidus(r1) * 2;
float c1Top = centerY-getRaidus(r1) -20;
float c1Left = centerX-getRaidus(r1) * 2;
int color1 = getResources().getColor(R.color.colorGear1);
Circle circle = new Circle(c1Top,c1Left,getRaidus(r1), false,0,0,color1);
circles.add(circle);

r2 = 8;
updataHeight(r2);
float c2Top = c1Top + getRaidus(r2) + gearHeight;
float c2Left = c1Left - getRaidus(r2) - gearHeight;
int color2 = getResources().getColor(R.color.colorGear2);
circle = new Circle(c2Top ,c2Left, getRaidus(r2), true,0,3, color2);
circles.add(circle);

r3 = 18;
updataHeight(r3);
float c3Top = c2Top - getRaidus(r3) -getRaidus(r2) - gearHeight + 5;
float c3Left = c2Left - getRaidus(r3) - getRaidus(r2)- gearHeight + 5;
int color3 = getResources().getColor(R.color.colorGear3);
circle = new Circle(c3Top ,c3Left, getRaidus(r3), false,0,6, color3);
circles.add(circle);

r4 = 11;
updataHeight(r4);
float c4Top = c1Top - getRaidus(r4) - gearHeight - getRaidus(r1);
float c4Left = c1Left + getRaidus(r4) + gearHeight - getRaidus(r1);
int color4 = getResources().getColor(R.color.colorGear4);
circle = new Circle(c4Top ,c4Left, getRaidus(r4), true,0,-5, color4);
circles.add(circle);

r5 = 16;
updataHeight(r5);
float c5Top = c4Top  +getRaidus(r5) + gearHeight + 10 ;
float c5Left = c4Left  + getRaidus(r5)+ gearHeight +10 ;
int color5 = getResources().getColor(R.color.colorGear5);
circle = new Circle(c5Top ,c5Left, getRaidus(r5), false,0,2, color5);
circles.add(circle);

}

/**
* 供外部调用旋转
* */
public void startRotato(float dy){
int speed = (int) (dy * 4);
setSpeedArgu(speed);
startRotato = true;
isTranslation = false;

if((speed < 20 && speed >0) || (speed < 0 && speed > -20)){
speed = 20;
}
if(speed <= -20){
speed = Math.abs(speed);
}
if(speed > 100 || speed < -100){
speed = 100;
}
for(int i = 0;i<speed;i++){
invalidate();
}
}

public void stopRotato(){
startRotato = false;
}

public void startTranslation(){
isTranslation = true;
startRotato = false;
invalidate();
}

/**
* 返回初始化
* */
public void  backInit(){
isTranslation = false;
startRotato = false;
fTran = 0;
bitmaps.clear();
circles.clear();
initCircle();
}

private boolean isTranslation = false;
@Override
protected void onDraw(Canvas canvas) {
canvas.drawColor(this.getResources().getColor(R.color.colorFefreshBg));
if(isTranslation){
translationCircles(canvas);
invalidate();
}

if(startRotato){
for (Circle circle : circles) {
drawCircle(canvas, circle);
}
//            invalidate();
}
}

/*开展平移动画*/
private void translationCircles(Canvas canvas) {

if(bitmaps == null || bitmaps.size() <5){
return;
}
Bitmap bitmap = bitmaps.get(getRaidus(r1));
Matrix matrix = new Matrix();
int offsetX = bitmap.getWidth() / 2;
int offsetY = bitmap.getHeight() / 2;
matrix.postTranslate(-offsetX, -offsetY);
Circle circle = circles.get(0);
circle.setClockwise(true);
fRotate = fRotate + (0.1f * transientRotate);
matrix.postRotate(fRotate);

scale+= 0.001f;
if(scale < 0.01f){
scaleBase += scale;
}
if(scale >0.01f && scale <0.03f){
scaleBase = scaleBase -scale +0.01f;
}
matrix.postScale(scaleBase,scaleBase);

matrix.postTranslate(circle.getLeft() + offsetX, circle.getTop() + offsetY);
canvas.drawBitmap(bitmap,matrix,null);

fTran+=1.0f * translationArgu;
Bitmap bitmap1 = bitmaps.get(getRaidus(r2));
Matrix matrix1 = new Matrix();
Circle circle1 = circles.get(1);
matrix1.postTranslate(circle1.getLeft()-fTran,circle1.getTop()+fTran);
canvas.drawBitmap(bitmap1,matrix1,null);

Bitmap bitmap2 = bitmaps.get(getRaidus(r3));
Matrix matrix2 = new Matrix();
Circle circle2 = circles.get(2);
matrix2.postTranslate(circle2.getLeft()-fTran,circle2.getTop()-fTran);
canvas.drawBitmap(bitmap2,matrix2,null);

Bitmap bitmap3 = bitmaps.get(getRaidus(r4));
Matrix matrix3 = new Matrix();
Circle circle3 = circles.get(3);
matrix3.postTranslate(circle3.getLeft()+fTran,circle3.getTop()-fTran);
canvas.drawBitmap(bitmap3,matrix3,null);

Bitmap bitmap4 = bitmaps.get(getRaidus(r5));
Matrix matrix4 = new Matrix();
Circle circle4 = circles.get(4);
matrix4.postTranslate(circle4.getLeft()+fTran,circle4.getTop()+fTran);
canvas.drawBitmap(bitmap4,matrix4,null);
}

/*绘制圆的动画效果*/
private void drawCircle(Canvas canvas, Circle circle) {
float top = circle.getTop();
float left = circle.getLeft();
float radius = circle.getRaidus();
boolean isClockwise = circle.isClockwise();
float speed = circle.getSpeed();

canvas.drawColor(Color.TRANSPARENT);
Paint paint = new Paint(this.paint);
paint.setColor(Color.YELLOW);
Bitmap trapezoidBitmap = getTrapezoidBitmap(circle, paint);

Matrix matrix = new Matrix();
int offsetX = trapezoidBitmap.getWidth() / 2;
int offsetY = trapezoidBitmap.getHeight() / 2;
matrix.postTranslate(-offsetX, -offsetY);

if (isClockwise) {
matrix.postRotate(speed+circle.getStartDegree());
} else {
matrix.postRotate(-speed+circle.getStartDegree());
}
float degree = getDegree(0.1f * speedArgu, radius);
speed += degree;
circle.setSpeed(speed);

matrix.postTranslate(left + offsetX, top + offsetY);
canvas.drawBitmap(trapezoidBitmap, matrix, null);

}

/*绘制圆*/
private Bitmap getTrapezoidBitmap(Circle circle, Paint paint) {
float radius = circle.getRaidus();
if(bitmaps == null){
bitmaps = new HashMap<Float, Bitmap>();
}
Bitmap bitmap = bitmaps.get(radius);
if (bitmap != null) {
return bitmap;
}
Bitmap bitmapTmp = Bitmap.createBitmap((int) (radius * 2 + gearHeight * 2), (int) (radius * 2 + gearHeight * 2), Bitmap.Config.ARGB_8888);
Canvas canvas = new Canvas(bitmapTmp);
canvas.drawColor(Color.TRANSPARENT);
canvas.translate(bitmapTmp.getWidth() / 2, bitmapTmp.getHeight() / 2);
/* 设置渐变色  */
/*Shader mShader = new LinearGradient(0, 0, 100, 100,
new int[]{Color.RED, Color.GREEN, Color.BLUE, Color.YELLOW,
Color.LTGRAY}, null, Shader.TileMode.REPEAT); // 一个材质,打造出一个线性梯度沿著一条线。
paint.setShader(mShader);*/
paint.setColor(circle.getColor());
canvas.drawCircle(0, 0, radius, paint);
drawGear(canvas,circle, paint);
bitmaps.put(radius,bitmapTmp);
return bitmapTmp;
}

/*在圆上画齿轮*/
private void drawGear(Canvas canvas, Circle circle, Paint paint) {
updataHeight(circle.getRaidus());
float radius = circle.getRaidus();
Path path = new Path();
path.moveTo(-(gearWidth / 2), -radius + 5);
path.lineTo(gearWidth / 2, -radius + 5);
path.lineTo(gearWidth / 2 - 10, -radius - gearHeight + 10);
path.lineTo(-(gearWidth / 2 - 10), -radius - gearHeight + 10);
path.lineTo(-(gearWidth / 2), -radius + 5);
int num = (int) (360 / getDegree(length, radius));
Paint p = new Paint(paint);
p.setColor(circle.getColor());
for (int i = 0; i <= num; i++) {
canvas.drawPath(path, p);
canvas.rotate(getDegree(length, radius));
}
canvas.save();
}

private void updataHeight(float radius) {
gearHeight = radius/4f;
if(gearHeight<35){
gearHeight = 35;
} else if(gearHeight > 50){
gearHeight = 50;
}
}

/**
* 由弧长获取度数
*/
public float getDegree(float length, float r) {
float degree = 360 * length / (2 * PI * r);
return degree;
}

public float getPerimeter(float r) {
float perimeter = 2 * PI * r;
return perimeter;
}

/**
* 对圆的半径有要求
*
* @param multiple
* @return
*/
public float getRaidus(int multiple) {
int gearNum = 5;
gearNum += multiple;//gearNum代表圆上齿轮的个数
float f1 = length * gearNum;
float f = f1 / (2 * PI);
return f;
}

public void setGear(int gear) {
gearHeight = gearHeight + gear*3;
}

class Circle {
float top;//顶部坐标
float left;//左侧坐标
float raidus;//半径
float speed;//旋转速度
boolean clockwise;//旋转方向
float gearWidth;
float gearHeight;
float startDegree;//起始角度
private int color;

public int getColor() {
return color;
}

public void setColor(int color) {
this.color = color;
}

public float getStartDegree() {
return startDegree;
}

public void setStartDegree(float startDegree) {
this.startDegree = startDegree;
}

public float getGearWidth() {
return gearWidth;
}

public void setGearWidth(float gearWidth) {
this.gearWidth = gearWidth;
}

public float getGearHeight() {
return gearHeight;
}

public void setGearHeight(float gearHeight) {
this.gearHeight = gearHeight;
}

public Circle(float top, float left, float raidus, boolean clockwise, float speed, float startDegree, int color) {
this.left = left;
this.top = top;
this.raidus = raidus;
this.clockwise = clockwise;
this.speed = speed;
this.startDegree = startDegree;
this.color = color;
}

public boolean isClockwise() {
return clockwise;
}

public void setClockwise(boolean clockwise) {
this.clockwise = clockwise;
}

public float getTop() {
return top;
}

public void setTop(float top) {
this.top = top;
}

public float getLeft() {
return left;
}

public void setLeft(float left) {
this.left = left;
}

public float getRaidus() {
return raidus;
}

public void setRaidus(float raidus) {
this.raidus = raidus;
}

public float getSpeed() {
return speed;
}

public void setSpeed(float speed) {
this.speed = speed;
}
}

}
