RecyclerView实现横向的GridView效果
2016-07-27 14:32
585 查看
要使用RecyclerView,首先要在build.gradle文件中添加依赖

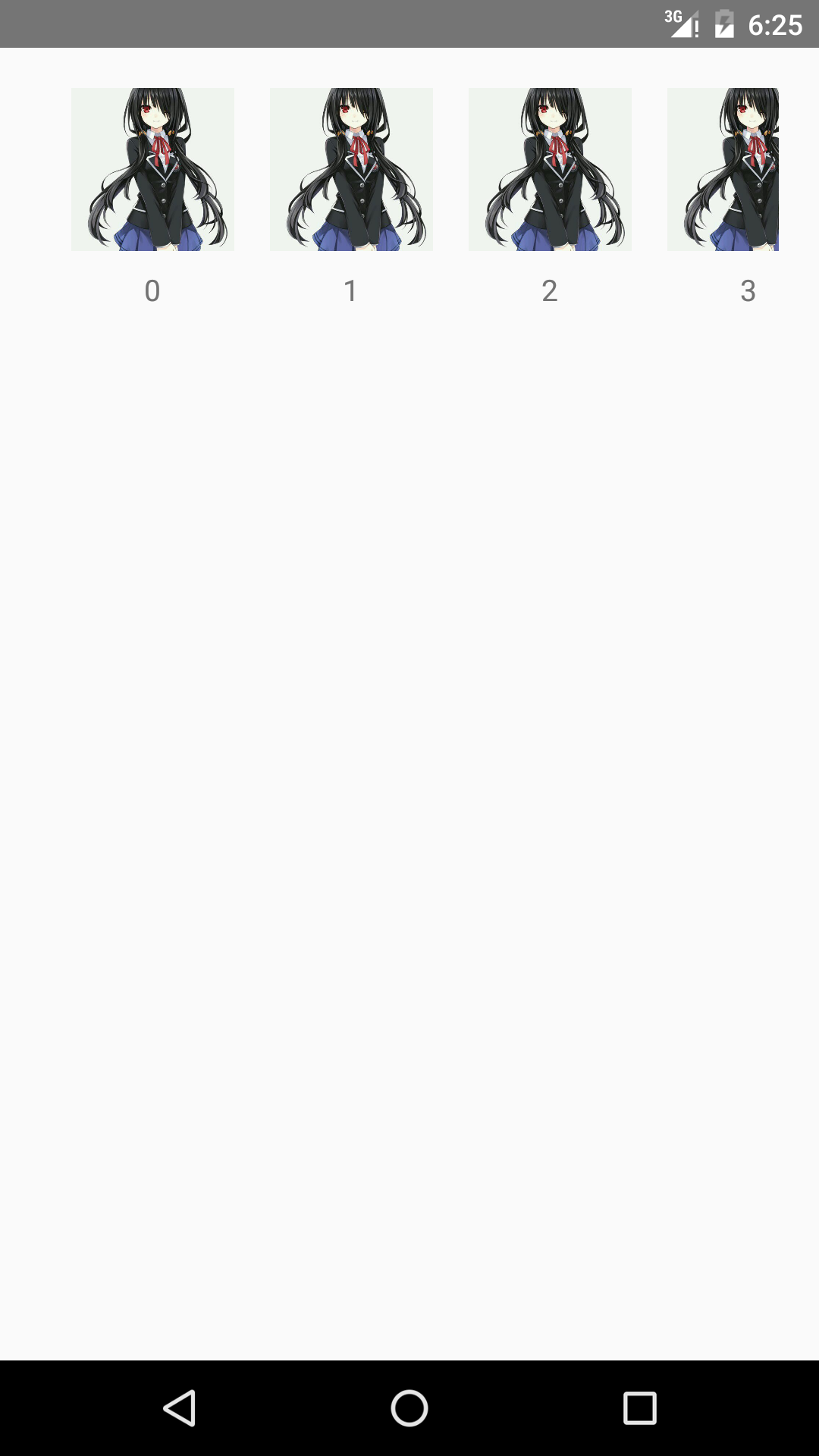

效果图
布局如下
使用方法:
其Adapter要继承RecyclerView.Adapter,在Adapter中药先定义ViewHolder,并继承RecyclerView.ViewHolder;如:
在onCreateViewHolder进行初始化操作,在onBindViewHolder中对各种事件进行处理,getItemCount返回的是 RecyclerView的长度,其布局与代码如下:
compile 'com.android.support:appcompat-v7:24.1.0'
效果图
布局如下
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context="com.dxx.recycleviewtestdemo.MainActivity"> <android.support.v7.widget.RecyclerView android:id="@+id/rv" android:layout_width="match_parent" android:layout_height="200dp" android:layout_margin="20dp"/> </RelativeLayout>
使用方法:
package com.dxx.recycleviewtestdemo; import android.os.Bundle; import android.support.v7.app.AppCompatActivity; import android.support.v7.widget.LinearLayoutManager; import android.support.v7.widget.RecyclerView; public class MainActivity extends AppCompatActivity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); RecyclerView rv = (RecyclerView) findViewById(R.id.rv); rv.setLayoutManager(new LinearLayoutManager(this,LinearLayoutManager.HORIZONTAL,false));//设置布局管理器 rv.setAdapter(new MyRVAdapter(this)); } }
其Adapter要继承RecyclerView.Adapter,在Adapter中药先定义ViewHolder,并继承RecyclerView.ViewHolder;如:
public class ViewHolder extends RecyclerView.ViewHolder{ public ViewHolder(View itemView) { super(itemView); } ImageView rv_item_image; TextView rv_item_tv; }
在onCreateViewHolder进行初始化操作,在onBindViewHolder中对各种事件进行处理,getItemCount返回的是 RecyclerView的长度,其布局与代码如下:
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="wrap_content" android:layout_height="wrap_content" android:gravity="center" android:layout_marginLeft="18dp" android:layout_marginBottom="5dp" android:orientation="vertical"> <ImageView android:id="@+id/rv_item_image" android:layout_width="82dp" android:layout_height="82dp" android:scaleType="centerCrop" android:src="@drawable/shiqikuangsan"/> <TextView android:id="@+id/rv_item_tv" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginTop="9dp" android:textSize="15sp"/> </LinearLayout>
package com.dxx.recycleviewtestdemo;
import android.content.Context;
import android.support.v7.widget.RecyclerView;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import android.widget.TextView;
/**
* Created by duxiaxing on 2016/7/27.
*/
public class MyRVAdapter extends RecyclerView.Adapter<MyRVAdapter.ViewHolder> {
private Context context;
public MyRVAdapter(Context context){
this.context = context;
}
@Override
public ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
View view = LayoutInflater.from(context).inflate(R.layout.layout_rv_item,parent,false);
ViewHolder holder = new ViewHolder(view);
holder.rv_item_image = (ImageView) view.findViewById(R.id.rv_item_image);
holder.rv_item_tv = (TextView) view.findViewById(R.id.rv_item_tv);
return holder;
}
@Override
public void onBindViewHolder(ViewHolder holder, int position) {
holder.rv_item_tv.setText(position + "");
}
@Override
public int getItemCount() {
return 9;
}
public class ViewHolder extends RecyclerView.ViewHolder{ public ViewHolder(View itemView) { super(itemView); } ImageView rv_item_image; TextView rv_item_tv; }
}
