指定EditText输入类型
通过android:inputType可以指定EditText 的输入类型,比如输入数字,日期,密码或者邮件地址等。下面列出常用的类型值:
text 普通文本的输入
textEmailAddress 包含“@”字符的文本输入(邮件地址)
textUri 包含“/”字符的输入
number 基本数字输入
phone 电话格式的输入
android:inputType控制输入行为
textCapWords 单词首字母大写,一般用于标题或者人名
textCapSentences 句子首个单词首字母大写,一般用于段落的开始
textCapCharacters 所有字符的大写
textAutoCorrect 纠正单词的拼写错误
textPassword 密码输入
textMultiLine 允许多行输入
android:inputType允许输入类型和输入行为按位组合的方式指定,比如:
[html] view
plain copy
<EditText
android:id="@+id/postal_address"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:hint="@string/postal_address_hint"
android:inputType="textPostalAddress|
textCapWords|
textNoSuggestions" />
这我们就指定了为邮政地址(textPostalAddress),且地址单词子首字母大写(textCapWords),且不显示输入单词的词典建议(textNoSuggestions)。
指定键盘操作
软键盘的Enter键默认显示的是“完成”文本,我们知道按Enter建表示前置工作已经准备完毕了,要去什么什么。比如,在一个搜索中,我们输入要搜索的文本,然后按Enter表示要去搜索了,但是默认的Enter键显示的是“完成”文本,不符合搜索的语义,如果能显示“搜索”两个字或者显示一个表示搜索的图标多好。事实证明我们的想法是合理的,Android也为我们提供的这样的功能。通过设置android:imeOptions来改变默认的“完成”文本。这里举几个常用的常量值:
actionNext 软键盘不关闭,光标跳到下一个输入焦点位置(发送EditorInfo.IME_ACTION_NEXT命令)
actionGo 软键盘不关闭,光标跳到下一个输入焦点位置,发送EditorInfo.IME_ACTION_GO命令
actionSearch 软键盘不关闭,发送EditorInfo.IME_ACTION_SEARCH命令
actionSend 软键盘关闭,发送EditorInfo.IME_ACTION_SEND命令
actionDone 软键盘关闭,光标保持在原来的输入框上,发送EditorInfo.IME_ACTION_DONE命令
配置文件:
[html] view
plain copy
<EditText
android:id="@+id/action_next"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:hint="@string/action_next"
android:imeOptions="actionNext"
android:inputType="text" />
<EditText
android:id="@+id/action_go"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:hint="@string/action_go"
android:imeOptions="actionGo"
android:inputType="number" />
<EditText
android:id="@+id/action_search"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:hint="@string/action_search"
android:imeOptions="actionSearch"
android:inputType="text" />
<EditText
android:id="@+id/action_done"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:hint="@string/action_done"
android:imeOptions="actionDone"
android:inputType="text" />
<EditText
android:id="@+id/action_send"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:hint="@string/action_send"
android:imeOptions="actionSend"
android:inputType="text" />
源代码:
[java] view
plain copy
public class MainEditText extends Activity implements OnEditorActionListener{
private EditText editNext;
private EditText editGo;
private EditText editSearch;
private EditText editDone;
private EditText editSend;
@Override
public void onCreate(Bundle savedInstanceState){
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_edit);
editNext= (EditText) findViewById(R.id.action_next);
editGo = (EditText)findViewById(R.id.action_go);
editSearch = (EditText)findViewById(R.id.action_search);
editDone = (EditText)findViewById(R.id.action_done);
editSend = (EditText)findViewById(R.id.action_send);
editNext.setOnEditorActionListener(this);
}
@Override
public boolean onEditorAction(TextView v, int actionId, KeyEvent event) {
boolean handled = false;
EditText text = (EditText) findViewById(R.id.editText);
switch (actionId) {
case EditorInfo.IME_ACTION_NEXT:
Log.d("action next", text.getText().toString());
handled = true;
break;
case EditorInfo.IME_ACTION_SEND:
Log.d("action send", text.getText().toString());
handled = true;
break;
case EditorInfo.IME_ACTION_GO:
Log.d("action send", text.getText().toString());
handled = true;
break;
case EditorInfo.IME_ACTION_DONE:
Log.d("action done", text.getText().toString());
handled = true;
break;
case EditorInfo.IME_ACTION_SEARCH:
Log.d("action search", text.getText().toString());
handled = true;
break;
default:
break;
}
return handled;
}
}

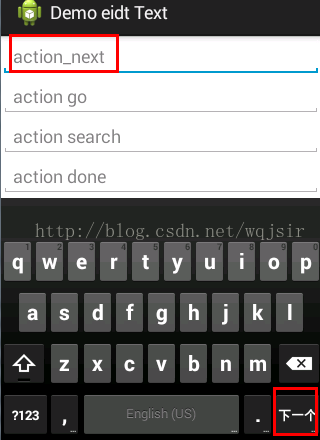

效果如图:
设置一个自定义操作按钮标签
上面设置的键盘操作,的按钮文字都是系统默认设置,我们可以通过android:imeActionLabel属性来设置我们自定义的标签文本,如下:
[html] view
plain copy
<EditText
android:id="@+id/action_next"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:hint="@string/action_next"
android:imeOptions="actionNext"
android:imeActionLabel="@string/action_next_text"
android:inputType="text" />
在string.xml中设置为:
[html] view plain copy
<pre code_snippet_id="274045" snippet_file_name="blog_20140404_5_1054654" name="code" class="html"><string name="action_next_text">下一个</string></pre>
显示为:
AutoCompleteTextView
AutoCompleteTextView自动补充输入文本,是EditText的一个子类,当我们输入一部分字符时,就会给我们列出和我们输入相匹配的内容。

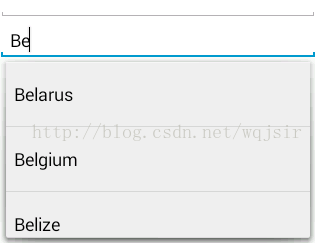

效果如下:
list 列表中的建议词是通过AutoCompleteTextView的setAdapter方法设置上的,源码如下:[java] view plain copy
ArrayAdapter<String> countries = new ArrayAdapter<String>(this,android.R.layout.simple_dropdown_item_1line,getResources().getStringArray(R.array.countries_arry));
AutoCompleteTextView autoText = (AutoCompleteTextView)findViewById(R.id.autoCompleteTextView1);
autoText.setAdapter(countries);
如果用户选择了给出的建议词,如何检查系统的变化呢?这里我们注册一个TextWatcher来实现对输入的文本变化的检查,源码如下:[java] view plain copy
autoText.addTextChangedListener(new TextWatcher(){
@Override
public void afterTextChanged(Editable arg0) {
}
@Override
public void beforeTextChanged(CharSequence arg0, int arg1,
int arg2, int arg3) {
}
@Override
public void onTextChanged(CharSequence value, int arg1, int arg2,
int arg3) {
Log.d("AutoCompleteTextActivity", value.toString());
}
});
xml文件内容为:[html] view plain copy
<AutoCompleteTextView
android:id="@+id/autoCompleteTextView1"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:ems="10"
android:completionThreshold="2"
android:text="AutoCompleteTextView">
其中android:completionThreshold=“2”表示当我们输入第二个字符时建议词list的显示
android:ems = "10" 设置TextView或者Edittext的宽度为10个字符的宽度。当设置该属性后,控件显示的长度就为10个字符的长度,超出的部分将不显示
自定义建议词list风格
设置描述List中item的格式(listitem.xml文件)[html] view plain copy
<?xml version="1.0" encoding="utf-8"?>
<TextView xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/list_item"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:padding="10dp"
android:textColor="#0000aa"
android:textSize="16sp" />
源码:[java] view plain copy
ArrayAdapter<String> countries = new ArrayAdapter<String>(this,R.layout.listitem,getResources().getStringArray(R.array.countries_arry));
显示效果如下:
相关文章推荐
- android 游戏 实战打飞机游戏 子弹生成与碰撞 以及爆炸效果(5)
- android中的include的使用
- 解决android.permission.WRITE_APN_SETTINGS
- 开源项目之AndroidImageSlider图片多姿势轮播
- android intentFilter 详解
- Android 基于google Zxing实现二维码的生成,识别和长按识别的效果
- android launchMode加载模式和intent flag
- android apk汉化,及各种apktool bug汇总
- android 6.0权限全面详细分析和解决方案
- Android 状态栏通知Notification、NotificationManager详解
- android 4.0引入的新布局GridLayout(网格布局)
- Android中如何在Parcelable中使用泛型?
- windows下android打包工具
- Android 百度map频繁添加覆盖物后刷新出现map闪烁有关问题
- Android 基础知识点总结
- android 同时点击两个按钮或其他控件均响应的问题
- 【Android基础】三、四大组件(一)
- Android热修复框架之AndFix
- 歪谈AndroidManifest
- android获取网页数据的方法
