Python点滴(三)—pandas数据分析与matplotlib画图
2016-05-12 10:48
1086 查看
本篇博文主要介绍使用python中的matplotlib模块进行简单画图功能,我们这里画出了一个柱形图来对比两位同学之间的不同成绩,和使用pandas进行简单的数据分析工作,主要包括打开csv文件读取特定行列进行加减增加删除操作,计算滑动均值,进行画图显示等等;其中还包括一段关于ipython的基本使用指令,比较naive欢迎各位指正交流!
你可以在python脚本或者python交互式环境里动态的改变默认rc配置。所有的rc配置变量称为matplotlib.rcParams 使用字典格式存储,它在matplotlib中是全局可见的。rcParams可以直接修改,如:
Matplotlib还提供了一些便利函数来修改rc配置。matplotlib.rc()命令利用关键字参数来一次性修改一个属性的多个设置:
这里matplotlib.rcdefaults()命令可以恢复为matplotlib标准默认配置。
在日常的数据统计分析的过程当中,大量的数据无法直观的观察出来,需要我们使用各种工具从不同角度侧面分析数据之间的变化与差异,而画图无疑是一个比较有效的方法;下面我们将使用python中的画图工具包matplotlib.pyplot来画一个柱形图,通过一个小示例的形式熟悉了解一下mpl的基本使用:
ipython:
run命令,
运行一个.py脚本, 但是好处是, 与运行完了以后这个.py文件里的变量都可以在Ipython里继续访问;
timeit命令,
可以用来做基准测试(benchmarking),
测试一个命令(或者一个函数)的运行时间,
debug命令: 当有exception异常的时候, 在console里输入debug即可打开debugger,在debugger里,
输入u,d(up, down)查看stack, 输入q退出debugger;
$ipython
notebook会打开浏览器,新建一个notebook,一个非常有意思的地方;
alt+Enter:
运行程序, 并自动在后面新建一个cell;
在notebook中是可以实现的
pandas自带练习例子数据,数据为金融数据;
Out[9]:
Out[11]:
In [12]:
Out[12]:
Out[13]:
Out[18]:
New columns can be added on the fly.
In [19]:
Out[19]:
...and deleted on the fly.
In [22]:
Out[22]:
Out[25]:
Out[26]:
In [27]:
In [28]:
Out[28]:
mlp.rc动态配置
你可以在python脚本或者python交互式环境里动态的改变默认rc配置。所有的rc配置变量称为matplotlib.rcParams 使用字典格式存储,它在matplotlib中是全局可见的。rcParams可以直接修改,如:import matplotlib as mpl
mpl.rcParams['lines.linewidth'] = 2
mpl.rcParams['lines.color'] = 'r'
Matplotlib还提供了一些便利函数来修改rc配置。matplotlib.rc()命令利用关键字参数来一次性修改一个属性的多个设置:
import matplotlib as mpl
mpl.rc('lines', linewidth=2, color='r')
这里matplotlib.rcdefaults()命令可以恢复为matplotlib标准默认配置。

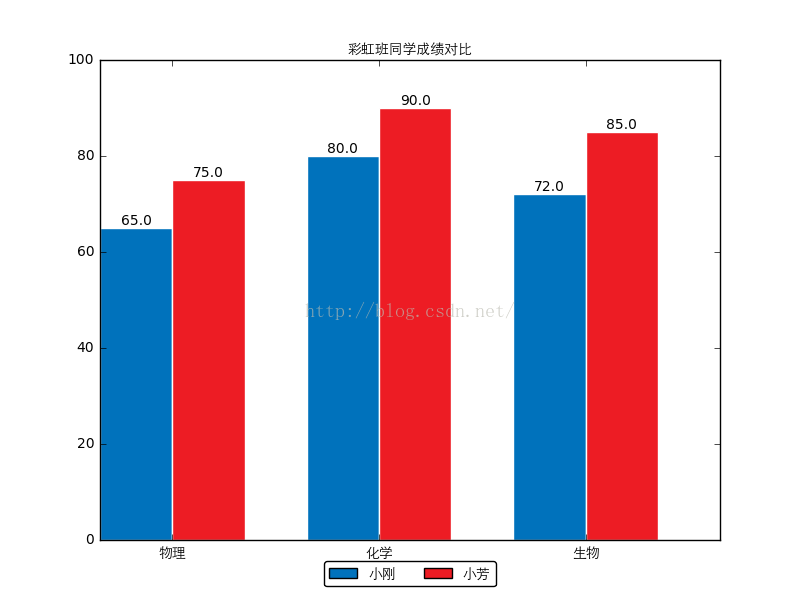

在日常的数据统计分析的过程当中,大量的数据无法直观的观察出来,需要我们使用各种工具从不同角度侧面分析数据之间的变化与差异,而画图无疑是一个比较有效的方法;下面我们将使用python中的画图工具包matplotlib.pyplot来画一个柱形图,通过一个小示例的形式熟悉了解一下mpl的基本使用:
<span style="font-size:14px;">#!/usr/bin/env python # coding: utf-8 #from matplotlib import backends import matplotlib.pyplot as plt import matplotlib as mpl mpl.use('Agg') import numpy as np from PIL import Image import pylab custom_font = mpl.font_manager.FontProperties(fname='C:\\Anaconda\\Lib\\site-packages\\matplotlib\\mpl-data\\fonts\\ttf\\huawenxihei.ttf') # 必须配置中文字体,否则会显示成方块 # 所有希望图表显示的中文必须为unicode格式,为方便起见我们将字体文件重命名为拼音形式 custom_font表示自定义字体 font_size = 10 # 字体大小 fig_size = (8, 6) # 图表大小 names = (u'小刚', u'小芳') # 姓名元组 subjects = (u'物理', u'化学', u'生物') # 学科元组 scores = ((65, 80, 72), (75, 90, 85)) # 成绩元组 mpl.rcParams['font.size'] = font_size # 更改默认更新字体大小 mpl.rcParams['figure.figsize'] = fig_size # 修改默认更新图表大小 bar_width = 0.35 # 设置柱形图宽度 index = np.arange(len(scores[0])) # 绘制“小明”的成绩 index表示柱形图左边x的坐标 rects1 = plt.bar(index, scores[0], bar_width, color='#0072BC', label=names[0]) # 绘制“小红”的成绩 rects2 = plt.bar(index + bar_width, scores[1], bar_width, color='#ED1C24', label=names[1]) plt.xticks(index + bar_width, subjects, fontproperties=custom_font) # X轴标题 plt.ylim(ymax=100, ymin=0) # Y轴范围 plt.title(u'彩虹班同学成绩对比', fontproperties=custom_font) # 图表标题 plt.legend(loc='upper center', bbox_to_anchor=(0.5, -0.03), fancybox=True, ncol=2, prop=custom_font) # 图例显示在图表下方 似乎左就是右,右就是左,上就是下,下就是上,center就是center # bbox_to_anchor左下角的位置? ncol就是numbers of column默认为1 # 添加数据标签 就是矩形上面的成绩数字 def add_labels(rects): for rect in rects: height = rect.get_height() plt.text(rect.get_x() + rect.get_width() / 2, height, height, ha='center', va='bottom') # horizontalalignment='center' plt.text(x坐标,y坐标,text,位置) # 柱形图边缘用白色填充,为了更加清晰可分辨 rect.set_edgecolor('white') add_labels(rects1) add_labels(rects2) plt.savefig('scores_par.png') # 图表输出到本地 #pylab.imshow('scores_par.png') pylab.show('scores_par.png') # 并打印显示图片 </span>ipython中程序运行结果:
ipython:

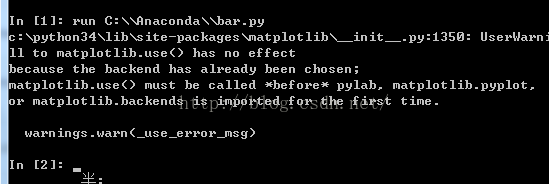

run命令,
运行一个.py脚本, 但是好处是, 与运行完了以后这个.py文件里的变量都可以在Ipython里继续访问;

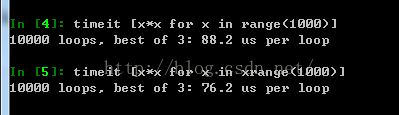

timeit命令,
可以用来做基准测试(benchmarking),
测试一个命令(或者一个函数)的运行时间,
debug命令: 当有exception异常的时候, 在console里输入debug即可打开debugger,在debugger里,
输入u,d(up, down)查看stack, 输入q退出debugger;
$ipython
notebook会打开浏览器,新建一个notebook,一个非常有意思的地方;
alt+Enter:
运行程序, 并自动在后面新建一个cell;
在notebook中是可以实现的

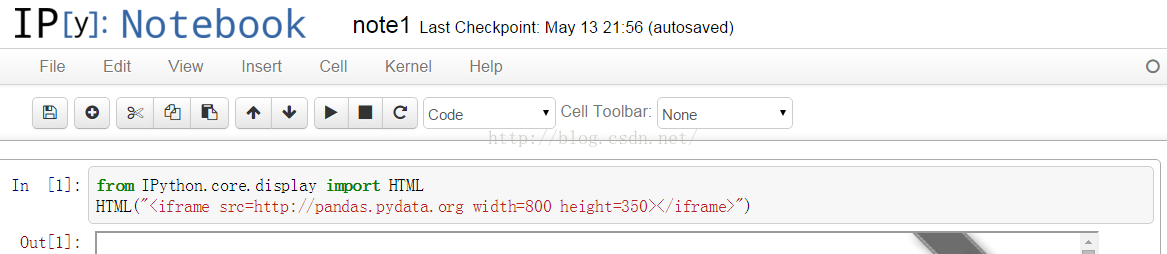

<span style="font-size:14px;">from IPython.core.display import HTML HTML("<iframe src=http://pandas.pydata.org width=800 height=350></iframe>")</span>
<span style="font-size:14px;">import datetime import pandas as pd import pandas.io.data from pandas import Series, DataFrame pd.__version__</span>
<span style="font-size:14px;"> Out[2]: '0.11.0' In [3]: import matplotlib.pyplot as plt import matplotlib as mpl mpl.rc('figure', figsize=(8, 7)) # rc设置全局画图参数 mpl.__version__</span>
<span style="font-size:14px;"> Out[3]: '1.2.1'</span>
<span style="font-size:14px;">labels = ['a', 'b', 'c', 'd', 'e'] s = Series([1, 2, 3, 4, 5], index=labels) s Out[4]: a 1 b 2 c 3 d 4 e 5 dtype: int64 In [5]: 'b' in s Out[5]: True In [6]: s['b'] Out[6]: 2 In [7]: mapping = s.to_dict() # 映射为字典 mapping Out[7]: {'a': 1, 'b': 2, 'c': 3, 'd': 4, 'e': 5} In [8]: Series(mapping) # 映射为序列 Out[8]: a 1 b 2 c 3 d 4 e 5 dtype: int64</span>
pandas自带练习例子数据,数据为金融数据;
aapl = pd.io.data.get_data_yahoo('AAPL', start=datetime.datetime(2006, 10, 1), end=datetime.datetime(2012, 1, 1)) aapl.head()
Out[9]:
Open | High | Low | Close | Volume | Adj Close | |
---|---|---|---|---|---|---|
Date | ||||||
2006-10-02 | 75.10 | 75.87 | 74.30 | 74.86 | 25451400 | 73.29 |
2006-10-03 | 74.45 | 74.95 | 73.19 | 74.08 | 28239600 | 72.52 |
2006-10-04 | 74.10 | 75.46 | 73.16 | 75.38 | 29610100 | 73.80 |
2006-10-05 | 74.53 | 76.16 | 74.13 | 74.83 | 24424400 | 73.26 |
2006-10-06 | 74.42 | 75.04 | 73.81 | 74.22 | 16677100 | 72.66 |
df = pd.read_csv('C:\\Anaconda\\Lib\\site-packages\\matplotlib\\mpl-data\\sample_data\\aapl_ohlc.csv', index_col='Date', parse_dates=True) df.head()
Out[11]:
Open | High | Low | Close | Volume | Adj Close | |
---|---|---|---|---|---|---|
Date | ||||||
2006-10-02 | 75.10 | 75.87 | 74.30 | 74.86 | 25451400 | 73.29 |
2006-10-03 | 74.45 | 74.95 | 73.19 | 74.08 | 28239600 | 72.52 |
2006-10-04 | 74.10 | 75.46 | 73.16 | 75.38 | 29610100 | 73.80 |
2006-10-05 | 74.53 | 76.16 | 74.13 | 74.83 | 24424400 | 73.26 |
2006-10-06 | 74.42 | 75.04 | 73.81 | 74.22 | 16677100 | 72.66 |
df.index
Out[12]:
<class 'pandas.tseries.index.DatetimeIndex'> [2006-10-02 00:00:00, ..., 2011-12-30 00:00:00] Length: 1323, Freq: None, Timezone: None
ts = df['Close'][-10:] #截取'Close'列倒数十行 ts
Out[13]:
Date 2011-12-16 381.02 2011-12-19 382.21 2011-12-20 395.95 2011-12-21 396.45 2011-12-22 398.55 2011-12-23 403.33 2011-12-27 406.53 2011-12-28 402.64 2011-12-29 405.12 2011-12-30 405.00 Name: Close, dtype: float64
df[['Open', 'Close']].head() #只要Open Close列
Out[18]:
Open | Close | |
---|---|---|
Date | ||
2006-10-02 | 75.10 | 74.86 |
2006-10-03 | 74.45 | 74.08 |
2006-10-04 | 74.10 | 75.38 |
2006-10-05 | 74.53 | 74.83 |
2006-10-06 | 74.42 | 74.22 |
In [19]:
df['diff'] = df.Open - df.Close #添加新一列 df.head()
Out[19]:
Open | High | Low | Close | Volume | Adj Close | diff | |
---|---|---|---|---|---|---|---|
Date | |||||||
2006-10-02 | 75.10 | 75.87 | 74.30 | 74.86 | 25451400 | 73.29 | 0.24 |
2006-10-03 | 74.45 | 74.95 | 73.19 | 74.08 | 28239600 | 72.52 | 0.37 |
2006-10-04 | 74.10 | 75.46 | 73.16 | 75.38 | 29610100 | 73.80 | -1.28 |
2006-10-05 | 74.53 | 76.16 | 74.13 | 74.83 | 24424400 | 73.26 | -0.30 |
2006-10-06 | 74.42 | 75.04 | 73.81 | 74.22 | 16677100 | 72.66 | 0.20 |
del df['diff'] df.head()
Open | High | Low | Close | Volume | Adj Close | |
---|---|---|---|---|---|---|
Date | ||||||
2006-10-02 | 75.10 | 75.87 | 74.30 | 74.86 | 25451400 | 73.29 |
2006-10-03 | 74.45 | 74.95 | 73.19 | 74.08 | 28239600 | 72.52 |
2006-10-04 | 74.10 | 75.46 | 73.16 | 75.38 | 29610100 | 73.80 |
2006-10-05 | 74.53 | 76.16 | 74.13 | 74.83 | 24424400 | 73.26 |
2006-10-06 | 74.42 | 75.04 | 73.81 | 74.22 | 16677100 | 72.66 |
close_px = df['Adj Close']
In [22]:
mavg = pd.rolling_mean(close_px, 40) #计算滑动均值并截取显示倒数十行 mavg[-10:]
Out[22]:
Date 2011-12-16 380.53500 2011-12-19 380.27400 2011-12-20 380.03350 2011-12-21 380.00100 2011-12-22 379.95075 2011-12-23 379.91750 2011-12-27 379.95600 2011-12-28 379.90350 2011-12-29 380.11425 2011-12-30 380.30000 dtype: float64
close_px.plot(label='AAPL') mavg.plot(label='mavg') plt.legend() # 图标
import pylab
pylab.show() # 显示图片
Out[25]:
<matplotlib.legend.Legend at 0xa17cd8c>
df = pd.io.data.get_data_yahoo(['AAPL', 'GE', 'GOOG', 'IBM', 'KO', 'MSFT', 'PEP'], start=datetime.datetime(2010, 1, 1), end=datetime.datetime(2013, 1, 1))['Adj Close'] df.head()
Out[26]:
AAPL | GE | GOOG | IBM | KO | MSFT | PEP | |
---|---|---|---|---|---|---|---|
Date | |||||||
2010-01-04 | 209.51 | 13.81 | 626.75 | 124.58 | 25.77 | 28.29 | 55.08 |
2010-01-05 | 209.87 | 13.88 | 623.99 | 123.07 | 25.46 | 28.30 | 55.75 |
2010-01-06 | 206.53 | 13.81 | 608.26 | 122.27 | 25.45 | 28.12 | 55.19 |
2010-01-07 | 206.15 | 14.53 | 594.10 | 121.85 | 25.39 | 27.83 | 54.84 |
2010-01-08 | 207.52 | 14.84 | 602.02 | 123.07 | 24.92 | 28.02 | 54.66 |
rets = df.pct_change()
In [28]:
plt.scatter(rets.PEP, rets.KO) # 画散点图 plt.xlabel('Returns PEP') plt.ylabel('Returns KO')
import pylab
pylab.show()
Out[28]:
<matplotlib.text.Text at 0xa1b5d8c>
