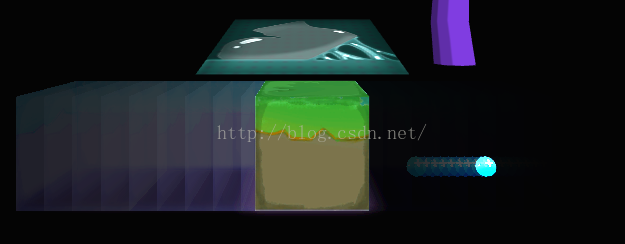

unity3d 实现残影特效
2016-04-29 17:18
591 查看
c#脚本 挂相机下
用到的shader
//可适应 主相机 在运动的 残影cs
using UnityEngine; using System.Collections; using System.Collections.Generic; //[ExecuteInEditMode] [RequireComponent(typeof(Camera))] public class TestMRT : MonoBehaviour { public Material testMRTMaterial = null; public RenderTexture[] mrtTex = new RenderTexture[2]; public RenderTexture[] TextureA = new RenderTexture[2]; RenderBuffer[] mrtRB = new RenderBuffer[2]; public Camera effectCame; public Texture texture0; public Texture texture1; public RenderTexture sourTexture; public RenderTexture canYanTexture; public RenderTexture curTexture; public Material CreateCanYinMaterial; void Start() { TextureA[0] = new RenderTexture(Screen.width, Screen.height, 24, RenderTextureFormat.ARGB32); TextureA[1] = new RenderTexture(Screen.width, Screen.height, 24, RenderTextureFormat.ARGB32); Shader testMRT = Shader.Find("Custom/TestMRT"); if (testMRT.isSupported) testMRTMaterial = new Material(testMRT); else return; Shader CanyanCreat = Shader.Find("Custom/CanyanCreat"); if (CanyanCreat.isSupported) CreateCanYinMaterial = new Material(CanyanCreat); else return; StartCoroutine(ShowEffect()); } void OnRenderImage(RenderTexture source, RenderTexture destination) { sourTexture = source; //Graphics.Blit(sourTexture, source, testMRTMaterial, 0); if (!testMRTMaterial.shader.isSupported) { Graphics.Blit(source, destination); return; } //Show the result testMRTMaterial.SetTexture("_Tex0", sourTexture); testMRTMaterial.SetTexture("_Tex1", curTexture); //Graphics.Blit(curTexture, destination, testMRTMaterial, 2); Graphics.Blit(null, destination, testMRTMaterial, 2); } Dictionary<Renderer, Material[]> rendToMat = new Dictionary<Renderer, Material[]>(); void Clear(RenderTexture destTexture) { Graphics.SetRenderTarget(destTexture); GL.PushMatrix(); GL.Clear(true, true, Color.white); GL.PopMatrix(); } void InitCanYanTexture() { playRoot = GameObject.Find("Players").transform; Transform[] chs = playRoot.GetComponentsInChildren<Transform>(); int effectLayer = LayerMask.NameToLayer("ImageEffect"); for (int i = 0, iMax = chs.Length; i < iMax; i++) { chs[i].gameObject.layer = effectLayer; Renderer red = chs[i].GetComponent<Renderer>(); if (red != null) { if (red.sharedMaterial.shader.name == "Toon/Basic" || red.gameObject.name == "m_battle_box01") { Material newMt = GameObject.Instantiate(CreateCanYinMaterial) as Material; newMt.mainTexture = red.sharedMaterial.mainTexture; rendToMat.Add(red, new Material[] { red.sharedMaterial, newMt }); } else Debuger.Log(red.sharedMaterial.shader.name); } } effectCame.cullingMask = 1 << effectLayer; canYanTexture = new RenderTexture(Screen.width, Screen.height, 24, RenderTextureFormat.ARGB32); effectCame.targetTexture = canYanTexture; } void CreateCanYanTexture() { int colorId = Shader.PropertyToID("_Color"); Shader sd = CreateCanYinMaterial.shader; float i = 0; foreach (KeyValuePair<Renderer, Material[]> pair in rendToMat) { i += 1f; Renderer rd = pair.Key; rd.sharedMaterial = rendToMat[rd][1]; rd.sharedMaterial.SetColor(colorId, new Color(0, 0, 1,0.7f+0.1f*i)); } //GL.Clear(true, true, Color.clear); effectCame.Render(); foreach (KeyValuePair<Renderer, Material[]> pair in rendToMat) { Renderer rd = pair.Key; rd.sharedMaterial = rendToMat[rd][0]; } } private Transform playRoot; IEnumerator ShowEffect() { InitCanYanTexture(); int ii = 0; while(true) { CreateCanYanTexture(); yield return new WaitForSeconds(0.01f); int a = ii % 2;//0;// int b = ++ii % 2;//1;// curTexture = TextureA[a]; Graphics.SetRenderTarget(curTexture); GL.Clear(false, false, Color.clear); testMRTMaterial.SetTexture("_Tex0", sourTexture); testMRTMaterial.SetTexture("_Tex1", TextureA[b]); testMRTMaterial.SetTexture("_MainTex", canYanTexture); GL.PushMatrix(); GL.LoadOrtho(); testMRTMaterial.SetPass(1); //Pass 0 outputs 2 render textures. GL.Begin(GL.QUADS); GL.TexCoord2(0.0f, 0); GL.Vertex3(0.0f, 0.0f, 0.1f); GL.TexCoord2(1.0f, 0); GL.Vertex3(1.0f, 0.0f, 0.1f); GL.TexCoord2(1.0f, 1); GL.Vertex3(1.0f, 1.0f, 0.1f); GL.TexCoord2(0.0f, 1); GL.Vertex3(0.0f, 1.0f, 0.1f); GL.End(); GL.PopMatrix(); } } }
用到的shader
Shader "Custom/CanyanCreat" { Properties { _MainTex ("", 2D) = "" {} _Color ("Main Color", Color) = (1,1,1,1) } CGINCLUDE #include "UnityCG.cginc" struct v2f { float4 pos : POSITION; float2 uv : TEXCOORD0; }; uniform float4 _Color; sampler2D _MainTex; v2f vert( appdata_img v ) { v2f o; o.pos = mul(UNITY_MATRIX_MVP, v.vertex); o.uv = v.texcoord.xy; return o; } float4 fragCanYenCreate(v2f pixelData) : COLOR0 { float4 col1 = tex2D(_MainTex, pixelData.uv);//上一帧的累加图 //float4 col = _Color.a*(col1*0.8f+_Color*(1 - col1.a)); float4 col = _Color+col1; col.a = _Color.a;//1.0f;//0.1f; return col; } ENDCG Subshader { Pass { ZTest Always Cull Off ZWrite Off Fog { Mode off } //Blend one zero CGPROGRAM #pragma glsl #pragma fragmentoption ARB_precision_hint_fastest #pragma vertex vert #pragma fragment fragCanYenCreate #pragma target 3.0 ENDCG } } Fallback off }
Shader "Custom/TestMRT" { Properties { _MainTex ("", 2D) = "" {} } CGINCLUDE #include "UnityCG.cginc" struct v2f { float4 pos : POSITION; float2 uv : TEXCOORD0; }; struct PixelOutput { float4 col0 : COLOR0; float4 col1 : COLOR1; }; sampler2D _MainTex; sampler2D _Tex0; sampler2D _Tex1; v2f vert( appdata_img v ) { v2f o; o.pos = mul(UNITY_MATRIX_MVP, v.vertex); o.uv = v.texcoord.xy; return o; } //可以返回多个颜色,对应的 //public static void SetRenderTarget(RenderBuffer[] colorBuffers, RenderBuffer depthBuffer); 可用多个buff接受 //Graphics.SetRenderTarget(mrtRB, mrtTex[0].depthBuffer); PixelOutput fragTestMRT(v2f pixelData) { PixelOutput o; o.col0 = float4(1.0f, 0.0f, 0.0f, 1.0f); o.col1 = float4(0.0f, 1.0f, 0.0f, 1.0f); return o; } float4 fragCanYenAdd(v2f pixelData) : COLOR0 { //float4 col0 = tex2D(_Tex0, pixelData.uv);//当前场景原图 float4 col1 = tex2D(_Tex1, pixelData.uv);//上一帧的累加残影图 float4 colM = tex2D(_MainTex, pixelData.uv);//当前场景新的残影图原图,a通道存放 衰减系数这样就可以控制 残影的长度 float4 col; //col = colM + col1*(1 - colM)*0.9f;//通过*0.9f的衰减系数,控制残影销毁 col.rgb = colM.rbg + col1.rgb*(1 - colM.rgb)*0.9; //col.a = colM.a + col1.a; return col; } float4 fragCanYenBind(v2f pixelData) : COLOR0 { float2 uuv = float2(pixelData.uv.x,1- pixelData.uv.y); float4 col0 = tex2D(_Tex0, uuv);//当前场景原图 float4 col1 = tex2D(_Tex1, pixelData.uv);//上一帧的累加残影图 float4 col; col = col0 + col1*(1 - col0.a); return col; } ENDCG Subshader { Pass { ZTest Always Cull Off ZWrite Off Fog { Mode off } CGPROGRAM #pragma glsl #pragma fragmentoption ARB_precision_hint_fastest #pragma vertex vert #pragma fragment fragTestMRT #pragma target 3.0 ENDCG } Pass { ZTest Always Cull Off ZWrite Off Fog { Mode off } //Blend one zero CGPROGRAM #pragma glsl #pragma fragmentoption ARB_precision_hint_fastest #pragma vertex vert #pragma fragment fragCanYenAdd #pragma target 3.0 ENDCG } Pass { ZTest Always Cull Off ZWrite Off Fog { Mode off } //Blend one zero CGPROGRAM #pragma glsl #pragma fragmentoption ARB_precision_hint_fastest #pragma vertex vert #pragma fragment fragCanYenBind #pragma target 3.0 ENDCG } } Fallback off }
//可适应 主相机 在运动的 残影cs
using UnityEngine; using System.Collections; using System.Collections.Generic; //[ExecuteInEditMode] [RequireComponent(typeof(Camera))] public class TestMRT : MonoBehaviour { public Material testMRTMaterial = null; public RenderTexture[] mrtTex = new RenderTexture[2]; public RenderTexture[] TextureA = new RenderTexture[2]; RenderBuffer[] mrtRB = new RenderBuffer[2]; public Camera effectCame; public Texture texture0; public Texture texture1; public RenderTexture sourTexture; public RenderTexture canYanTexture; public RenderTexture curTexture; public Material CreateCanYinMaterial; void Start() { TextureA[0] = new RenderTexture(Screen.width, Screen.height, 24, RenderTextureFormat.ARGB32); TextureA[1] = new RenderTexture(Screen.width, Screen.height, 24, RenderTextureFormat.ARGB32); Shader testMRT = Shader.Find("Custom/TestMRT"); if (testMRT.isSupported) testMRTMaterial = new Material(testMRT); else return; Shader CanyanCreat = Shader.Find("Custom/CanyanCreat"); if (CanyanCreat.isSupported) CreateCanYinMaterial = new Material(CanyanCreat); else return; StartCoroutine(ShowEffect()); } void OnRenderImage(RenderTexture source, RenderTexture destination) { sourTexture = source; //Graphics.Blit(sourTexture, source, testMRTMaterial, 0); if (!testMRTMaterial.shader.isSupported) { Graphics.Blit(source, destination); return; } //Show the result testMRTMaterial.SetTexture("_Tex0", sourTexture); testMRTMaterial.SetTexture("_Tex1", curTexture); //Graphics.Blit(curTexture, destination, testMRTMaterial, 2); Graphics.Blit(null, destination, testMRTMaterial, 2); } Dictionary<Renderer, Material[]> rendToMat = new Dictionary<Renderer, Material[]>(); void Clear(RenderTexture destTexture) { Graphics.SetRenderTarget(destTexture); GL.PushMatrix(); GL.Clear(true, true, Color.white); GL.PopMatrix(); } void InitCanYanTexture() { //effectCame; GameObject cameObj = new GameObject("effectCame"); cameObj.transform.parent = Camera.main.gameObject.transform; cameObj.transform.localPosition = Vector3.zero; effectCame = cameObj.AddComponent<Camera>(); effectCame.CopyFrom(Camera.main); effectCame.clearFlags = CameraClearFlags.SolidColor; effectCame.backgroundColor = Color.clear; effectCame.enabled = false; if (playRoot == null) if (GameObject.Find("Players")) playRoot = GameObject.Find("Players").transform; if (playRoot == null) playRoot = GameObject.Find("GameOnly").transform.FindChild("SceneParent/PlayerRoot"); Transform[] chs = playRoot.GetComponentsInChildren<Transform>(); int effectLayer = LayerMask.NameToLayer("ImageEffect"); for (int i = 0, iMax = chs.Length; i < iMax; i++) { chs[i].gameObject.layer = effectLayer; Renderer red = chs[i].GetComponent<Renderer>(); if (red != null) { if (red.sharedMaterial.shader.name == "Toon/Basic" || red.gameObject.name == "m_battle_box01"|| red is SkinnedMeshRenderer) { Material newMt = GameObject.Instantiate(CreateCanYinMaterial) as Material; newMt.mainTexture = red.sharedMaterial.mainTexture; rendToMat.Add(red, new Material[] { red.sharedMaterial, newMt }); } else Debuger.Log(red.sharedMaterial.shader.name); } } effectCame.cullingMask = 1 << effectLayer; canYanTexture = new RenderTexture(Screen.width, Screen.height, 24, RenderTextureFormat.ARGB32); effectCame.targetTexture = canYanTexture; camePos = Camera.main.transform.position; tarPos = tarObj.position; ccpos = Camera.main.transform.position - tarObj.position; } void CreateCanYanTexture() { int colorId = Shader.PropertyToID("_Color"); Shader sd = CreateCanYinMaterial.shader; float i = 0; foreach (KeyValuePair<Renderer, Material[]> pair in rendToMat) { i += 1f; Renderer rd = pair.Key; rd.sharedMaterial = rendToMat[rd][1]; rd.sharedMaterial.SetColor(colorId, new Color(0, 0, 1,0.7f+0.1f*i)); } //GL.Clear(true, true, Color.clear); effectCame.Render(); foreach (KeyValuePair<Renderer, Material[]> pair in rendToMat) { Renderer rd = pair.Key; rd.sharedMaterial = rendToMat[rd][0]; } } public Transform tarObj; Vector3 camePos = Vector3.zero; Vector3 tarPos = Vector3.zero; Vector3 ccpos = Vector3.zero; void Update() { //Camera.main.transform.position = tarObj.position + ccpos; } private Transform playRoot; IEnumerator ShowEffect() { InitCanYanTexture(); int ii = 0; Vector4 cameMove = Vector4.zero; while(true) { CreateCanYanTexture(); if (camePos != Camera.main.transform.position) { Vector3 newTarPos = tarObj.position; Vector2 pm1 = effectCame.WorldToScreenPoint(tarPos); Vector2 pm2 = effectCame.WorldToScreenPoint(newTarPos); tarPos = newTarPos; camePos = effectCame.transform.position; cameMove = pm2 - pm1; } cameMove.z = Screen.width; cameMove.w = Screen.height; yield return new WaitForSeconds(0.01f); int a = ii % 2;//0;// int b = ++ii % 2;//1;// curTexture = TextureA[a]; Graphics.SetRenderTarget(curTexture); GL.Clear(false, false, Color.clear); GL.PushMatrix(); GL.LoadOrtho(); testMRTMaterial.SetTexture("_Tex0", sourTexture); testMRTMaterial.SetTexture("_Tex1", TextureA[b]); testMRTMaterial.SetTexture("_MainTex", canYanTexture); testMRTMaterial.SetVector("_cameMove", cameMove); testMRTMaterial.SetPass(1); //Pass 0 outputs 2 render textures. GL.Begin(GL.QUADS); GL.TexCoord2(0.0f, 0); GL.Vertex3(0.0f, 0.0f, 0.1f); GL.TexCoord2(1.0f, 0); GL.Vertex3(1.0f, 0.0f, 0.1f); GL.TexCoord2(1.0f, 1); GL.Vertex3(1.0f, 1.0f, 0.1f); GL.TexCoord2(0.0f, 1); GL.Vertex3(0.0f, 1.0f, 0.1f); GL.End(); GL.PopMatrix(); } } }
