Android开发库VUtils之圆形头像CircleImageView
2016-03-21 10:07
651 查看
开发android也有很长的一段时间了,突然觉得android开发可以更简单,很多时候我们总是重复的做着一些事,比如自定义dialog,网络访问,圆形头像等。也许我们可以把他们封成一个库?用的时候直接拿过来,或稍加修改。那么,从今天开始,我要把我在项目中用到的融进VUtils,让android开发变的更简单!
圆形头像的实现网上代码已经很多,主要用到的技术是PorterDuffXfermode类,通过Paint的setXfermode方法设置并产生效果。(还不知道如何混合的,请看大神怎么说:aige的自定义View系列)
效果图:
在xml文件中直接使用:
注意,图像在onDraw过程中会对图像做压缩,居中处理,如有特殊需求请自行修改或留言。
圆形头像的实现网上代码已经很多,主要用到的技术是PorterDuffXfermode类,通过Paint的setXfermode方法设置并产生效果。(还不知道如何混合的,请看大神怎么说:aige的自定义View系列)

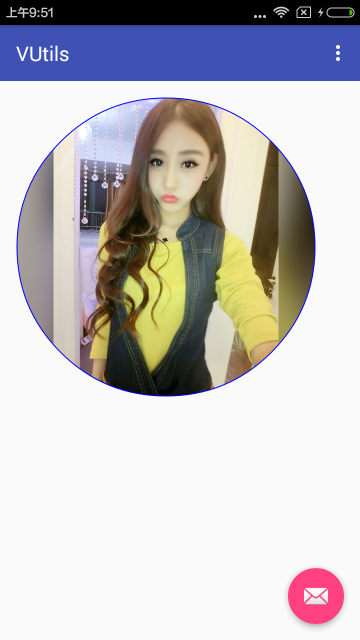

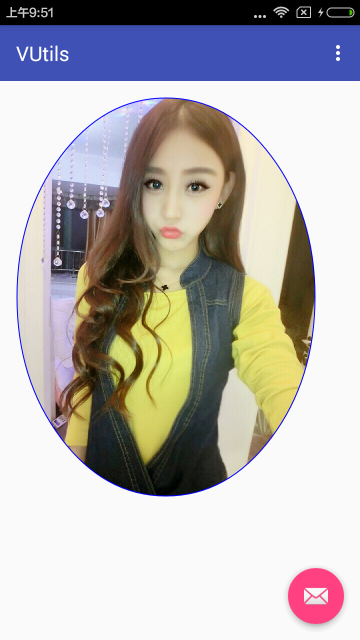

效果图:
package com.v.vutils.views; import android.content.Context; import android.graphics.Bitmap; import android.graphics.Canvas; import android.graphics.Color; import android.graphics.Paint; import android.graphics.PorterDuff; import android.graphics.PorterDuffXfermode; import android.graphics.Rect; import android.graphics.RectF; import android.graphics.drawable.Drawable; import android.util.AttributeSet; import android.util.Log; import android.widget.ImageView; public class CircleImageView extends ImageView { private Bitmap mask; private Paint paint; private Paint mBorderPaint; private int mBorderWidth = 2; private int mBorderColor = Color.BLUE; public CircleImageView(Context paramContext) { super(paramContext); } public CircleImageView(Context paramContext, AttributeSet paramAttributeSet) { this(paramContext, paramAttributeSet, 0); } public CircleImageView(Context context, AttributeSet paramAttributeSet, int paramInt) { super(context, paramAttributeSet, paramInt); // TypedArray a = context.obtainStyledAttributes(paramAttributeSet, R.styleable.CircularImage); // mBorderColor = a.getColor(R.styleable.CircularImage_border_color, mBorderColor); // float density = context.getResources().getDisplayMetrics().density; // 获取屏幕密度 // mBorderWidth = a.getDimensionPixelOffset(R.styleable.CircularImage_border_width, 0); // a.recycle(); } private boolean useDefaultStyle = false; public void setUseDefaultStyle(boolean useDefaultStyle) { this.useDefaultStyle = useDefaultStyle; } @Override protected void onDraw(Canvas canvas) { if (useDefaultStyle) { super.onDraw(canvas); return; } Drawable drawable = getDrawable(); if (drawable == null) { super.draw(canvas); return; } /** * 第一种方法,使用图层进行图片混合 */ Drawable localDrawable = editDrawable(drawable); drawCircleImage(canvas, localDrawable); /** * 第二种方法,创建新的画布,并在该画布上进行混合,生成混合后的bitmap, * 再将该bitmap画回到该View的原画布上 */ // Bitmap src = ((BitmapDrawable) drawable).getBitmap(); // Bitmap bitmap = createCircleImage(src); // canvas.drawBitmap(bitmap, 0, 0, null); // 对圆形图像进行描边 drawBorder(canvas, getWidth(), getHeight()); } private void drawCircleImage(Canvas canvas, Drawable localDrawable) { canvas.saveLayer(0, 0, getWidth(), getHeight(), null, Canvas.ALL_SAVE_FLAG); localDrawable.draw(canvas); if (mask == null) mask = createOvalBitmap(getWidth(), getHeight()); if (this.paint == null) { final Paint localPaint = new Paint(); localPaint.setFilterBitmap(false); localPaint.setAntiAlias(true); // 关键!DST_IN具体情况请查阅官方文档 localPaint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.DST_IN)); this.paint = localPaint; } canvas.drawBitmap(mask, 0, 0, paint); canvas.restore(); } private void drawBorder(Canvas canvas, final int width, final int height) { if (mBorderWidth == 0) { return; } if (mBorderPaint == null) { mBorderPaint = new Paint(); mBorderPaint.setStyle(Paint.Style.STROKE); mBorderPaint.setAntiAlias(true); mBorderPaint.setColor(mBorderColor); mBorderPaint.setStrokeWidth(mBorderWidth); } RectF rectF = new RectF(0 + mBorderWidth, 0 + mBorderWidth, width - mBorderWidth, height - mBorderWidth); canvas.drawOval(rectF, mBorderPaint); } private Drawable editDrawable(Drawable localDrawable) { int drawableWidth = localDrawable.getIntrinsicWidth(); int drawableHeight = localDrawable.getIntrinsicHeight(); Log.i("xxx", "" + drawableWidth + "," + drawableHeight); final int width = getWidth(); final int height = getHeight(); Log.i("xxx", "" + width + "," + height); float rw = (float) drawableWidth / (float) w d537 idth; float rh = (float) drawableHeight / (float) height; int dWidth; int dHeight; if (rw < rh) { dWidth = width; dHeight = (int) (drawableHeight / rw); //移动到中间的偏移量 int yOff = (dHeight - height) / 2; localDrawable.setBounds(0, -yOff, dWidth, dHeight - yOff); } else { dWidth = (int) (drawableWidth / rh); dHeight = height; int xOff = (dWidth - width) / 2; localDrawable.setBounds(-xOff, 0, dWidth - xOff, dHeight); } return localDrawable; } /** * 创建圆形画布 * * @param width * @param height * @return */ public Bitmap createOvalBitmap(final int width, final int height) { Bitmap localBitmap = Bitmap.createBitmap(width, height, Bitmap.Config.ARGB_8888); Canvas localCanvas = new Canvas(localBitmap); Paint localPaint = new Paint(); localPaint.setColor(Color.GREEN); localPaint.setAntiAlias(true); // 很重要!设置抗锯齿 int padding = mBorderWidth; RectF localRectF = new RectF(padding, padding, width - padding, height - padding); localCanvas.drawOval(localRectF, localPaint); return localBitmap; } private Bitmap createCircleImage(Bitmap source) { Bitmap target = Bitmap.createBitmap(getWidth(), getHeight(), Bitmap.Config.ARGB_8888); /** * 产生一个同样大小的画布 */ Canvas canvas = new Canvas(target); final Paint paint = new Paint(); paint.setAntiAlias(true); /** * 首先绘制圆形 */ int padding = mBorderWidth; RectF localRectF = new RectF(padding, padding, getWidth() - padding, getHeight() - padding); canvas.drawOval(localRectF, paint); /** * 使用SRC_IN */ paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.SRC_IN)); /** * 绘制图片 */ int sourceWidth = source.getWidth(); int sourceHeight = source.getHeight(); Log.i("xxx", "sourceWidth:" + sourceWidth + ",sourceHeight:" + sourceHeight); final int width = getWidth(); final int height = getHeight(); Log.i("xxx", "width:" + width + ",height:" + height); float rw = (float) sourceWidth / (float) width; float rh = (float) sourceHeight / (float) height; int dWidth; int dHeight; if (rw < rh) { dWidth = width; dHeight = (int) (sourceHeight / rw); //移动到中间的偏移量 int yOff = (dHeight - height) / 2; canvas.drawBitmap(source, new Rect(0, 0, sourceWidth, sourceHeight), new Rect(0, -yOff, dWidth, dHeight - yOff), paint); } else { dWidth = (int) (sourceWidth / rh); dHeight = height; int xOff = (dWidth - width) / 2; canvas.drawBitmap(source, new Rect(0, 0, sourceWidth, sourceHeight), new Rect(-xOff, 0, dWidth - xOff, dHeight), paint); } Log.i("xxx", "dWidth:" + dWidth + ",dHeight:" + dHeight); return target; } }
在xml文件中直接使用:
<!--圆形--> <com.v.vutils.views.CircleImageView android:layout_width="300dp" android:layout_height="300dp" android:src="@drawable/img1" /> <!--椭圆--> <com.v.vutils.views.CircleImageView android:layout_width="300dp" android:layout_height="400dp" android:src="@drawable/img1" />
注意,图像在onDraw过程中会对图像做压缩,居中处理,如有特殊需求请自行修改或留言。
