Android百分比布局
2016-01-18 14:44
453 查看
2015的google大会发布了百分比布局,大大减少了android开发的适配量,最近使用了下百分比布局。
首先要引入百分比布局支持库:
新建一个工程,在xml中添加如下代码:
需要注意,百分比布局要加入下面这行代码
<span style="color:#FF6600;">xmlns:app="http://schemas.android.com/apk/res-auto"</span>
<pre name="code" class="html"><android.support.percent.PercentRelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView
android:id="@+id/tv1"
android:layout_width="0dp"
android:layout_height="0dp"
android:layout_alignParentTop="true"
android:layout_centerHorizontal="true"
android:layout_marginTop="10dp"
android:background="#ff4040"
app:layout_heightPercent="20%"
app:layout_widthPercent="70%"
android:gravity="center"
android:text="tv1 父容器为屏幕"/>
<TextView
android:id="@+id/tv2"
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_below="@id/tv1"
android:background="#00ff00"
app:layout_heightPercent="30%"
app:layout_marginBottomPercent="10%"
app:layout_marginLeftPercent="10%"
app:layout_marginRightPercent="20%"
app:layout_marginTopPercent="10%"
android:gravity="center"
android:text="tv2 父容器为屏幕"/>
<android.support.percent.PercentRelativeLayout
android:background="#000000"
android:layout_width="match_parent"
android:layout_height="200dp"
android:layout_below="@id/tv2">
<TextView
android:id="@+id/tv3"
android:background="#00F3FF"
android:layout_width="0dp"
android:layout_height="0dp"
android:layout_centerInParent="true"
app:layout_heightPercent="20%"
app:layout_widthPercent="70%"
android:gravity="center"
android:text="tv3 父容器为黑色部分"
/>
</android.support.percent.PercentRelativeLayout>
</android.support.percent.PercentRelativeLayout>

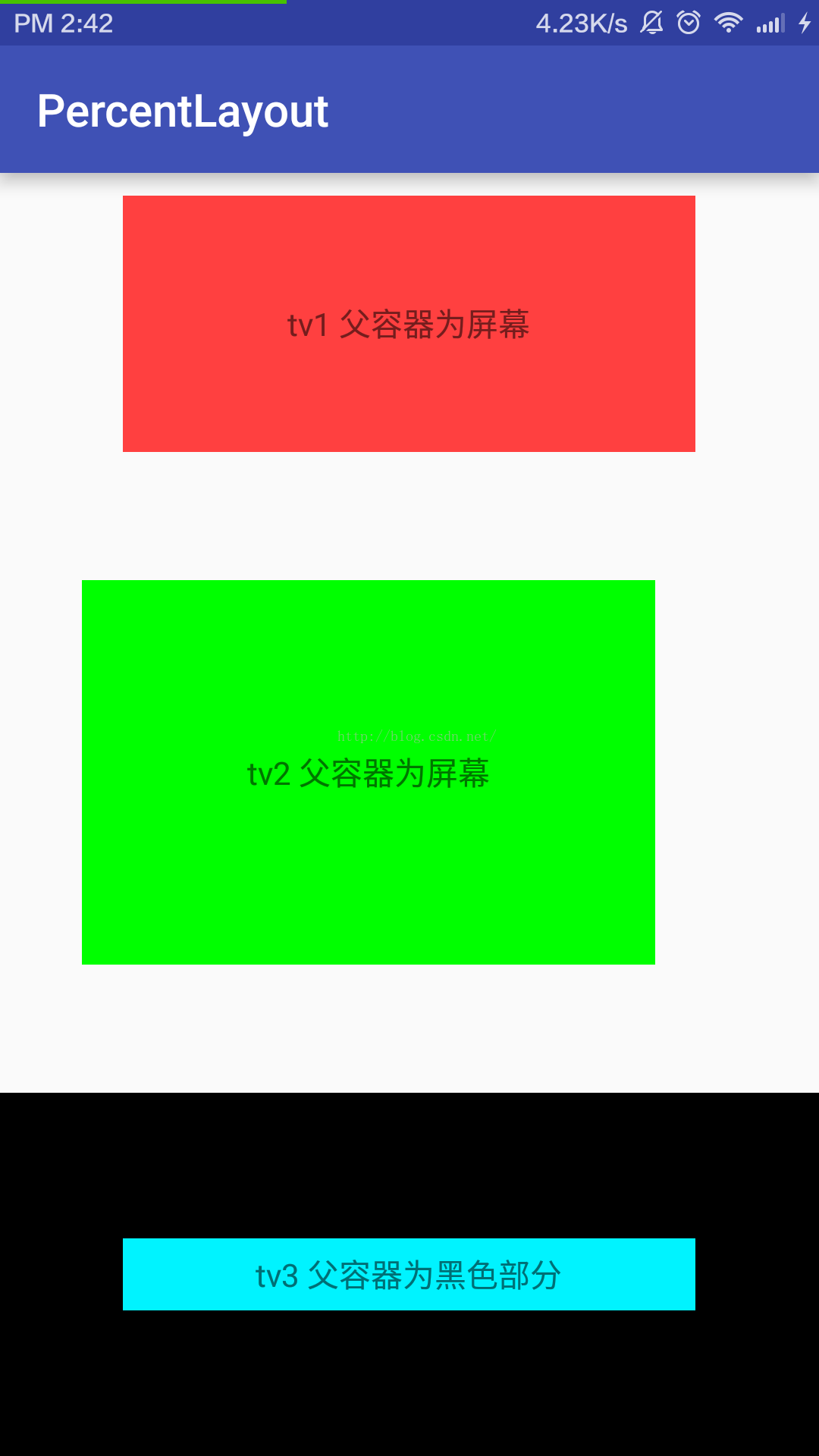

运行:
经验证发现此百分比是基于父容器。
首先要引入百分比布局支持库:
新建一个工程,在xml中添加如下代码:
需要注意,百分比布局要加入下面这行代码
<span style="color:#FF6600;">xmlns:app="http://schemas.android.com/apk/res-auto"</span>
<android.support.percent.PercentRelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" android:layout_width="match_parent" android:layout_height="match_parent"> </android.support.percent.PercentRelativeLayou在布局中添加如下三个view:
<pre name="code" class="html"><android.support.percent.PercentRelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView
android:id="@+id/tv1"
android:layout_width="0dp"
android:layout_height="0dp"
android:layout_alignParentTop="true"
android:layout_centerHorizontal="true"
android:layout_marginTop="10dp"
android:background="#ff4040"
app:layout_heightPercent="20%"
app:layout_widthPercent="70%"
android:gravity="center"
android:text="tv1 父容器为屏幕"/>
<TextView
android:id="@+id/tv2"
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_below="@id/tv1"
android:background="#00ff00"
app:layout_heightPercent="30%"
app:layout_marginBottomPercent="10%"
app:layout_marginLeftPercent="10%"
app:layout_marginRightPercent="20%"
app:layout_marginTopPercent="10%"
android:gravity="center"
android:text="tv2 父容器为屏幕"/>
<android.support.percent.PercentRelativeLayout
android:background="#000000"
android:layout_width="match_parent"
android:layout_height="200dp"
android:layout_below="@id/tv2">
<TextView
android:id="@+id/tv3"
android:background="#00F3FF"
android:layout_width="0dp"
android:layout_height="0dp"
android:layout_centerInParent="true"
app:layout_heightPercent="20%"
app:layout_widthPercent="70%"
android:gravity="center"
android:text="tv3 父容器为黑色部分"
/>
</android.support.percent.PercentRelativeLayout>
</android.support.percent.PercentRelativeLayout>
运行:
经验证发现此百分比是基于父容器。
