树---求二叉树两个节点的距离
2015-11-01 10:42
471 查看
一、问题描述

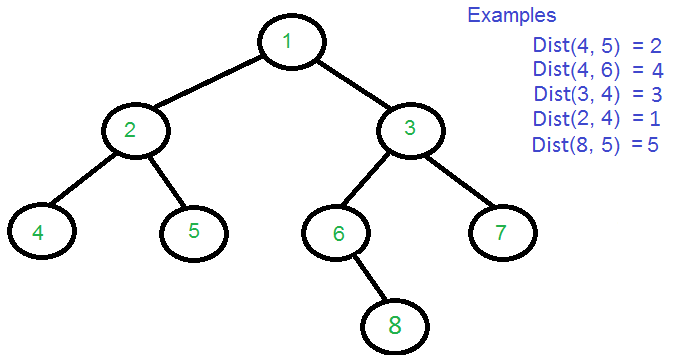

二叉树两节点距离是指从一个节点到达另一个节点需要的最少边数。如图:
二、问题求解
假设root是二叉树的根节点;n1和n2是给定二叉树的两个节点的数值。
lca是n1和n2的最小公共祖先;Dist(n1, n2)为n1和n2之间的距离。
因此,两节点距离的计算公式为:
三、代码
时间复杂度: O(n)
结果:
二叉树两节点距离是指从一个节点到达另一个节点需要的最少边数。如图:
二、问题求解
假设root是二叉树的根节点;n1和n2是给定二叉树的两个节点的数值。
lca是n1和n2的最小公共祖先;Dist(n1, n2)为n1和n2之间的距离。
因此,两节点距离的计算公式为:
Dist(n1, n2) = Dist(root, n1) + Dist(root, n2) - 2*Dist(root, lca)
三、代码
时间复杂度: O(n)
#include<iostream> using namespace std; typedef int KeyType; typedef struct BinaryTreeNode { KeyType key; struct BinaryTreeNode *left; struct BinaryTreeNode *right; }BTNode, *BiTree; //创建二叉树节点 BTNode *CreateBTNode(KeyType key) { BTNode *node = new BTNode; node->key = key; node->left = node->right = NULL; return node; } //对于给定的树中两节点n1和n2,返回两者lca的指针 BTNode *findLCA(BTNode *root, KeyType n1, KeyType n2) { if(root == NULL) return NULL; //(1)n1,n2中的一个是另一个的父节点,即为LCA if(root->key==n1 || root->key==n2) return root; //(2)n1,n2没有父子关系,这时又存在两种情况: //case1:同在一个子树。case2:分别在两个子树。 BTNode *left_lca=findLCA(root->left, n1, n2); BTNode *right_lca=findLCA(root->right, n1, n2); //都为真,说明两边子树都能找到n1或n2,这是case2的情况 if(left_lca && right_lca) return root;//当n1,n2分别在两个子树时lca即为根节点 //case1的情况 return (left_lca != NULL)?left_lca:right_lca; } //返回key节点在root中的第几层,-1表示没有在root子树下找到 int findLevel(BTNode *root, KeyType key, int level) { if(root==NULL) return -1; if(root->key==key) return level; //递归查找左子树 int lev=findLevel(root->left, key, level+1); if(lev==-1)//左子树没有找到则到右子树查找 return findLevel(root->right, key, level+1); else return lev; } //利用公式Dist(n1, n2)=Dist(root, n1)+Dist(root, n2)-2*Dist(root, lca) int NodesDistance(BTNode *root, KeyType n1, KeyType n2) { BTNode *lca = findLCA(root, n1, n2); int dis_lca = findLevel(root, lca->key, 0); int dis_n1 = findLevel(root, n1, 0); int dis_n2 = findLevel(root, n2, 0); //计算n1和n2的距离 int dis_n1_n2 = dis_n1 + dis_n2 - 2*dis_lca; return dis_n1_n2; } int main() { BTNode *root = CreateBTNode(1); root->left = CreateBTNode(2); root->right = CreateBTNode(3); root->left->left = CreateBTNode(4); root->left->right = CreateBTNode(5); root->right->left = CreateBTNode(6); root->right->right = CreateBTNode(7); root->right->left->right = CreateBTNode(8); cout <<"Distance(4, 5): "<<NodesDistance(root, 4, 5)<<endl; cout <<"Distance(4, 6): "<<NodesDistance(root, 4, 6)<<endl; cout <<"Distance(3, 4): "<<NodesDistance(root, 3, 4)<<endl; cout <<"Distance(2, 4): "<<NodesDistance(root, 2, 4)<<endl; cout <<"Distance(8, 5): "<<NodesDistance(root, 8, 5)<<endl; return 0; }
结果:
Distance(4, 5): 2 Distance(4, 6): 4 Distance(3, 4): 3 Distance(2, 4): 1 Distance(8, 5): 5 Process returned 0 (0x0) execution time : 0.158 s Press any key to continue.
