LRU的cache的实现
2015-09-11 00:22
543 查看
在网上看到一道面试题:LRU的cache设计,正好最近在学习memcached,于是很认真的研究了下这个问题
最笨的实现
一个数组,所有数据堆里边,每个数据维护一个时间(上一次被使用的时间),当查找某个数据的时候,遍历数组。当cache满的时候,需要遍历找到最久没变使用的记录,然后删除。这两个遍历充分暴露了这种实现的笨。
在网上搜了一下,看到大致有两种实现
1.直接利用linkedhashmap
2.使用hashmap+链表。
这两种思路是同一种思想,就是结合hashmap和链表进行存储
- hashmap可以实现快速查找
- 链表从表头到表尾是按从最近到最久访问的顺序维护的,这样当
需要失效最久未使用的时候直接把tail失效掉即可

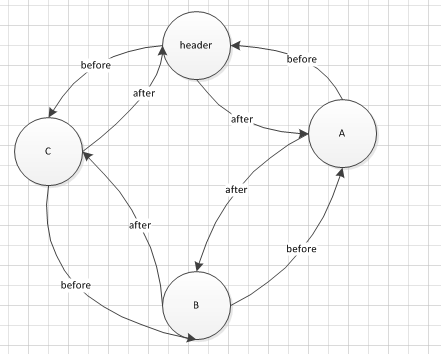

刚看到这边的时候想怎么只有header呢,按理说不应该维护header和tail么,后来经过研究,发现是一个环形的双向链表。so,header的before是链表头,header的fater是链表尾

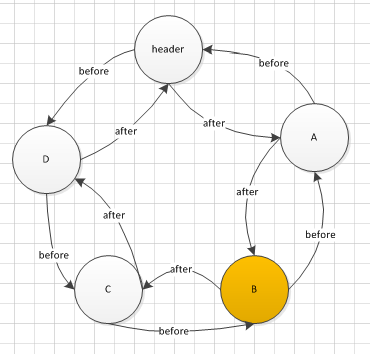

put(D)后的数据结构

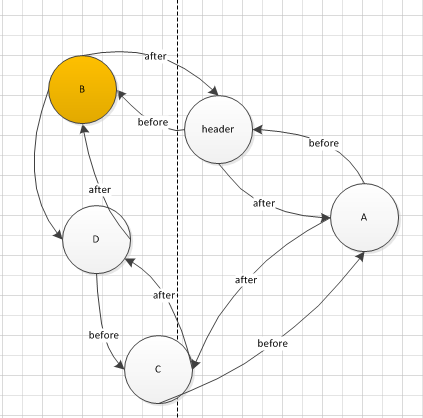

get(B)后,B在原位置删除,加到header的before的位置
linkedhashmap 已经把最核心的基础准备好了
removeEldestEntry方法默认是返回false,即不会删除链表尾的数据,这个地方需要重载一下这个方法
最笨的实现
一个数组,所有数据堆里边,每个数据维护一个时间(上一次被使用的时间),当查找某个数据的时候,遍历数组。当cache满的时候,需要遍历找到最久没变使用的记录,然后删除。这两个遍历充分暴露了这种实现的笨。
在网上搜了一下,看到大致有两种实现
1.直接利用linkedhashmap
2.使用hashmap+链表。
这两种思路是同一种思想,就是结合hashmap和链表进行存储
- hashmap可以实现快速查找
- 链表从表头到表尾是按从最近到最久访问的顺序维护的,这样当
需要失效最久未使用的时候直接把tail失效掉即可
linkedhashmap
private transient Entry header;
刚看到这边的时候想怎么只有header呢,按理说不应该维护header和tail么,后来经过研究,发现是一个环形的双向链表。so,header的before是链表头,header的fater是链表尾
put(D)后的数据结构
get(B)后,B在原位置删除,加到header的before的位置
private static class Entry extends HashMap.Entry { private void remove() { before.after = after; after.before = before; } private void addBefore(Entry entry) { after = entry; before = entry.before; before.after = this; after.before = this; } //最关键的一个方法,实现按访问先后排序 void recordAccess(HashMap hashmap) { LinkedHashMap linkedhashmap = (LinkedHashMap)hashmap; //accessOrder是否根据放入顺序排序的开关 if(linkedhashmap.accessOrder) { linkedhashmap.modCount++; //先删除 remove(); //再加入header的before位置 addBefore(linkedhashmap.header); } } Entry before; Entry after; }
linkedhashmap 已经把最核心的基础准备好了
void addEntry(int i, Object obj, Object obj1, int j) { createEntry(i, obj, obj1, j); Entry entry = header.after; if(removeEldestEntry(entry)) removeEntryForKey(entry.key); else if(size >= threshold) resize(2 * table.length); }
protected boolean removeEldestEntry(Map.Entry entry) { return false; }
removeEldestEntry方法默认是返回false,即不会删除链表尾的数据,这个地方需要重载一下这个方法
/** * Created by liuzhao on 14-5-15. */ public class LRUCache2<K, V> extends LinkedHashMap<K, V> { private final int MAX_CACHE_SIZE; public LRUCache2(int cacheSize) { super((int) Math.ceil(cacheSize / 0.75) + 1, 0.75f, true); MAX_CACHE_SIZE = cacheSize; } @Override protected boolean removeEldestEntry(Map.Entry eldest) { return size() > MAX_CACHE_SIZE; } }
hashmap+链表
package cache; import java.util.HashMap; /** * Created by liuzhao on 14-5-12. */ public class LRUCache1<K, V> { private final int MAX_CACHE_SIZE; private Entry first; private Entry last; private HashMap<K, Entry<K, V>> hashMap; public LRUCache1(int cacheSize) { MAX_CACHE_SIZE = cacheSize; hashMap = new HashMap<K, Entry<K, V>>(); } public void put(K key, V value) { Entry entry = getEntry(key); if (entry == null) { if (hashMap.size() >= MAX_CACHE_SIZE) { hashMap.remove(last.key); removeLast(); } entry = new Entry(); entry.key = key; } entry.value = value; moveToFirst(entry); hashMap.put(key, entry); } public V get(K key) { Entry<K, V> entry = getEntry(key); if (entry == null) return null; moveToFirst(entry); return entry.value; } public void remove(K key) { Entry entry = getEntry(key); if (entry != null) { if (entry.pre != null) entry.pre.next = entry.next; if (entry.next != null) entry.next.pre = entry.pre; if (entry == first) first = entry.next; if (entry == last) last = entry.pre; } hashMap.remove(key); } private void moveToFirst(Entry entry) { if (entry == first) return; if (entry.pre != null) { entry.pre.next = entry.next; } if (entry.next != null) { entry.next.pre = entry.pre; } if (entry == last) { last = last.pre; } if (first == null || last == null) { first = last = entry; return; } entry.next = first; first.pre = entry; first = entry; entry.pre = null; } private void removeLast() { if (last != null) { last = last.pre; if (last == null) first = null; else last.next = null; } } private Entry<K, V> getEntry(K key) { return hashMap.get(key); } @Override public String toString() { StringBuilder sb = new StringBuilder(); Entry entry = first; while (entry != null) { sb.append(String.format("%s:%s ", entry.key, entry.value)); entry = entry.next; } return sb.toString(); } class Entry<K, V> { public Entry pre; public Entry next; public K key; public V value; } static void lruCache1() { System.out.println(); System.out.println("===========================LRU 链表实现==========================="); LRUCache1<Integer, String> lru = new LRUCache1(5); lru.put(1, "11"); lru.put(2, "11"); lru.put(3, "11"); lru.put(4, "11"); lru.put(5, "11"); lru.put(5, "12"); System.out.println(lru.toString()); lru.put(6, "66"); lru.get(2); lru.put(7, "77"); lru.get(4); System.out.println(lru.toString()); System.out.println(); } public static void main(String[] args) { lruCache1(); } }
memcached的实现
使用内存保存数据总会有满的情况,满就得淘汰,而memcached中的淘汰机制是LRU(最近最少使用算法 ),所以每个slabclass都保存着一个LRU队列,而head[i]和tail[i]则就是id为i的slabclass LRU队列的头部和尾部,尾部的item是最应该淘汰的项,也就是最近最少使用的项。相关文章推荐
