android应用仿QQ使用fragment来实现

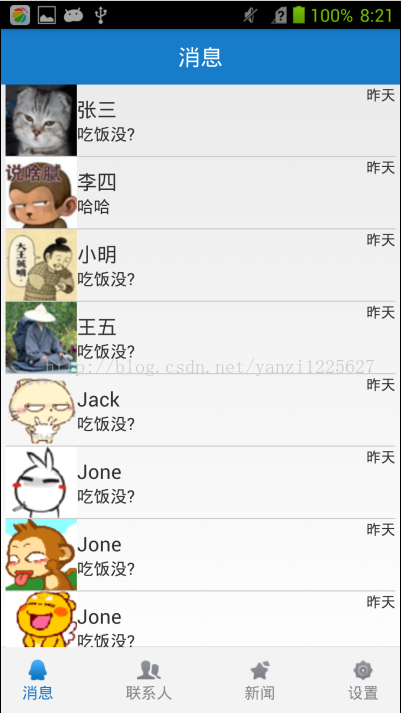

最近反复研究日常经典必用的几个android app，从主界面带来的交互方式入手进行分析，我将其大致分为三类。今天记录第一种方式，即主界面下面有几个tab页，最上端是标题栏，tab页和tab页之间不是通过滑动切换的，而是通过点击切换tab页。早期这种架构一直是使用tabhost+activitygroup来使用，随着fragment的出现及google官方也大力推荐使用fragment，后者大有代替前者之势。本文也使用fragment进行搭建，标题中的“经典”指这种交互经典，非本文的代码框架结构，欢迎大家提出指出不足，帮助完善。文中的fragment部分参考了郭神的博文(链接1 链接2 链接3)，代码也是在郭神代码基础上加入了自己对框架的理解。

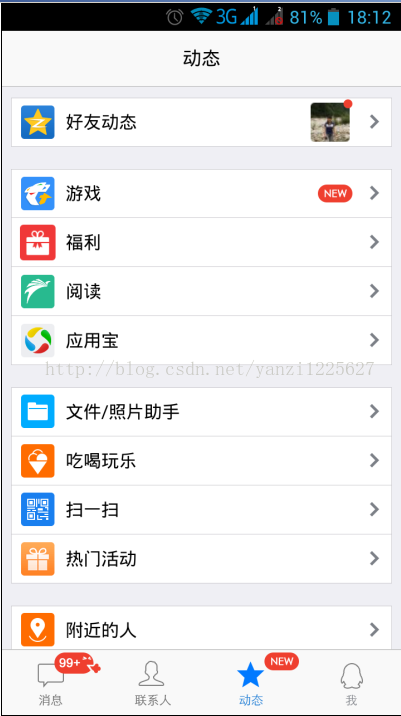

再次重申下这种主界面交互的特点:1,多个tab，不能滑动切换只能点击切换；2，上有标题栏。这种模式也是目前app中使用最多的。如qq、百度云盘、招商银行、微博、支付宝。几个月前支付宝还是能滑动切换的，后来取消了。视图如下:











下面本文从底部控制栏、顶部控制栏及中间的内容显示载体fragment三部分叙述。

一、底部控制栏

底部控制栏里每个控件都不是单一基础控件，上面是图片、下面是文字，右上角是红点，当有更新时红点显示，否则隐藏。另外像qq的右上角还能显示未读消息的个数，我的参考链接里是通过大量的layout一点一点搭出来的，这样的好处是方便控制比较直观，另外是可以利用Linearlayout里的layout_weight这个属性，让底部的这些item均匀分布，缺点是代码上有很多重复，维护起来不方便。既然是整理app的通用模板框架，因此我将每个item视为一个对象，然后将其放在底部就ok了。本代码里只封装了上面是图片下面是文字，右上角的红点么有封装进来。

ImageText.java就作了这样一件事:

[java] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;">package org.yanzi.ui;

import org.yanzi.constant.Constant;

import android.content.Context;

import android.graphics.Color;

import android.util.AttributeSet;

import android.view.LayoutInflater;

import android.view.MotionEvent;

import android.view.View;

import android.view.ViewGroup;

import android.widget.ImageView;

import android.widget.LinearLayout;

import android.widget.TextView;

import com.example.fragmentproject.R;

public class ImageText extends LinearLayout{

private Context mContext = null;

private ImageView mImageView = null;

private TextView mTextView = null;

private final static int DEFAULT_IMAGE_WIDTH = 64;

private final static int DEFAULT_IMAGE_HEIGHT = 64;

private int CHECKED_COLOR = Color.rgb(29, 118, 199); //选中蓝色

private int UNCHECKED_COLOR = Color.GRAY; //自然灰色

public ImageText(Context context) {

super(context);

// TODO Auto-generated constructor stub

mContext = context;

}

public ImageText(Context context, AttributeSet attrs) {

super(context, attrs);

// TODO Auto-generated constructor stub

mContext = context;

LayoutInflater inflater = (LayoutInflater) mContext.getSystemService(Context.LAYOUT_INFLATER_SERVICE);

View parentView = inflater.inflate(R.layout.image_text_layout, this, true);

mImageView = (ImageView)findViewById(R.id.image_iamge_text);

mTextView = (TextView)findViewById(R.id.text_iamge_text);

}

public void setImage(int id){

if(mImageView != null){

mImageView.setImageResource(id);

setImageSize(DEFAULT_IMAGE_WIDTH, DEFAULT_IMAGE_HEIGHT);

}

}

public void setText(String s){

if(mTextView != null){

mTextView.setText(s);

mTextView.setTextColor(UNCHECKED_COLOR);

}

}

@Override

public boolean onInterceptTouchEvent(MotionEvent ev) {

// TODO Auto-generated method stub

return true;

}

private void setImageSize(int w, int h){

if(mImageView != null){

ViewGroup.LayoutParams params = mImageView.getLayoutParams();

params.width = w;

params.height = h;

mImageView.setLayoutParams(params);

}

}

public void setChecked(int itemID){

if(mTextView != null){

mTextView.setTextColor(CHECKED_COLOR);

}

int checkDrawableId = -1;

switch (itemID){

case Constant.BTN_FLAG_MESSAGE:

checkDrawableId = R.drawable.message_selected;

break;

case Constant.BTN_FLAG_CONTACTS:

checkDrawableId = R.drawable.contacts_selected;

break;

case Constant.BTN_FLAG_NEWS:

checkDrawableId = R.drawable.news_selected;

break;

case Constant.BTN_FLAG_SETTING:

checkDrawableId = R.drawable.setting_selected;

break;

default:break;

}

if(mImageView != null){

mImageView.setImageResource(checkDrawableId);

}

}

}

</span>

对应的布局:

[html] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;"><?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="match_parent"

android:orientation="vertical" >

<ImageView

android:id="@+id/image_iamge_text"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal" />

<TextView

android:id="@+id/text_iamge_text"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_gravity="center_horizontal" />

</LinearLayout></span>

代码里用到了Constant.java，这里面放的都是常量：

[java] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;">package org.yanzi.constant;

public class Constant {

//Btn的标识

public static final int BTN_FLAG_MESSAGE = 0x01;

public static final int BTN_FLAG_CONTACTS = 0x01 << 1;

public static final int BTN_FLAG_NEWS = 0x01 << 2;

public static final int BTN_FLAG_SETTING = 0x01 << 3;

//Fragment的标识

public static final String FRAGMENT_FLAG_MESSAGE = "消息";

public static final String FRAGMENT_FLAG_CONTACTS = "联系人";

public static final String FRAGMENT_FLAG_NEWS = "新闻";

public static final String FRAGMENT_FLAG_SETTING = "设置";

public static final String FRAGMENT_FLAG_SIMPLE = "simple";

}

</span>

第一排是复合Button的标识，下面的string类型的是将来创建fragment的标识。

完成了ImageText之后，下面就是将4个这样的控件放到一个布局里。为了控制方便，我们将底部栏抽象为一个对象BottomControlPanel.java，这样在维护底部栏相关内容时直接找他就行了。BottomControlPanel继承自RelativeLayout，先来看它的布局:

bottom_panel_layout.xml

[html] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;"><?xml version="1.0" encoding="utf-8"?>

<org.yanzi.ui.BottomControlPanel xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="60dp"

android:layout_alignParentBottom="true"

android:gravity="center_vertical"

android:paddingLeft="20dp"

android:paddingRight="20dp" >

<org.yanzi.ui.ImageText

android:id="@+id/btn_message"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_alignParentLeft="true" />

<org.yanzi.ui.ImageText

android:id="@+id/btn_contacts"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_toRightOf="@id/btn_message" />

<org.yanzi.ui.ImageText

android:id="@+id/btn_news"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_toRightOf="@id/btn_contacts" />

<org.yanzi.ui.ImageText

android:id="@+id/btn_setting"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_alignParentRight="true" />

</org.yanzi.ui.BottomControlPanel></span>

对应的java文件:

BottomControlPanel.java

[java] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;">package org.yanzi.ui;

import java.util.ArrayList;

import java.util.List;

import org.yanzi.constant.Constant;

import android.content.Context;

import android.graphics.Color;

import android.util.AttributeSet;

import android.util.Log;

import android.view.View;

import android.widget.RelativeLayout;

import com.example.fragmentproject.R;

public class BottomControlPanel extends RelativeLayout implements View.OnClickListener {

private Context mContext;

private ImageText mMsgBtn = null;

private ImageText mContactsBtn = null;

private ImageText mNewsBtn = null;

private ImageText mSettingBtn = null;

private int DEFALUT_BACKGROUND_COLOR = Color.rgb(243, 243, 243); //Color.rgb(192, 192, 192)

private BottomPanelCallback mBottomCallback = null;

private List<ImageText> viewList = new ArrayList<ImageText>();

public interface BottomPanelCallback{

public void onBottomPanelClick(int itemId);

}

public BottomControlPanel(Context context, AttributeSet attrs) {

super(context, attrs);

// TODO Auto-generated constructor stub

}

@Override

protected void onFinishInflate() {

// TODO Auto-generated method stub

mMsgBtn = (ImageText)findViewById(R.id.btn_message);

mContactsBtn = (ImageText)findViewById(R.id.btn_contacts);

mNewsBtn = (ImageText)findViewById(R.id.btn_news);

mSettingBtn = (ImageText)findViewById(R.id.btn_setting);

setBackgroundColor(DEFALUT_BACKGROUND_COLOR);

viewList.add(mMsgBtn);

viewList.add(mContactsBtn);

viewList.add(mNewsBtn);

viewList.add(mSettingBtn);

}

public void initBottomPanel(){

if(mMsgBtn != null){

mMsgBtn.setImage(R.drawable.message_unselected);

mMsgBtn.setText("消息");

}

if(mContactsBtn != null){

mContactsBtn.setImage(R.drawable.contacts_unselected);

mContactsBtn.setText("联系人");

}

if(mNewsBtn != null){

mNewsBtn.setImage(R.drawable.news_unselected);

mNewsBtn.setText("新闻");

}

if(mSettingBtn != null){

mSettingBtn.setImage(R.drawable.setting_unselected);

mSettingBtn.setText("设置");

}

setBtnListener();

}

private void setBtnListener(){

int num = this.getChildCount();

for(int i = 0; i < num; i++){

View v = getChildAt(i);

if(v != null){

v.setOnClickListener(this);

}

}

}

public void setBottomCallback(BottomPanelCallback bottomCallback){

mBottomCallback = bottomCallback;

}

@Override

public void onClick(View v) {

// TODO Auto-generated method stub

initBottomPanel();

int index = -1;

switch(v.getId()){

case R.id.btn_message:

index = Constant.BTN_FLAG_MESSAGE;

mMsgBtn.setChecked(Constant.BTN_FLAG_MESSAGE);

break;

case R.id.btn_contacts:

index = Constant.BTN_FLAG_CONTACTS;

mContactsBtn.setChecked(Constant.BTN_FLAG_CONTACTS);

break;

case R.id.btn_news:

index = Constant.BTN_FLAG_NEWS;

mNewsBtn.setChecked(Constant.BTN_FLAG_NEWS);

break;

case R.id.btn_setting:

index = Constant.BTN_FLAG_SETTING;

mSettingBtn.setChecked(Constant.BTN_FLAG_SETTING);

break;

default:break;

}

if(mBottomCallback != null){

mBottomCallback.onBottomPanelClick(index);

}

}

public void defaultBtnChecked(){

if(mMsgBtn != null){

mMsgBtn.setChecked(Constant.BTN_FLAG_MESSAGE);

}

}

@Override

protected void onLayout(boolean changed, int left, int top, int right, int bottom) {

// TODO Auto-generated method stub

super.onLayout(changed, left, top, right, bottom);

layoutItems(left, top, right, bottom);

}

/**最左边和最右边的view由母布局的padding进行控制位置。这里需对第2、3个view的位置重新设置

* @param left

* @param top

* @param right

* @param bottom

*/

private void layoutItems(int left, int top, int right, int bottom){

int n = getChildCount();

if(n == 0){

return;

}

int paddingLeft = getPaddingLeft();

int paddingRight = getPaddingRight();

Log.i("yanguoqi", "paddingLeft = " + paddingLeft + " paddingRight = " + paddingRight);

int width = right - left;

int height = bottom - top;

Log.i("yanguoqi", "width = " + width + " height = " + height);

int allViewWidth = 0;

for(int i = 0; i< n; i++){

View v = getChildAt(i);

Log.i("yanguoqi", "v.getWidth() = " + v.getWidth());

allViewWidth += v.getWidth();

}

int blankWidth = (width - allViewWidth - paddingLeft - paddingRight) / (n - 1);

Log.i("yanguoqi", "blankV = " + blankWidth );

LayoutParams params1 = (LayoutParams) viewList.get(1).getLayoutParams();

params1.leftMargin = blankWidth;

viewList.get(1).setLayoutParams(params1);

LayoutParams params2 = (LayoutParams) viewList.get(2).getLayoutParams();

params2.leftMargin = blankWidth;

viewList.get(2).setLayoutParams(params2);

}

}

</span>

在onFinishInflate()函数里实例化里面的子元素，在initBottomPanel()里设置每个孩子的图片和文字、监听.onLayout()里对中间的2个孩子的位置进行调整，使其均匀分布，见我的前文。这个BottomControlPanel实现了View.OnClickListener接口，在onClick()里通过id来判断用户点击了哪一个孩子。判断出来后需要做两件事，一是对这个被点击的对象进行处理，如字体颜色、图片资源的变化，右上角小红点的隐藏等等。另一方面，BottomControlPanel要告诉将来它的主人，也就是Activity到底是点了哪个，通知Activity去切换fragment。可以看到，activity类似个总控中心，BottomControlPanel管理属于它的ImageText，同时上报Activity。Activity知道消息后再切换fragment，每个fragment都有自己的事务逻辑。

这里定义了

public interface BottomPanelCallback{

public void onBottomPanelClick(int itemId);

}这个接口，通过传递Id来通知Activity。defaultBtnChecked()函数是apk初次打开后，默认切换到第一个消息fragment上。

这里有个地方需要注意，就是虽然ImageText和BottomControlPanel都是自定义控件，但两者在方式上是有区别的。在ImageText的构造函数里通过inflater将布局加载进来，它对应的布局是个普通的布局。而BottomControlPanel对应的布局文件里，直接使用了定义的BottomControlPanel，在onFinishInflate函数里实例化孩子View。前者是inflate之后实例化的。在使用ImageText到一个新的母布局时是通过<org.yanzi.ui.ImageText
/>这种方式进行的，那么使用BottomControlPanel有何区别，请见下文介绍Activity的布局时。

二、顶部控制栏

有了底部控制栏，顶部控制栏就可以如法炮制了。这里先交代几句，虽然Android3.0 后Google推出的有ActionBar来做顶部导航栏，参见郭神的这篇博文。但我发现，本文最前面贴图的几款应用应该都没有使用ActionBar，因为它不够灵活。ActionBar使用起来什么样，大家看看微信就知道了，那个的顶部控制栏就是ActionBar做的，这个应该没跑。

通过观察，顶部控制栏除了标题居中外，在右上角通常会再放一个按钮。不是ImageView就是TextView，这里我为了方便放的是两个TextView，右侧的按钮效果可以再TextView上弄个背景来实现。

HeadControlPanel.java

[html] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;">package org.yanzi.ui;

import org.yanzi.constant.Constant;

import com.example.fragmentproject.R;

import android.content.Context;

import android.graphics.Color;

import android.util.AttributeSet;

import android.widget.RelativeLayout;

import android.widget.TextView;

public class HeadControlPanel extends RelativeLayout {

private Context mContext;

private TextView mMidleTitle;

private TextView mRightTitle;

private static final float middle_title_size = 20f;

private static final float right_title_size = 17f;

private static final int default_background_color = Color.rgb(23, 124, 202);

public HeadControlPanel(Context context, AttributeSet attrs) {

super(context, attrs);

// TODO Auto-generated constructor stub

}

@Override

protected void onFinishInflate() {

// TODO Auto-generated method stub

mMidleTitle = (TextView)findViewById(R.id.midle_title);

mRightTitle = (TextView)findViewById(R.id.right_title);

setBackgroundColor(default_background_color);

}

public void initHeadPanel(){

if(mMidleTitle != null){

setMiddleTitle(Constant.FRAGMENT_FLAG_MESSAGE);

}

}

public void setMiddleTitle(String s){

mMidleTitle.setText(s);

mMidleTitle.setTextSize(middle_title_size);

}

}

</span>

布局文件head_panel_layout.xml

[html] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;"><?xml version="1.0" encoding="utf-8"?>

<org.yanzi.ui.HeadControlPanel xmlns:android="http://schemas.android.com/apk/res/android"

android:layout_width="match_parent"

android:layout_height="50dp"

android:layout_alignParentTop="true">

<TextView

android:id="@+id/midle_title"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_centerInParent="true"

android:textColor="@android:color/white"/>

<TextView

android:id="@+id/right_title"

android:layout_width="wrap_content"

android:layout_height="wrap_content"

android:layout_alignParentRight="true"

android:textColor="@android:color/white"/>

</org.yanzi.ui.HeadControlPanel>

</span>

三、总控中心Activity和Fragment

先交代下Fragment的使用大致分两种，一种是将Fragment作为一个View写死在布局中，布局里使用android:name来告诉它对应的是哪个实体Fragment。这种添加fragment的方式不能delete和replace掉。另一种是通过获得activity的fragmentmanager和fragmentTransaction和进行动态的添加。这种方式更加灵活，一般使用此种方法。

先看Activity的布局activity_main.xml:

[html] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;"><RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

xmlns:tools="http://schemas.android.com/tools"

android:id="@+id/root_layout"

android:layout_width="match_parent"

android:layout_height="match_parent"

tools:context="org.yanzi.fragmentproject.MainActivity" >

<include

android:id="@+id/bottom_layout"

layout="@layout/bottom_panel_layout" />

<View

android:layout_width="match_parent"

android:layout_height="1dip"

android:layout_above="@id/bottom_layout"

android:background="#FFE7E7E7" />

<include

android:id="@+id/head_layout"

layout="@layout/head_panel_layout" />

<View

android:layout_width="match_parent"

android:layout_height="1dip"

android:layout_below="@id/head_layout"

android:background="#FFE7E7E7" />

<FrameLayout

android:id="@+id/fragment_content"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_below="@id/head_layout"

android:layout_above="@id/bottom_layout" >

</FrameLayout>

</RelativeLayout></span>

注意看这里是通过include的方式把刚才自定义的上下panel加过来，而不能直接用<org.yanzi.ui.BottomControlPanel />这种方式直接加载。当然如果也模仿ImageText的构造方式，也是可以这样用的。关于include方式的使用有几个注意事项，就是最好让它的母布局是RelativeLayout，否则的话很难控制include进来的布局的位置。另外，include布局的位置一定要写在include之前，如底部面板在最底部，android:layout_alignParentBottom="true"这句话是在bottom_panel_layout.xml里写的，如果写在activity_main.xml里就是无效的，这着实是个蛋疼的问题。再就是include后设置的id会覆盖掉以前的，所以这里只在include的时候设置id。其中的两个View是分割线。整体是按照底部栏、上部栏、中间Fragment的容器来放置的。

在放Fragment的时候需要注意，究竟是否要将顶部控制栏放到各自的fragment里合适还是放到Activity里合适要看具体情况，如果顶部栏里多是显示标题这种功能或少量的点击事件，应该放到Activity里，即顶部栏的事务逻辑和当前fragment的事务逻辑耦合的不是很紧。举个例子，比如微信的顶部栏，不管你处在哪个Tab页(聊天、发现、通讯录)，点击顶部栏里的按钮都呈现出同样的内容。但反过来讲，如果顶部栏里的事务逻辑和fragment耦合很紧，即在不同的fragment，顶部栏呈现的内容都不一样，且点击后处理的事务也和当前fragment紧密联系一起，那就应该一个fragment配套一个顶部栏，方便控制。本文是将两者分开的。所以让fragment的容器在顶部栏之下，底部栏之上，不这样写的话，就会遮挡。

<FrameLayout

android:id="@+id/fragment_content"

android:layout_width="match_parent"

android:layout_height="wrap_content"

android:layout_below="@id/head_layout"

android:layout_above="@id/bottom_layout" >

</FrameLayout>

MainActivity.java代码：

[java] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;">package org.yanzi.activity;

import org.yanzi.constant.Constant;

import org.yanzi.fragment.BaseFragment;

import org.yanzi.fragment.ContactsFragment;

import org.yanzi.fragment.MessageFragment;

import org.yanzi.fragment.NewsFragment;

import org.yanzi.fragment.SettingFragment;

import org.yanzi.ui.BottomControlPanel;

import org.yanzi.ui.BottomControlPanel.BottomPanelCallback;

import org.yanzi.ui.HeadControlPanel;

import android.app.Activity;

import android.app.Fragment;

import android.app.FragmentManager;

import android.app.FragmentTransaction;

import android.os.Bundle;

import android.text.TextUtils;

import android.util.Log;

import android.view.Menu;

import android.widget.Toast;

import com.example.fragmentproject.R;

public class MainActivity extends Activity implements BottomPanelCallback {

BottomControlPanel bottomPanel = null;

HeadControlPanel headPanel = null;

private FragmentManager fragmentManager = null;

private FragmentTransaction fragmentTransaction = null;

/* private MessageFragment messageFragment;

private ContactsFragment contactsFragment;

private NewsFragment newsFragment;

private SettingFragment settingFragment;*/

public static String currFragTag = "";

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

initUI();

fragmentManager = getFragmentManager();

setDefaultFirstFragment(Constant.FRAGMENT_FLAG_MESSAGE);

}

@Override

public boolean onCreateOptionsMenu(Menu menu) {

// Inflate the menu; this adds items to the action bar if it is present.

getMenuInflater().inflate(R.menu.main, menu);

return true;

}

private void initUI(){

bottomPanel = (BottomControlPanel)findViewById(R.id.bottom_layout);

if(bottomPanel != null){

bottomPanel.initBottomPanel();

bottomPanel.setBottomCallback(this);

}

headPanel = (HeadControlPanel)findViewById(R.id.head_layout);

if(headPanel != null){

headPanel.initHeadPanel();

}

}

/* 处理BottomControlPanel的回调

* @see org.yanzi.ui.BottomControlPanel.BottomPanelCallback#onBottomPanelClick(int)

*/

@Override

public void onBottomPanelClick(int itemId) {

// TODO Auto-generated method stub

String tag = "";

if((itemId & Constant.BTN_FLAG_MESSAGE) != 0){

tag = Constant.FRAGMENT_FLAG_MESSAGE;

}else if((itemId & Constant.BTN_FLAG_CONTACTS) != 0){

tag = Constant.FRAGMENT_FLAG_CONTACTS;

}else if((itemId & Constant.BTN_FLAG_NEWS) != 0){

tag = Constant.FRAGMENT_FLAG_NEWS;

}else if((itemId & Constant.BTN_FLAG_SETTING) != 0){

tag = Constant.FRAGMENT_FLAG_SETTING;

}

setTabSelection(tag); //切换Fragment

headPanel.setMiddleTitle(tag);//切换标题

}

private void setDefaultFirstFragment(String tag){

Log.i("yan", "setDefaultFirstFragment enter... currFragTag = " + currFragTag);

setTabSelection(tag);

bottomPanel.defaultBtnChecked();

Log.i("yan", "setDefaultFirstFragment exit...");

}

private void commitTransactions(String tag){

if (fragmentTransaction != null && !fragmentTransaction.isEmpty()) {

fragmentTransaction.commit();

currFragTag = tag;

fragmentTransaction = null;

}

}

private FragmentTransaction ensureTransaction( ){

if(fragmentTransaction == null){

fragmentTransaction = fragmentManager.beginTransaction();

fragmentTransaction

.setTransition(FragmentTransaction.TRANSIT_FRAGMENT_FADE);

}

return fragmentTransaction;

}

private void attachFragment(int layout, Fragment f, String tag){

if(f != null){

if(f.isDetached()){

ensureTransaction();

fragmentTransaction.attach(f);

}else if(!f.isAdded()){

ensureTransaction();

fragmentTransaction.add(layout, f, tag);

}

}

}

private Fragment getFragment(String tag){

Fragment f = fragmentManager.findFragmentByTag(tag);

if(f == null){

Toast.makeText(getApplicationContext(), "fragment = null tag = " + tag, Toast.LENGTH_SHORT).show();

f = BaseFragment.newInstance(getApplicationContext(), tag);

}

return f;

}

private void detachFragment(Fragment f){

if(f != null && !f.isDetached()){

ensureTransaction();

fragmentTransaction.detach(f);

}

}

/**切换fragment

* @param tag

*/

private void switchFragment(String tag){

if(TextUtils.equals(tag, currFragTag)){

return;

}

//把上一个fragment detach掉

if(currFragTag != null && !currFragTag.equals("")){

detachFragment(getFragment(currFragTag));

}

attachFragment(R.id.fragment_content, getFragment(tag), tag);

commitTransactions( tag);

}

/**设置选中的Tag

* @param tag

*/

public void setTabSelection(String tag) {

// 开启一个Fragment事务

fragmentTransaction = fragmentManager.beginTransaction();

/* if(TextUtils.equals(tag, Constant.FRAGMENT_FLAG_MESSAGE)){

if (messageFragment == null) {

messageFragment = new MessageFragment();

}

}else if(TextUtils.equals(tag, Constant.FRAGMENT_FLAG_CONTACTS)){

if (contactsFragment == null) {

contactsFragment = new ContactsFragment();

}

}else if(TextUtils.equals(tag, Constant.FRAGMENT_FLAG_NEWS)){

if (newsFragment == null) {

newsFragment = new NewsFragment();

}

}else if(TextUtils.equals(tag,Constant.FRAGMENT_FLAG_SETTING)){

if (settingFragment == null) {

settingFragment = new SettingFragment();

}

}else if(TextUtils.equals(tag, Constant.FRAGMENT_FLAG_SIMPLE)){

if (simpleFragment == null) {

simpleFragment = new SimpleFragment();

}

}*/

switchFragment(tag);

}

@Override

protected void onStop() {

// TODO Auto-generated method stub

super.onStop();

currFragTag = "";

}

@Override

protected void onSaveInstanceState(Bundle outState) {

// TODO Auto-generated method stub

}

}

</span>

注意这块我作了改动，不需要申明

/*
private MessageFragment messageFragment;

private ContactsFragment contactsFragment;

private NewsFragment newsFragment;

private SettingFragment settingFragment;*/

这些内容，因为Fragment的生成是通过BaseFragment.newInstance()来生成的，传进去Tag生成相应的Fragment。所有的Fragment，ContactsFragment、MessageFragment、NewsFragment、SettingFragment都继承自BaseFragment，通过BaseFragment里的newInstance()接口进行实例化对应的fragment。优点是方便管理，缺点么也有，因为java继承继承一个类，不能同时继承两个类。所以如ListFragment这些，就没法同时继承了。不过好在有listview这些，也妨碍不了我们做到同样的效果。

Activity里事件的入口是在onBottomPanelClick()监听点击了谁，然后：

setTabSelection(tag); //切换Fragment

headPanel.setMiddleTitle(tag);//切换标题

先切换Fragment再切换顶部栏的标题。setTabSelection()里直接调switchFragment(),在switchFragment函数里先判断标签是否一样，一样则意外着无需切换，否则的话就先把当前Fragment找到然后detach掉，之后进到attachFragment()函数里。在这里，先判断这个fragment是不是被detach掉的，如果是的话意味着之前曾被add过，所以只需attach就ok了。否则的话，意味着这是第一次，进行add.这里记录下Fragment的声明周期:

MessageFragment正常打开：

Line 155: 01-04 11:50:46.688 E/MessageFragment( 2546): onAttach-----

Line 159: 01-04 11:50:46.688 E/MessageFragment( 2546): onCreate------

Line 161: 01-04 11:50:46.693 D/MessageFragment( 2546): onCreateView---->

Line 165: 01-04 11:50:46.694 E/MessageFragment( 2546): onActivityCreated-------

Line 169: 01-04 11:50:46.694 E/MessageFragment( 2546): onStart----->

Line 173: 01-04 11:50:46.694 E/MessageFragment( 2546): onresume---->

返回键退出：

Line 183: 01-04 11:52:26.506 E/MessageFragment( 2546): onpause

Line 259: 01-04 11:52:27.131 E/MessageFragment( 2546): onStop

Line 263: 01-04 11:52:27.132 E/MessageFragment( 2546): ondestoryView

Line 269: 01-04 11:52:27.134 E/MessageFragment( 2546): ondestory

Line 271: 01-04 11:52:27.135 D/MessageFragment( 2546): onDetach------

按home按键退出:

Line 97: 01-05 05:06:15.659 E/MessageFragment(18835): onpause

Line 215: 01-05 05:06:16.292 E/MessageFragment(18835): onStop

再次打开：

Line 81: 01-05 05:07:02.408 E/MessageFragment(18835): onStart----->

Line 85: 01-05 05:07:02.408 E/MessageFragment(18835): onresume---->

通过detach的方式切换至其他Fragment：

Line 69: 01-04 11:53:33.381 E/MessageFragment( 2546): onpause

Line 73: 01-04 11:53:33.382 E/MessageFragment( 2546): onStop

Line 77: 01-04 11:53:33.382 E/MessageFragment( 2546): ondestoryView

再次切换过来:

Line 55: 01-04 11:54:59.462 D/MessageFragment( 2546): onCreateView---->

Line 59: 01-04 11:54:59.463 E/MessageFragment( 2546): onActivityCreated-------

Line 63: 01-04 11:54:59.463 E/MessageFragment( 2546): onStart----->

Line 67: 01-04 11:54:59.464 E/MessageFragment( 2546): onresume---->

四、适配器和MessageBean

本来要连数据库的，时间原因用个简单的MessageBean代替了。一个消息分联系人头像、名字、消息正文和时间四部分组成，封装到一个MessageBean里。

MessageBean.java

[java] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;">package org.yanzi.bean;

public class MessageBean {

private int PhotoDrawableId;

private String MessageName;

private String MessageContent;

private String MessageTime;

public MessageBean(){

}

public MessageBean(int photoDrawableId, String messageName,

String messageContent, String messageTime) {

super();

PhotoDrawableId = photoDrawableId;

MessageName = messageName;

MessageContent = messageContent;

MessageTime = messageTime;

}

public int getPhotoDrawableId() {

return PhotoDrawableId;

}

public void setPhotoDrawableId(int mPhotoDrawableId) {

this.PhotoDrawableId = mPhotoDrawableId;

}

public String getMessageName() {

return MessageName;

}

public void setMessageName(String messageName) {

MessageName = messageName;

}

public String getMessageContent() {

return MessageContent;

}

public void setMessageContent(String messageContent) {

MessageContent = messageContent;

}

public String getMessageTime() {

return MessageTime;

}

public void setMessageTime(String messageTime) {

MessageTime = messageTime;

}

@Override

public String toString() {

return "MessageBean [mPhotoDrawableId=" + PhotoDrawableId

+ ", MessageName=" + MessageName + ", MessageContent="

+ MessageContent + ", MessageTime=" + MessageTime + "]";

}

}

</span>

然后就是MessageFragment的ListView里的适配器，MessageAdapter.java

[java] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;">package org.yanzi.fragment.adapter;

import java.util.List;

import org.yanzi.bean.MessageBean;

import com.example.fragmentproject.R;

import android.content.Context;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.BaseAdapter;

import android.widget.ImageView;

import android.widget.TextView;

public class MessageAdapter extends BaseAdapter {

private List<MessageBean> mListMsgBean = null;

private Context mContext;

private LayoutInflater mInflater;

public MessageAdapter(List<MessageBean> listMsgBean, Context context){

mListMsgBean = listMsgBean;

mContext = context;

mInflater = LayoutInflater.from(mContext);

}

@Override

public int getCount() {

// TODO Auto-generated method stub

return mListMsgBean.size();

}

@Override

public Object getItem(int position) {

// TODO Auto-generated method stub

return mListMsgBean.get(position);

}

@Override

public long getItemId(int position) {

// TODO Auto-generated method stub

return position;

}

@Override

public View getView(int position, View convertView, ViewGroup parent) {

// TODO Auto-generated method stub

View v = mInflater.inflate(R.layout.message_item_layout, null);

ImageView imageView = (ImageView) v.findViewById(R.id.img_msg_item);

imageView.setImageResource(mListMsgBean.get(position).getPhotoDrawableId());

TextView nameMsg = (TextView)v.findViewById(R.id.name_msg_item);

nameMsg.setText(mListMsgBean.get(position).getMessageName());

TextView contentMsg = (TextView)v.findViewById(R.id.content_msg_item);

contentMsg.setText(mListMsgBean.get(position).getMessageContent());

TextView timeMsg = (TextView)v.findViewById(R.id.time_msg_item);

timeMsg.setText(mListMsgBean.get(position).getMessageTime());

return v;

}

}

</span>

因为是示例，getView里没用ViewHolder。

最后是MessageFragment里通过对listview设置适配器，将MessageBean作为信息的提供者也填充到适配器里。

MessageFragment.java代码：

[java] view
plaincopyprint?





<span style="font-family:Comic Sans MS;font-size:18px;">package org.yanzi.fragment;

import java.util.ArrayList;

import java.util.List;

import org.yanzi.activity.MainActivity;

import org.yanzi.bean.MessageBean;

import org.yanzi.constant.Constant;

import org.yanzi.fragment.adapter.MessageAdapter;

import android.app.Activity;

import android.os.Bundle;

import android.util.Log;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;

import android.widget.AdapterView;

import android.widget.Toast;

import android.widget.AdapterView.OnItemClickListener;

import android.widget.ListView;

import com.example.fragmentproject.R;

public class MessageFragment extends BaseFragment {

private static final String TAG = "MessageFragment";

private MainActivity mMainActivity ;

private ListView mListView;

private MessageAdapter mMsgAdapter;

private List<MessageBean> mMsgBean = new ArrayList<MessageBean>();

public View onCreateView(LayoutInflater inflater, ViewGroup container,

Bundle savedInstanceState) {

View messageLayout = inflater.inflate(R.layout.message_layout,

container, false);

Log.d(TAG, "onCreateView---->");

mMainActivity = (MainActivity) getActivity();

mFragmentManager = getActivity().getFragmentManager();

mListView = (ListView)messageLayout.findViewById(R.id.listview_message);

mMsgAdapter = new MessageAdapter(mMsgBean, mMainActivity);

mListView.setAdapter(mMsgAdapter);

mListView.setOnItemClickListener(new OnItemClickListener() {

@Override

public void onItemClick(AdapterView<?> parent, View view,

int position, long id) {

// TODO Auto-generated method stub

Toast.makeText(mMainActivity, mMsgBean.get(position).toString(),

Toast.LENGTH_SHORT).show();

}

});

return messageLayout;

}

@Override

public void onAttach(Activity activity) {

// TODO Auto-generated method stub

super.onAttach(activity);

Log.e(TAG, "onAttach-----");

}

@Override

public void onCreate(Bundle savedInstanceState) {

// TODO Auto-generated method stub

super.onCreate(savedInstanceState);

Log.e(TAG, "onCreate------");

mMsgBean.add(new MessageBean(R.drawable.ic_photo_1, "张三", "吃饭没?", "昨天"));

mMsgBean.add(new MessageBean(R.drawable.ic_photo_2, "李四", "哈哈", "昨天"));

mMsgBean.add(new MessageBean(R.drawable.ic_photo_3, "小明", "吃饭没?", "昨天"));

mMsgBean.add(new MessageBean(R.drawable.ic_photo_4, "王五", "吃饭没?", "昨天"));

mMsgBean.add(new MessageBean(R.drawable.ic_photo_5, "Jack", "吃饭没?", "昨天"));

mMsgBean.add(new MessageBean(R.drawable.ic_photo_6, "Jone", "吃饭没?", "昨天"));

mMsgBean.add(new MessageBean(R.drawable.ic_photo_7, "Jone", "吃饭没?", "昨天"));

mMsgBean.add(new MessageBean(R.drawable.ic_photo_8, "Jone", "吃饭没?", "昨天"));

mMsgBean.add(new MessageBean(R.drawable.ic_photo_9, "Jone", "吃饭没?", "昨天"));

}

@Override

public void onActivityCreated(Bundle savedInstanceState) {

// TODO Auto-generated method stub

super.onActivityCreated(savedInstanceState);

Log.e(TAG, "onActivityCreated-------");

}

@Override

public void onStart() {

// TODO Auto-generated method stub

super.onStart();

Log.e(TAG, "onStart----->");

}

@Override

public void onResume() {

// TODO Auto-generated method stub

super.onResume();

Log.e(TAG, "onresume---->");

MainActivity.currFragTag = Constant.FRAGMENT_FLAG_MESSAGE;

}

@Override

public void onPause() {

// TODO Auto-generated method stub

super.onPause();

Log.e(TAG, "onpause");

}

@Override

public void onStop() {

// TODO Auto-generated method stub

super.onStop();

Log.e(TAG, "onStop");

}

@Override

public void onDestroyView() {

// TODO Auto-generated method stub

super.onDestroyView();

Log.e(TAG, "ondestoryView");

}

@Override

public void onDestroy() {

// TODO Auto-generated method stub

super.onDestroy();

Log.e(TAG, "ondestory");

}

@Override

public void onDetach() {

// TODO Auto-generated method stub

super.onDetach();

Log.d(TAG, "onDetach------");

}

}

</span>

最后来看下效果吧，只有MessageFragment填充了数据：







横屏情况下:



--------------本文系原创，转载请注明作者yanzi1225627
