arcgis api for javascrpit 基于dojo框架的query查询功能1

2017-11-09 14:19 706 查看

实现思路：首先加载一个地图，然后调用查询功能，将符合条件的要素找出来，通过添加画图图层graphiclayer，将元素高亮，显示到页面上。

1.加载地图代码：

<html>
<head>
<title>dojo.map</title>
<link rel="stylesheet" type="text/css" href="http://serverapi.arcgisonline.com/jsapi/arcgis/2.0/js/dojo/dijit/themes/tundra/tundra.css" />
<script type="text/javascript" src="http://serverapi.arcgisonline.com/jsapi/arcgis?v=2.0"></script>
<script type="text/javascript">
dojo.require("esri.map");
var map;
function init(){
var startExtent = new esri.geometry.Extent({"xmin":73384,"ymin":251775,"xmax":133790,"ymax":321048,"spatialReference":{"wkid":102100}} );
//create map
map = new esri.Map("map", {extent: startExtent});
var tiledLayer1 = new esri.layers.ArcGISTiledMapServiceLayer("http://192.168.0.181/ArcGIS/rest/services/ModelPipe_BaseMap/MapServer");
map.addLayer(tiledLayer1);
}
dojo.addOnLoad(init);
</script>
</head>
<body>
<div id="map"></div>
</body>
</html>如图：

2.查看地图属性，并通过属性获取想要展示的点。

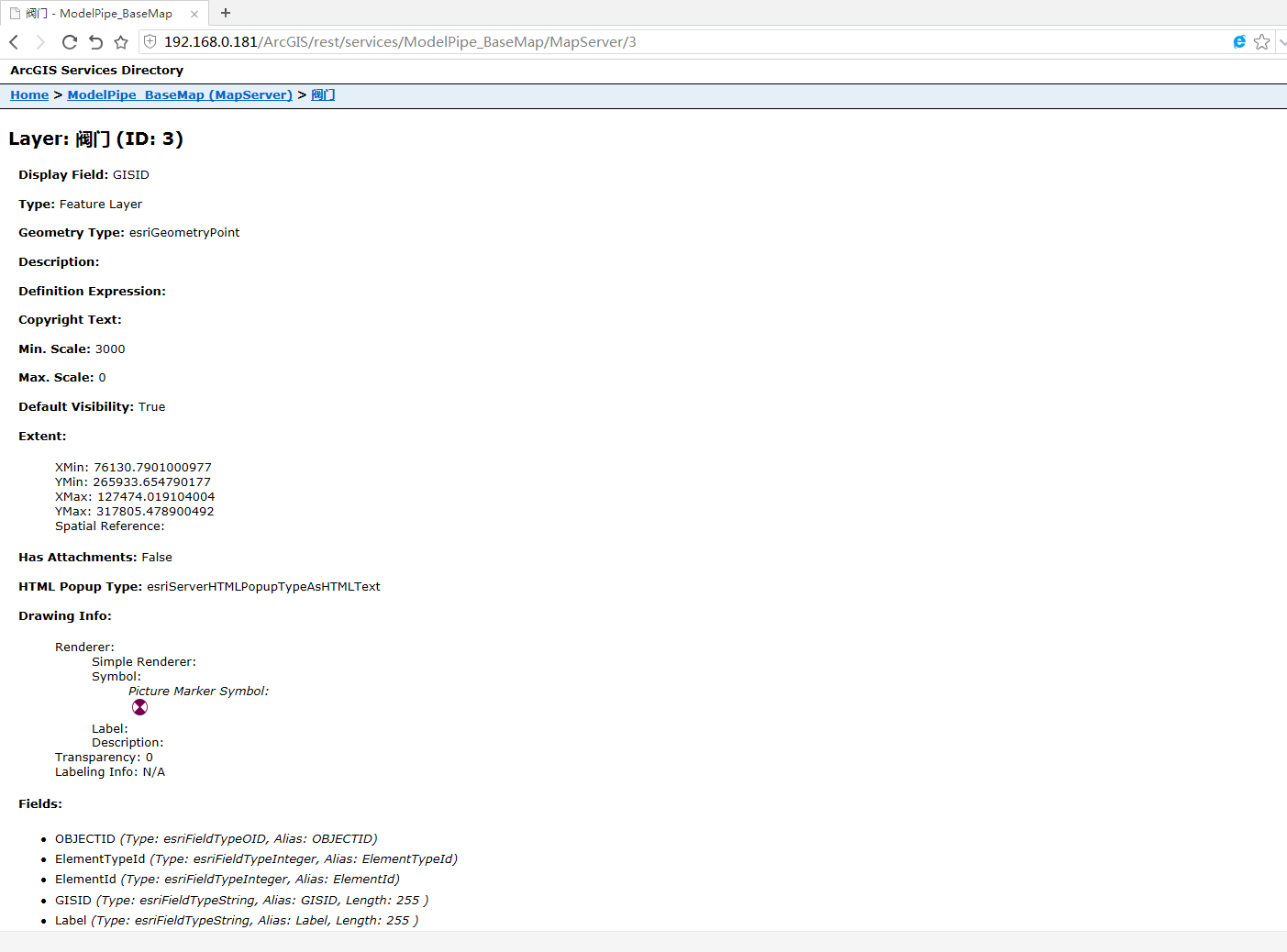

从浏览器中打开页面 http://192.168.0.181/ArcGIS/rest/services/ModelPipe_BaseMap/MapServer/3

如图：

图中Fields一栏表示属性，这里我们用OBJECTID=275139,来获取地图中一个元素，并将其高亮显示。然后将此元素的所有属性作为信息框中的内容放进地图中。

代码：

<html>
<head>
<title>dojo.map</title>
<link rel="stylesheet" type="text/css" href="http://serverapi.arcgisonline.com/jsapi/arcgis/2.0/js/dojo/dijit/themes/tundra/tundra.css" />
<script type="text/javascript" src="http://serverapi.arcgisonline.com/jsapi/arcgis?v=2.0"></script>
<script type="text/javascript">
dojo.require("esri.map");
dojo.require("esri.tasks.query");
var map;
function init(){
var startExtent = new esri.geometry.Extent({"xmin":73384,"ymin":251775,"xmax":133790,"ymax":321048,"spatialReference":{"wkid":102100}}
4000
);
//create map
map = new esri.Map("map", {extent: startExtent});
var tiledLayer1 = new esri.layers.ArcGISTiledMapServiceLayer("http://192.168.0.181/ArcGIS/rest/services/ModelPipe_BaseMap/MapServer");
map.addLayer(tiledLayer1);
}
dojo.addOnLoad(init);
function findPoint(ii){
var cityQueryTask = new esri.tasks.QueryTask("http://192.168.0.181/ArcGIS/rest/services/ModelPipe_BaseMap/MapServer/3");
var cityQuery = new esri.tasks.Query();
cityQuery.outFields=["*"];
cityQuery.returnGeometry=true;
cityQuery.outSpatialReference=map.spatialReference;
cityQuery.where="ElementId="+ii;
cityQueryTask.execute(cityQuery,addCityFeatureSetToMap);
}
function addCityFeatureSetToMap(featureSet){
var symbol = new esri.symbol.SimpleMarkerSymbol();
symbol.setColor(new dojo.Color([0, 0, 255]));
var infoTemplate = new esri.InfoTemplate("message", "${*}");
var graphiclayer=new esri.layers.GraphicsLayer();
map.addLayer(graphiclayer);
dojo.forEach(featureSet.features, function (feature) {
graphiclayer.add(feature.setSymbol(symbol).setInfoTemplate(infoTemplate));

});

}
</script>
</head>
<body>
<div id="map"></div>
<div onclick="findPoint('275139')">click me</div>
</body>
</html> 如图：

如图所示，点击按钮 click me ,则会有蓝点显示在地图上，点击蓝点，显示由query查询出来的所有相关属性。
