IOS MVVM 设计模式

开篇

转载自

MVC Model-View-Controller是一个用来组织代码的权威范式。Apple甚至是这么说的。在MVC下，所有的对象被归类为一个model，一个view，或一个controller。Model持有数据，View显示与用户交互的界面，而View Controller调解Model和View之间的交互。 MVVM MVVM的出现主要是为了解决在开发过程中Controller越来越庞大的问题，变得难以维护，所以MVVM把数据加工的任务从Controller中解放了出来，使得Controller只需要专注于数据调配的工作，ViewModel则去负责数据加工并通过通知机制让View响应ViewModel的改变。

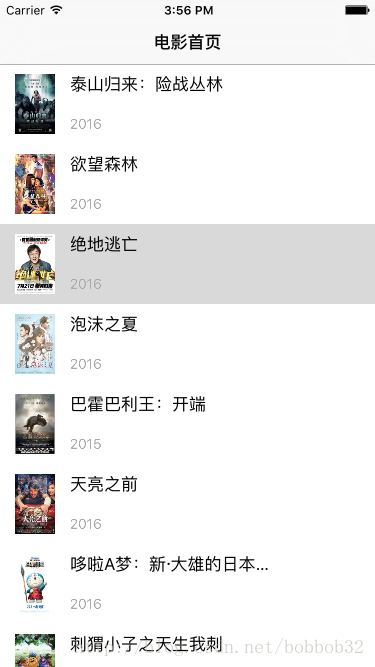

效果图



源码分析

1.Model模块

首先是model层的代码，创建MovieModel类，继承自NSObject。设置几个属性movieName、year、imageUrl、detailUrl（用于跳转）

#import <Foundation>

@interface MovieModel : NSObject
@property (strong, nonatomic) NSString *movieName;
@property (strong, nonatomic) NSString *year;
@property (strong, nonatomic) NSURL *imageUrl;
@property (strong, nonatomic) NSString *detailUrl;
@end

ViewController模块

ViewController里面是用来从MovieViewModel中获取数据信息然后展示到UITableView的cell上面，和点击单元格的页面跳转

#import "HomeViewController.h"
#import "MovieViewModel.h"
#import "MovieCell.h"
@interface HomeViewController ()<UITableViewDataSource>

@property (nonatomic,strong) NSArray *modelArray;
@end

@implementation HomeViewController

- (void)viewDidLoad {
[super viewDidLoad];
self.title = @"电影首页";
self.view.backgroundColor = [UIColor redColor];

UITableView *tableView = [[UITableView alloc] initWithFrame:self.view.bounds style:UITableViewStylePlain];
tableView.dataSource = self;
tableView.delegate = self;
tableView.rowHeight = 80;
[self.view addSubview:tableView];
[tableView registerClass:[MovieCell class] forCellReuseIdentifier:@"MovieCell"];

//初始化MovieViewModel，设置成功（returnBlock）和失败的回调（errorBlock），getMovieData去请求数据，请求数据成功即回调上一步设置的returnBlock，请求失败则回调errorBlock
MovieViewModel *viewModel = [[MovieViewModel alloc] init];
viewModel.returnBlock = ^(id returnValue){

_modelArray = returnValue;
[tableView reloadData];
};
viewModel.errorBlock = ^(id errorCode){

NSLog(@"%@",errorCode);
};

[viewModel getMovieData];

}

#pragma mark - UITableViewDataSource
- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section{
return _modelArray.count;
}

- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath{
MovieCell *cell = [tableView dequeueReusableCellWithIdentifier:@"MovieCell"];
cell.model = _modelArray[indexPath.row];
return cell;
}

- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath{
MovieViewModel *movieViewModel = [[MovieViewModel alloc] init];
[movieViewModel movieDetailWithPublicModel:_modelArray[indexPath.row] WithViewController:self];
}

@end

View模块

view这里跟MVC中子类化UITableViewCell一样，将model数据传进来，复写setModel方法给视图传递数据

#import "MovieModel.h"
@interface MovieCell : UITableViewCell
@property (nonatomic,strong) MovieModel *model;
@end

#import "MovieCell.h"
#import "UIImageView+AFNetworking.h"
@interface MovieCell()
@property (nonatomic,strong) UILabel *nameLabel;
@property (nonatomic,strong) UILabel *yearLabel;
@property (nonatomic,strong) UIImageView *imgView;
@end
@implementation MovieCell

- (instancetype)initWithStyle:(UITableViewCellStyle)style reuseIdentifier:(NSString *)reuseIdentifier{
self = [super initWithStyle:style reuseIdentifier:reuseIdentifier];
if (self) {
_imgView = [[UIImageView alloc] initWithFrame:CGRectMake(15, 10, 40, 60)];
[self.contentView addSubview:_imgView];

_nameLabel = [[UILabel alloc] initWithFrame:CGRectMake(70, 10, 200, 20)];
[self.contentView addSubview:_nameLabel];

_yearLabel = [[UILabel alloc] initWithFrame:CGRectMake(70, 50, 100, 20)];
_yearLabel.textColor = [UIColor lightGrayColor];
_yearLabel.font = [UIFont systemFontOfSize:14];
[self.contentView addSubview:_yearLabel];
}
return self;
}

- (void)setModel:(MovieModel *)model{
_model = model;
_nameLabel.text = _model.movieName;
_yearLabel.text = _model.year;
[_imgView setImageWithURL:_model.imageUrl];
}

@end

ViewModel模块

ViewModel是最重要的模块： 1.这里面进行了数据的网络请求，并将数据转换成model放在一个数组中，调用_returnBlock将model数组传递给viewController进行数据源的处理 2.将页面跳转的逻辑放在ViewModel中，点击单元格进行页面跳转的时候直接在- (void)tableView:(UITableView )tableView didSelectRowAtIndexPath:(NSIndexPath )indexPath中调用MovieViewModel的该方法即可

#import <Foundation>
#import "MovieModel.h"
#import <UIKit>

typedef void (^ReturnValueBlock) (id returnValue);
typedef void (^ErrorCodeBlock) (id errorCode);

@interface MovieViewModel : NSObject
@property (nonatomic,copy) ReturnValueBlock returnBlock;
@property (nonatomic,copy) ErrorCodeBlock errorBlock;

//获取电影数据
- (void)getMovieData;
//跳转到电影详情页
- (void)movieDetailWithPublicModel: (MovieModel *)movieModel WithViewController: (UIViewController *)superController;
@end

#import "MovieViewModel.h"
#import "NetworkService.h"
#import "MovieModel.h"
#import "MovieViewController.h"

@implementation MovieViewModel

- (void)getMovieData{
[NetworkService requestWithURL:@"/v2/movie/coming_soon" params:nil success:^(id result) {
NSLog(@"%@",result);

NSArray *subjects = result[@"subjects"];
NSMutableArray *modelArr = [NSMutableArray arrayWithCapacity:subjects.count];
for (NSDictionary *subject in subjects) {
MovieModel *model = [[MovieModel alloc] init];
model.movieName = subject[@"title"];
model.year = subject[@"year"];
NSString *urlStr = subject[@"images"][@"medium"];
model.imageUrl = [NSURL URLWithString:urlStr];
model.detailUrl = subject[@"alt"];
[modelArr addObject:model];
}
_returnBlock(modelArr);

} failure:^(NSError *error) {
NSLog(@"%@",error);
_errorBlock(error);
}];
}

- (void)movieDetailWithPublicModel: (MovieModel *)movieModel WithViewController: (UIViewController *)superController{
MovieViewController *movieVC = [[MovieViewController alloc] init];
movieVC.url = movieModel.detailUrl;
[superController.navigationController pushViewController:movieVC animated:YES];
}
@end
