spring核心IOC和AOP,终于到aop,看起来真心费力。
demo
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:ss="http://www.springframework.org/schema/security" xmlns:jee="http://www.springframework.org/schema/jee" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/jee http://www.springframework.org/schema/jee/spring-jee.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd" default-autowire="byName"> <aop:aspectj-autoproxy /> <bean id="test" class="qbb.aop.TestBean" /> <bean class="qbb.aop.AspectJTest" /> </beans>
public class TestBean { private String testStr = "testStr"; public String getTestStr() { return testStr; } public void setTestStr(String testStr) { this.testStr = testStr; } public void cout(){ System.out.println("test"); } }
@Aspect public class AspectJTest { @Pointcut("execution(* *.cout(..))") public void test(){ } @Before("test()") public void beforeTest(){ System.out.println("beforeTest"); } @After("test()") public void afterTest(){ System.out.println("afterTest"); } @Around("test()") public Object arroundTest(ProceedingJoinPoint p){ System.out.println("before1"); Object o = null; try { o = p.proceed(); }catch (Throwable e){ e.printStackTrace(); } System.out.println("after1"); return o; } }
test
public class AopTest { public static void main(String[] args){ ApplicationContext ctx = new ClassPathXmlApplicationContext("spring-aop.xml"); TestBean testBean = (TestBean) ctx.getBean("test"); testBean.cout(); } }
aop自定义标签分析
aop采用自定义标签解析。http\://www.springframework.org/schema/aop=org.springframework.aop.config.AopNamespaceHandler
http\://www.springframework.org/schema/aop/spring-aop-2.0.xsd=org/springframework/aop/config/spring-aop-2.0.xsd http\://www.springframework.org/schema/aop/spring-aop-2.5.xsd=org/springframework/aop/config/spring-aop-2.5.xsd http\://www.springframework.org/schema/aop/spring-aop-3.0.xsd=org/springframework/aop/config/spring-aop-3.0.xsd http\://www.springframework.org/schema/aop/spring-aop-3.1.xsd=org/springframework/aop/config/spring-aop-3.1.xsd http\://www.springframework.org/schema/aop/spring-aop.xsd=org/springframework/aop/config/spring-aop-3.1.xsd
标签的处理AopNamespaceHandler:
//AopNamespaceHandler public class AopNamespaceHandler extends NamespaceHandlerSupport { public void init() { // In 2.0 XSD as well as in 2.1 XSD. //处理xml中的配置advisor registerBeanDefinitionParser("config", new ConfigBeanDefinitionParser()); //注解的Aspect解析 registerBeanDefinitionParser("aspectj-autoproxy", new AspectJAutoProxyBeanDefinitionParser()); //下面2个没用过 registerBeanDefinitionDecorator("scoped-proxy", new ScopedProxyBeanDefinitionDecorator()); // Only in 2.0 XSD: moved to context namespace as of 2.1 registerBeanDefinitionParser("spring-configured", new SpringConfiguredBeanDefinitionParser()); } }
之前自定义标签看过,遇到自定义自定义标签,首先uri找到namespacehandler,调用init方法注册标签的解析beanDefinitionparser,然后调用beanDefinitionParser的parser解析返回beanDefinition注册到beanfactory里面去。
aop这里注册了不同的标签解析handler,主要看下aspectj-autoproxy的handlerAspectJAutoProxyBeanDefinitionParser。
//AspectJAutoProxyBeanDefinitionParser public BeanDefinition parse(Element element, ParserContext parserContext) { //解析aspectj-autoproxy标签 AopNamespaceUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(parserContext, element); //解析子标签 extendBeanDefinition(element, parserContext); return null; } //AopNamespaceUtils public static void registerAspectJAnnotationAutoProxyCreatorIfNecessary( ParserContext parserContext, Element sourceElement) { BeanDefinition beanDefinition = AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary( parserContext.getRegistry(), parserContext.extractSource(sourceElement)); //设置proxy-target-class和expose-proxy2个属性 useClassProxyingIfNecessary(parserContext.getRegistry(), sourceElement); //注册组件,然后fire registerComponentIfNecessary(beanDefinition, parserContext); } //AopConfigUtils public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry, Object source) { //注册或升级解析bean:AnnotationAwareAspectJAutoProxyCreator return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source); } private static BeanDefinition registerOrEscalateApcAsRequired(Class cls, BeanDefinitionRegistry registry, Object source) { Assert.notNull(registry, "BeanDefinitionRegistry must not be null"); //如果已经有,就比较优先级,改变beanClassName if (registry.containsBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME)) { BeanDefinition apcDefinition = registry.getBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME); if (!cls.getName().equals(apcDefinition.getBeanClassName())) { int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName()); int requiredPriority = findPriorityForClass(cls); if (currentPriority < requiredPriority) { apcDefinition.setBeanClassName(cls.getName()); } } return null; } RootBeanDefinition beanDefinition = new RootBeanDefinition(cls); beanDefinition.setSource(source); beanDefinition.getPropertyValues().add("order", Ordered.HIGHEST_PRECEDENCE); beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE); //注册beanDefinition,最终aop通过这个bean来实现 registry.registerBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME, beanDefinition); return beanDefinition; }
这里只是注册了一个解析bean,没有真正实现aop的功能,功能实现通过注册的bean:AnnotationAwareAspectJAutoProxyCreator在getbean的时候通过BeanPostProcessor实现。
AnnotationAwareAspectJAutoProxyCreator
AnnotationAwareAspectJAutoProxyCreator是实现了BeanPostProcessor(初始化前,初始化后处理器)和InstantiationAwareBeanPostProcessor(实例化前,实例化后处理器)2个接口来实现aop功能。
大致看下方法实现:
//AbstractAutoProxyCreator public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException { Object cacheKey = getCacheKey(beanClass, beanName); //缓存取现 if (!this.targetSourcedBeans.contains(cacheKey)) { //是否处理过或者不需要 if (this.advisedBeans.contains(cacheKey) || this.nonAdvisedBeans.contains(cacheKey)) { return null; } //是否基础类或者跳过 //isInfrastructureClass判断是否Advisor、Advice、AopInfrastructureBean //shouldSkip子类实现,如果aspect切面类和要代理的类名相同,那就skip if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) { this.nonAdvisedBeans.add(cacheKey); return null; } } // Create proxy here if we have a custom TargetSource. // Suppresses unnecessary default instantiation of the target bean: // The TargetSource will handle target instances in a custom fashion. // 自定义的TargetSource,如果你需要在运行时,动态切换代理实例或者新生成一个,就可以试试这个玩意 TargetSource targetSource = getCustomTargetSource(beanClass, beanName); if (targetSource != null) { this.targetSourcedBeans.add(beanName); //获取bean适配的Advice Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource); //创建代理 Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource); this.proxyTypes.put(cacheKey, proxy.getClass()); return proxy; } return null; } public boolean postProcessAfterInstantiation(Object bean, String beanName) { return true; } public Object postProcessBeforeInitialization(Object bean, String beanName) { return bean; } public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException { if (bean != null) { Object cacheKey = getCacheKey(bean.getClass(), beanName); if (!this.earlyProxyReferences.contains(cacheKey)) { return wrapIfNecessary(bean, beanName, cacheKey); } } return bean; } //是否需要aop解析 protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) { if (this.targetSourcedBeans.contains(beanName)) { return bean; } if (this.nonAdvisedBeans.contains(cacheKey)) { return bean; } if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) { this.nonAdvisedBeans.add(cacheKey); return bean; } // Create proxy if we have advice. Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null); if (specificInterceptors != DO_NOT_PROXY) { this.advisedBeans.add(cacheKey); Object proxy = createProxy(bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean)); this.proxyTypes.put(cacheKey, proxy.getClass()); return proxy; } this.nonAdvisedBeans.add(cacheKey); return bean; }
最重要的2个方法
//获取适合的advise getAdvicesAndAdvisorsForBean //创建代理类 createProxy
getAdvicesAndAdvisorsForBean获取适合的advise
//AbstractAdvisorAutoProxyCreator protected Object[] getAdvicesAndAdvisorsForBean(Class beanClass, String beanName, TargetSource targetSource) { List advisors = findEligibleAdvisors(beanClass, beanName); if (advisors.isEmpty()) { return DO_NOT_PROXY; } return advisors.toArray(); } //获取匹配的Advisor protected List<Advisor> findEligibleAdvisors(Class beanClass, String beanName) { //获取所有Advisor List<Advisor> candidateAdvisors = findCandidateAdvisors(); //获取匹配的 List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName); extendAdvisors(eligibleAdvisors); if (!eligibleAdvisors.isEmpty()) { eligibleAdvisors = sortAdvisors(eligibleAdvisors); } return eligibleAdvisors; }
逻辑清晰,首先获取所有的advisor,然后找到匹配当前bean的advisor。
findCandidateAdvisors获取所有的advisor
// AnnotationAwareAspectJAutoProxyCreator // 获取所有的advisor protected List<Advisor> findCandidateAdvisors() { // Add all the Spring advisors found according to superclass rules. // 获取xml里面配置advisor List<Advisor> advisors = super.findCandidateAdvisors(); // Build Advisors for all AspectJ aspects in the bean factory. // 获取aspect注解的advisor advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors()); return advisors; }
findCandidateAdvisors获取xml里面配置的advisor分2步:
1. 从beanfactory中获取beanNameType为Advisor的所有beanNames;
2. 从beanfactory中getBean,创建这些advisor的bean。
buildAspectJAdvisors获取注解Aspect的advisor
// BeanFactoryAspectJAdvisorsBuilder // 获取注解Aspect的advisor public List<Advisor> buildAspectJAdvisors() { List<String> aspectNames = null; synchronized (this) { aspectNames = this.aspectBeanNames; if (aspectNames == null) { List<Advisor> advisors = new LinkedList<Advisor>(); aspectNames = new LinkedList<String>(); String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(this.beanFactory, Object.class, true, false); for (String beanName : beanNames) { if (!isEligibleBean(beanName)) { continue; } // We must be careful not to instantiate beans eagerly as in this // case they would be cached by the Spring container but would not // have been weaved Class beanType = this.beanFactory.getType(beanName); if (beanType == null) { continue; } // 过滤类型必须为Aspect类型 if (this.advisorFactory.isAspect(beanType)) { aspectNames.add(beanName); // AspectMetadata是aspect的元数据 AspectMetadata amd = new AspectMetadata(beanType, beanName); // 默认就是SINGLETON if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) { // factory的实现可以保证AspectMetadata实例化一次 MetadataAwareAspectInstanceFactory factory = new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName); // 获取注解Aspect的advisor List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory); if (this.beanFactory.isSingleton(beanName)) { this.advisorsCache.put(beanName, classAdvisors); } else { this.aspectFactoryCache.put(beanName, factory); } advisors.addAll(classAdvisors); } else { // Per target or per this. if (this.beanFactory.isSingleton(beanName)) { throw new IllegalArgumentException("Bean with name '" + beanName + "' is a singleton, but aspect instantiation model is not singleton"); } MetadataAwareAspectInstanceFactory factory = new PrototypeAspectInstanceFactory(this.beanFactory, beanName); this.aspectFactoryCache.put(beanName, factory); advisors.addAll(this.advisorFactory.getAdvisors(factory)); } } } this.aspectBeanNames = aspectNames; return advisors; } } if (aspectNames.isEmpty()) { return Collections.EMPTY_LIST; } //如果已经处理过了,直接从缓存取 List<Advisor> advisors = new LinkedList<Advisor>(); for (String aspectName : aspectNames) { List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName); if (cachedAdvisors != null) { advisors.addAll(cachedAdvisors); } else { MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName); advisors.addAll(this.advisorFactory.getAdvisors(factory)); } } return advisors; }
首先看是否解析过Aspect元数据,没解析过就重头开始,解析过就从缓存里面取wrap的factory,获取advisor。
getAdvisors
//ReflectiveAspectJAdvisorFactory public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory maaif) { // 都是通过Aspect元数据的来解析,解析标记Aspect的类的class final Class<?> aspectClass = maaif.getAspectMetadata().getAspectClass(); // 获取name final String aspectName = maaif.getAspectMetadata().getAspectName(); // 校验aspect类的是否有注解Aspect,为Singleton validate(aspectClass); // We need to wrap the MetadataAwareAspectInstanceFactory with a decorator // so that it will only instantiate once. // 保证元数据Aspect生成的实例唯一 final MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory = new LazySingletonAspectInstanceFactoryDecorator(maaif); final List<Advisor> advisors = new LinkedList<Advisor>(); // doWithMethods的时候不但解析本Aspect,如果有Superclass,也会,如果不是superlclass,是接口的话,解析所有接口的 ReflectionUtils.doWithMethods(aspectClass, new ReflectionUtils.MethodCallback() { public void doWith(Method method) throws IllegalArgumentException { // Exclude pointcuts // 不解析pointCut注解,这个注解是在匹配canApplay的getClassFilter过滤时处理 if (AnnotationUtils.getAnnotation(method, Pointcut.class) == null) { // 解析方法上的advisor Advisor advisor = getAdvisor(method, lazySingletonAspectInstanceFactory, advisors.size(), aspectName); if (advisor != null) { advisors.add(advisor); } } } }); // If it's a per target aspect, emit the dummy instantiating aspect. // advisor不为空,且配置的是延迟初始化,加入同步实例化advisor if (!advisors.isEmpty() && lazySingletonAspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) { Advisor instantiationAdvisor = new SyntheticInstantiationAdvisor(lazySingletonAspectInstanceFactory); advisors.add(0, instantiationAdvisor); } // Find introduction fields. // declareParents注解 for (Field field : aspectClass.getDeclaredFields()) { Advisor advisor = getDeclareParentsAdvisor(field); if (advisor != null) { advisors.add(advisor); } } return advisors; }
看到处理方式是对Aspect类的非pointcut方法进行解析:
//ReflectiveAspectJAdvisorFactory public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aif, int declarationOrderInAspect, String aspectName) { validate(aif.getAspectMetadata().getAspectClass()); // 方法注解上的注解表达式 // 注解:Before, Around, After, AfterReturning, AfterThrowing, Pointcut AspectJExpressionPointcut ajexp = getPointcut(candidateAdviceMethod, aif.getAspectMetadata().getAspectClass()); if (ajexp == null) { return null; } // 封装advisor,构造会区分不同注解的Advice return new InstantiationModelAwarePointcutAdvisorImpl( this, ajexp, aif, candidateAdviceMethod, declarationOrderInAspect, aspectName); } //获取注解表达式 private AspectJExpressionPointcut getPointcut(Method candidateAdviceMethod, Class<?> candidateAspectClass) { // 注解:Before, Around, After, AfterReturning, AfterThrowing, Pointcut AspectJAnnotation<?> aspectJAnnotation = AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod); if (aspectJAnnotation == null) { return null; } // 解析注解表达式,只是单纯注解上表达式,不会关联pointcut AspectJExpressionPointcut ajexp = new AspectJExpressionPointcut(candidateAspectClass, new String[0], new Class[0]); ajexp.setExpression(aspectJAnnotation.getPointcutExpression()); return ajexp; }
注意在解析method上注解表达式后会根据统一封装成InstantiationModelAwarePointcutAdvisorImpl,该类的构造会区分不同的Advice:
// ReflectiveAspectJAdvisorFactory public Advice getAdvice(Method candidateAdviceMethod, AspectJExpressionPointcut ajexp, MetadataAwareAspectInstanceFactory aif, int declarationOrderInAspect, String aspectName) { Class<?> candidateAspectClass = aif.getAspectMetadata().getAspectClass(); validate(candidateAspectClass); AspectJAnnotation<?> aspectJAnnotation = AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod); if (aspectJAnnotation == null) { return null; } ... AbstractAspectJAdvice springAdvice; switch (aspectJAnnotation.getAnnotationType()) { case AtBefore: springAdvice = new AspectJMethodBeforeAdvice(candidateAdviceMethod, ajexp, aif); break; case AtAfter: springAdvice = new AspectJAfterAdvice(candidateAdviceMethod, ajexp, aif); break; case AtAfterReturning: springAdvice = new AspectJAfterReturningAdvice(candidateAdviceMethod, ajexp, aif); AfterReturning afterReturningAnnotation = (AfterReturning) aspectJAnnotation.getAnnotation(); if (StringUtils.hasText(afterReturningAnnotation.returning())) { springAdvice.setReturningName(afterReturningAnnotation.returning()); } break; case AtAfterThrowing: springAdvice = new AspectJAfterThrowingAdvice(candidateAdviceMethod, ajexp, aif); AfterThrowing afterThrowingAnnotation = (AfterThrowing) aspectJAnnotation.getAnnotation(); if (StringUtils.hasText(afterThrowingAnnotation.throwing())) { springAdvice.setThrowingName(afterThrowingAnnotation.throwing()); } break; case AtAround: springAdvice = new AspectJAroundAdvice(candidateAdviceMethod, ajexp, aif); break; case AtPointcut: if (logger.isDebugEnabled()) { logger.debug("Processing pointcut '" + candidateAdviceMethod.getName() + "'"); } return null; default: throw new UnsupportedOperationException( "Unsupported advice type on method " + candidateAdviceMethod); } // Now to configure the advice... springAdvice.setAspectName(aspectName); springAdvice.setDeclarationOrder(declarationOrderInAspect); String[] argNames = this.parameterNameDiscoverer.getParameterNames(candidateAdviceMethod); if (argNames != null) { springAdvice.setArgumentNamesFromStringArray(argNames); } springAdvice.calculateArgumentBindings(); return springAdvice; }

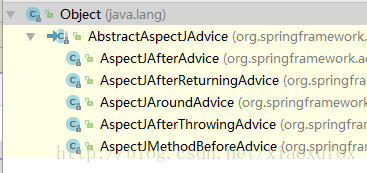

不同的注解对应不同的封装。虽然都是Advice的封装,但是AspectJMethodBeforeAdvice、AspectJAfterReturningAdvice不是通过MethodInterceptor实现,其他几个是通过MethodInterceptor的invoke实现,
不过最后的最后所有Advice都会统一封装成MethodInterceptor的实现类。
记得一点:所有的Advice最后都会封装成MethodInterceptor实现类。
findAdvisorsThatCanApply匹配当前bean的advisor
// AbstractAdvisorAutoProxyCreator protected List<Advisor> findAdvisorsThatCanApply( List<Advisor> candidateAdvisors, Class beanClass, String beanName) { ProxyCreationContext.setCurrentProxiedBeanName(beanName); try { // 在找到所有advisor后,再查找匹配当前要代理bean的advisor return AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass); } finally { ProxyCreationContext.setCurrentProxiedBeanName(null); } } // AopUtils public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) { if (candidateAdvisors.isEmpty()) { return candidateAdvisors; } List<Advisor> eligibleAdvisors = new LinkedList<Advisor>(); for (Advisor candidate : candidateAdvisors) { // 引介增强 if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) { eligibleAdvisors.add(candidate); } } boolean hasIntroductions = !eligibleAdvisors.isEmpty(); for (Advisor candidate : candidateAdvisors) { // 过滤处理过的 if (candidate instanceof IntroductionAdvisor) { // already processed continue; } // 匹配 if (canApply(candidate, clazz, hasIntroductions)) { eligibleAdvisors.add(candidate); } } return eligibleAdvisors; } // 查找是否匹配 public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) { // 引介增强 if (advisor instanceof IntroductionAdvisor) { return ((IntroductionAdvisor) advisor).getClassFilter().matches(targetClass); } else if (advisor instanceof PointcutAdvisor) { // 一般的advisor PointcutAdvisor pca = (PointcutAdvisor) advisor; return canApply(pca.getPointcut(), targetClass, hasIntroductions); } else { // It doesn't have a pointcut so we assume it applies. return true; } }
里面有个特殊的引介IntroductionAdvisor,当已经有一个类,你想在运行时动态的为这个类增加一些运行方法(相当于又实现了其他接口方法),就可以尝试引介advisor。
canApply
// AopUtils public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) { // 在getClassFilter调用中buildPointcutExpression方法完成PointCut注解的解析,这里是匹配类级别 if (!pc.getClassFilter().matches(targetClass)) { return false; } MethodMatcher methodMatcher = pc.getMethodMatcher(); IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null; if (methodMatcher instanceof IntroductionAwareMethodMatcher) { introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher; } // 获取目标代理类的所有实现接口 Set<Class> classes = new HashSet<Class>(ClassUtils.getAllInterfacesForClassAsSet(targetClass)); classes.add(targetClass); for (Class<?> clazz : classes) { Method[] methods = clazz.getMethods(); for (Method method : methods) { // 匹配方法级 if ((introductionAwareMethodMatcher != null && introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions)) || methodMatcher.matches(method, targetClass)) { return true; } } } return false; }
这里首先完成pointcut注解的解析,然后匹配类级别,然后对目标类的每个实现方法,完成方法级别的匹配,里面太复杂,看了几遍,还是有些细节没把握好。
createProxy创建代理类
在找到目标类的所有匹配的advisor后,开始创建代理对象。// AbstractAutoProxyCreator protected Object createProxy( Class<?> beanClass, String beanName, Object[] specificInterceptors, TargetSource targetSource) { ProxyFactory proxyFactory = new ProxyFactory(); // Copy our properties (proxyTargetClass etc) inherited from ProxyConfig. // 复制一些属性 other.optimize; proxyTargetClass\optimize\exposeProxy\frozen\opaque proxyFactory.copyFrom(this); // 给定的bean是否使用targetClass作为target还是接口代理 // 基本是proxyTargetClass和bean配置的preserveTargetClass2个属性值 if (!shouldProxyTargetClass(beanClass, beanName)) { // Must allow for introductions; can't just set interfaces to // the target's interfaces only. // 加入所有实现接口 Class<?>[] targetInterfaces = ClassUtils.getAllInterfacesForClass(beanClass, this.proxyClassLoader); for (Class<?> targetInterface : targetInterfaces) { proxyFactory.addInterface(targetInterface); } } // 对之前匹配的advisor处理下 Advisor[] advisors = buildAdvisors(beanName, specificInterceptors); for (Advisor advisor : advisors) { proxyFactory.addAdvisor(advisor); } proxyFactory.setTargetSource(targetSource); customizeProxyFactory(proxyFactory); //子类实现,可以更改一些设置 proxyFactory.setFrozen(this.freezeProxy); if (advisorsPreFiltered()) { proxyFactory.setPreFiltered(true); } // 获取代理 return proxyFactory.getProxy(this.proxyClassLoader); }
buildAdvisors
// AbstractAutoProxyCreator protected Advisor[] buildAdvisors(String beanName, Object[] specificInterceptors) { // Handle prototypes correctly... // 解析this.interceptorNames中的Advisor,通过beanName获取bean,加到advisor里面,说实话,暂时没看到有调用设置的地方,可以pass先 // 可以配置一些通用的 Advisor[] commonInterceptors = resolveInterceptorNames(); List<Object> allInterceptors = new ArrayList<Object>(); if (specificInterceptors != null) { // 当前匹配的 allInterceptors.addAll(Arrays.asList(specificInterceptors)); if (commonInterceptors != null) { if (this.applyCommonInterceptorsFirst) { allInterceptors.addAll(0, Arrays.asList(commonInterceptors)); } else { allInterceptors.addAll(Arrays.asList(commonInterceptors)); } } } if (logger.isDebugEnabled()) { int nrOfCommonInterceptors = (commonInterceptors != null ? commonInterceptors.length : 0); int nrOfSpecificInterceptors = (specificInterceptors != null ? specificInterceptors.length : 0); logger.debug("Creating implicit proxy for bean '" + beanName + "' with " + nrOfCommonInterceptors + " common interceptors and " + nrOfSpecificInterceptors + " specific interceptors"); } Advisor[] advisors = new Advisor[allInterceptors.size()]; for (int i = 0; i < allInterceptors.size(); i++) { // wrap操作:统一封装成advisor advisors[i] = this.advisorAdapterRegistry.wrap(allInterceptors.get(i)); } return advisors; } // DefaultAdvisorAdapterRegistry // 将拦截器,advisor、advice什么的都统一封装成advisor先 public Advisor wrap(Object adviceObject) throws UnknownAdviceTypeException { if (adviceObject instanceof Advisor) { return (Advisor) adviceObject; } if (!(adviceObject instanceof Advice)) { throw new UnknownAdviceTypeException(adviceObject); } Advice advice = (Advice) adviceObject; if (advice instanceof MethodInterceptor) { // So well-known it doesn't even need an adapter. return new DefaultPointcutAdvisor(advice); } for (AdvisorAdapter adapter : this.adapters) { // Check that it is supported. if (adapter.supportsAdvice(advice)) { return new DefaultPointcutAdvisor(advice); } } throw new UnknownAdviceTypeException(advice); }
可以认为buildAdvisors,这一步是将所有拦截器、advisor、Advice什么的都统一封装成Advisor,方便后面处理。
getProxy创建代理对象
// ProxyFactory public Object getProxy(ClassLoader classLoader) { // 创建代理,生成代理对象 return createAopProxy().getProxy(classLoader); }
createAopProxy创建代理
// ProxyFactory protected final synchronized AopProxy createAopProxy() { if (!this.active) { activate(); } return getAopProxyFactory().createAopProxy(this); } // DefaultAopProxyFactory // 决定是jdk代理还是cglib代理 public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException { if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) { Class targetClass = config.getTargetClass(); if (targetClass == null) { throw new AopConfigException("TargetSource cannot determine target class: " + "Either an interface or a target is required for proxy creation."); } if (targetClass.isInterface()) { return new JdkDynamicAopProxy(config); } if (!cglibAvailable) { throw new AopConfigException( "Cannot proxy target class because CGLIB2 is not available. " + "Add CGLIB to the class path or specify proxy interfaces."); } return CglibProxyFactory.createCglibProxy(config); } else { return new JdkDynamicAopProxy(config); } }
这里主要是决定是jdk代理还是cglib代理。 jdk只能代理接口,所以如果目标类有实现接口的情况,aop配置proxyTargetClass=true,那就cglib,否则jdk代理,没有实现接口,那只能cglib代理。
JdkDynamicAopProxy
jdk动态代理通过InvocationHandler的invoke方法。// JdkDynamicAopProxy public Object invoke(Object proxy, Method method, Object[] args) throws Throwable { MethodInvocation invocation; Object oldProxy = null; boolean setProxyContext = false; TargetSource targetSource = this.advised.targetSource; Class targetClass = null; Object target = null; try { // equals\hashCode方法,内部直接调用返回 if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) { // The target does not implement the equals(Object) method itself. return equals(args[0]); } if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) { // The target does not implement the hashCode() method itself. return hashCode(); } if (!this.advised.opaque && method.getDeclaringClass().isInterface() && method.getDeclaringClass().isAssignableFrom(Advised.class)) { // Service invocations on ProxyConfig with the proxy config... return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args); } Object retVal; // 内部调用是否拦截,通过配置exposeProxy控制 if (this.advised.exposeProxy) { // Make invocation available if necessary. oldProxy = AopContext.setCurrentProxy(proxy); setProxyContext = true; } // May be null. Get as late as possible to minimize the time we "own" the target, // in case it comes from a pool. target = targetSource.getTarget(); if (target != null) { targetClass = target.getClass(); } // Get the interception chain for this method. // 所有拦截器-会将之前没有实现MethodInterceptor的advice全部转为实现该接口的类 List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass); // Check whether we have any advice. If we don't, we can fallback on direct // reflective invocation of the target, and avoid creating a MethodInvocation. if (chain.isEmpty()) { // We can skip creating a MethodInvocation: just invoke the target directly // Note that the final invoker must be an InvokerInterceptor so we know it does // nothing but a reflective operation on the target, and no hot swapping or fancy proxying. // 拦截器链空,直接调用 retVal = AopUtils.invokeJoinpointUsingReflection(target, method, args); } else { // We need to create a method invocation... invocation = new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain); // Proceed to the joinpoint through the interceptor chain. // 拦截器链调用 retVal = invocation.proceed(); } // Massage return value if necessary. if (retVal != null && retVal == target && method.getReturnType().isInstance(proxy) && !RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) { // Special case: it returned "this" and the return type of the method // is type-compatible. Note that we can't help if the target sets // a reference to itself in another returned object. retVal = proxy; } return retVal; } finally { if (target != null && !targetSource.isStatic()) { // Must have come from TargetSource. targetSource.releaseTarget(target); } if (setProxyContext) { // Restore old proxy. AopContext.setCurrentProxy(oldProxy); } } }
getInterceptorsAndDynamicInterceptionAdvice
这一步主要是回去方法匹配的拦截器链。// DefaultAdvisorChainFactory public List<Object> getInterceptorsAndDynamicInterceptionAdvice( Advised config, Method method, Class targetClass) { // This is somewhat tricky... we have to process introductions first, // but we need to preserve order in the ultimate list. List<Object> interceptorList = new ArrayList<Object>(config.getAdvisors().length); boolean hasIntroductions = hasMatchingIntroductions(config, targetClass); AdvisorAdapterRegistry registry = GlobalAdvisorAdapterRegistry.getInstance(); // 对所有advisor循环判断 for (Advisor advisor : config.getAdvisors()) { if (advisor instanceof PointcutAdvisor) { // Add it conditionally. PointcutAdvisor pointcutAdvisor = (PointcutAdvisor) advisor; // 类是否匹配 if (config.isPreFiltered() || pointcutAdvisor.getPointcut().getClassFilter().matches(targetClass)) { // 这里做转换,没有实现methodInterceptor的做适配 MethodInterceptor[] interceptors = registry.getInterceptors(advisor); MethodMatcher mm = pointcutAdvisor.getPointcut().getMethodMatcher(); // 方法是否匹配 if (MethodMatchers.matches(mm, method, targetClass, hasIntroductions)) { if (mm.isRuntime()) { // Creating a new object instance in the getInterceptors() method // isn't a problem as we normally cache created chains. for (MethodInterceptor interceptor : interceptors) { // 又做一层封装InterceptorAndDynamicMethodMatcher,累死 interceptorList.add(new InterceptorAndDynamicMethodMatcher(interceptor, mm)); } } else { interceptorList.addAll(Arrays.asList(interceptors)); } } } } else if (advisor instanceof IntroductionAdvisor) { // 引介增强处理 IntroductionAdvisor ia = (IntroductionAdvisor) advisor; if (config.isPreFiltered() || ia.getClassFilter().matches(targetClass)) { Interceptor[] interceptors = registry.getInterceptors(advisor); interceptorList.addAll(Arrays.asList(interceptors)); } } else { // 其他 Interceptor[] interceptors = registry.getInterceptors(advisor); interceptorList.addAll(Arrays.asList(interceptors)); } } return interceptorList; }
看下registry.getInterceptors适配:
// DefaultAdvisorAdapterRegistry public MethodInterceptor[] getInterceptors(Advisor advisor) throws UnknownAdviceTypeException { List<MethodInterceptor> interceptors = new ArrayList<MethodInterceptor>(3); Advice advice = advisor.getAdvice(); // 除下面那3个其他都是实现MethodInterceptor if (advice instanceof MethodInterceptor) { interceptors.add((MethodInterceptor) advice); } // 做适配MethodBeforeAdviceAdapter\AfterReturningAdviceAdapter\ThrowsAdviceAdapter for (AdvisorAdapter adapter : this.adapters) { if (adapter.supportsAdvice(advice)) { interceptors.add(adapter.getInterceptor(advisor)); } } if (interceptors.isEmpty()) { throw new UnknownAdviceTypeException(advisor.getAdvice()); } return interceptors.toArray(new MethodInterceptor[interceptors.size()]); }
看文档都是说最后统一转成methodInterceptor处理,一直疑惑在哪里做的转换,这段代码找了好久。
invocation-proceed
在封装好所有适配的拦截器链后,通过ReflectiveMethodInvocation封装所有执行数据,然后procced处理拦截器链和joinpoint。// JdkDynamicAopProxy // We need to create a method invocation... invocation = new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain); // Proceed to the joinpoint through the interceptor chain. retVal = invocation.proceed();
// ReflectiveMethodInvocation public Object proceed() throws Throwable { // We start with an index of -1 and increment early. // 执行到最后执行joinpoint方法 if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) { return invokeJoinpoint(); } // 拦截器链的执行,获取下一个要执行的 Object interceptorOrInterceptionAdvice = this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex); if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) { // Evaluate dynamic method matcher here: static part will already have // been evaluated and found to match. InterceptorAndDynamicMethodMatcher dm = (InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice; // 执行方法匹配 if (dm.methodMatcher.matches(this.method, this.targetClass, this.arguments)) { return dm.interceptor.invoke(this); } else { // Dynamic matching failed. // Skip this interceptor and invoke the next in the chain. // 不匹配就不执行拦截器 return proceed(); } } else { // It's an interceptor, so we just invoke it: The pointcut will have // been evaluated statically before this object was constructed. // 普通拦截器,直接执行 return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this); } }
Cglib2AopProxy
通过Enhancer实现代理。顺序:1. getProxy:
2. getCallbacks:
// 拦截器回调Callback实现MethodInterceptor Callback aopInterceptor = new DynamicAdvisedInterceptor(this.advised); .... // 将拦截器的回调加入整个回调数组 Callback[] mainCallbacks = new Callback[]{ aopInterceptor, // for normal advice targetInterceptor, // invoke target without considering advice, if optimized new SerializableNoOp(), // no override for methods mapped to this targetDispatcher, this.advisedDispatcher, new EqualsInterceptor(this.advised), new HashCodeInterceptor(this.advised) }; ....
这DynamicAdvisedInterceptor通过实现的intercept来实现拦截。而在DynamicAdvisedInterceptor的Intercept中也进行了
// DynamicAdvisedInterceptor-intercept .... // 封装拦截器链 List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass); Object retVal; // Check whether we only have one InvokerInterceptor: that is, // no real advice, but just reflective invocation of the target. if (chain.isEmpty() && Modifier.isPublic(method.getModifiers())) { // We can skip creating a MethodInvocation: just invoke the target directly. // Note that the final invoker must be an InvokerInterceptor, so we know // it does nothing but a reflective operation on the target, and no hot // swapping or fancy proxying. retVal = methodProxy.invoke(target, args); } else { // We need to create a method invocation... // CglibMethodInvocation继承ReflectiveMethodInvocation,处理方式上面说过 retVal = new CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy).proceed(); } ....
总结:
所有Advice最后封装成MethodInterceptor处理;aop看起来真累,aop有些配置没用过,只能自己写Test,慢慢debug代码跟,有时候就会看到后面忘了前面,看了好几遍才算理清结构;
spring框架封装真心厉害。
