线性表数据结构解读(二)链式存储结构LinkedList
2016-09-27 16:57
776 查看
在上一篇文章中,我们详细介绍了线性表数据结构的原理以及顺序存储结构,并结合ArrayList源码进行了分析,相关文章大家可以点击这里回看我的博客:线性表数据结构解读(一)顺序存储结构ArrayList
本篇文章,我将给大家继续解读线性表数据结构,这次我们来谈链式存储结构。
我们将数据元素和下一个元素位置的结构称为链表的节点。若第一个节点只表示整个链表的起始位置,而无任何信息,称其为头结点。对于最后一个结点,后面无任何元素,其表示元素位置的地址用“^”来表示,称其为尾结点,程序实现中用”null“表示。
链表中结点的表示必须要用到两个域,其中一个存放数组元素自身的信息ai,称其为数据域,另一个存放下一个元素的地址或位置,以保证链表的连续性,称其为指针。
● 循环链表
● 双向循环链表
● 空的双向循环链表
在Java中,我们常见具有代表性的链式存储结构有很多,这里我们以LinkedList为例,进行分析,看看它内部是如何实现链式存储结构的,由于源码过长,这里我们重点分析增删改查和迭代器方法。
为了方便大家理解,下面我将画图来解释下插入结点的实现机制
上一篇文章:线性表数据结构解读(一)顺序存储结构ArrayList
本篇文章,我将给大家继续解读线性表数据结构,这次我们来谈链式存储结构。
链式存储结构
链式存储结构是用一组任意的存储单元存储线性表的数据元素,这组存储单元可以是连续的,也可以是不连续的。

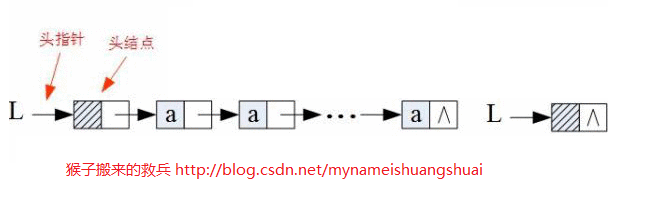

我们将数据元素和下一个元素位置的结构称为链表的节点。若第一个节点只表示整个链表的起始位置,而无任何信息,称其为头结点。对于最后一个结点,后面无任何元素,其表示元素位置的地址用“^”来表示,称其为尾结点,程序实现中用”null“表示。
链表中结点的表示必须要用到两个域,其中一个存放数组元素自身的信息ai,称其为数据域,另一个存放下一个元素的地址或位置,以保证链表的连续性,称其为指针。
链式存储结构的优缺点
优:删除和插入效率高 缺:查询效率低
链表的分类
● 单链表是由第一个元素到最后一个元素构成的一个链,其特点是从第一个元素(可能有头指针和头结点)到最后一个元素(结束标志位^)够成的一个链,成为单链表。我们通过第一个元素的指针可以顺序找到后面元素所在的位置,因此所有操作全部是从第一个元素(头指针或头结点)开始的。

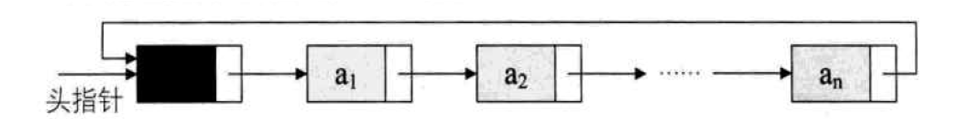

● 循环链表
在单链表中,最后一个元素的存储区域是^,如果将它指向第一个元素(头结点)位置,就构成了循环链表。循环链表的特点是在所有元素之间构成的一个环,从任何一个元素出发,都可以查找其他所有元素,同时还充分利用了空间。

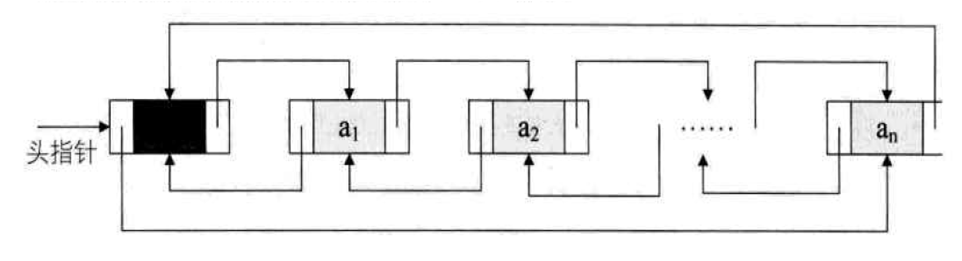

● 双向循环链表
双向循环链表是单向循环链表的每个结点中,再设置一个指向其前驱结点的指针域。也就是说,可以从任何一个元素出发,向两个方向分别查找相应的元素,可以提高操作效率。

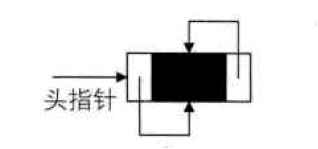

● 空的双向循环链表
在Java中,我们常见具有代表性的链式存储结构有很多,这里我们以LinkedList为例,进行分析,看看它内部是如何实现链式存储结构的,由于源码过长,这里我们重点分析增删改查和迭代器方法。
构造方法

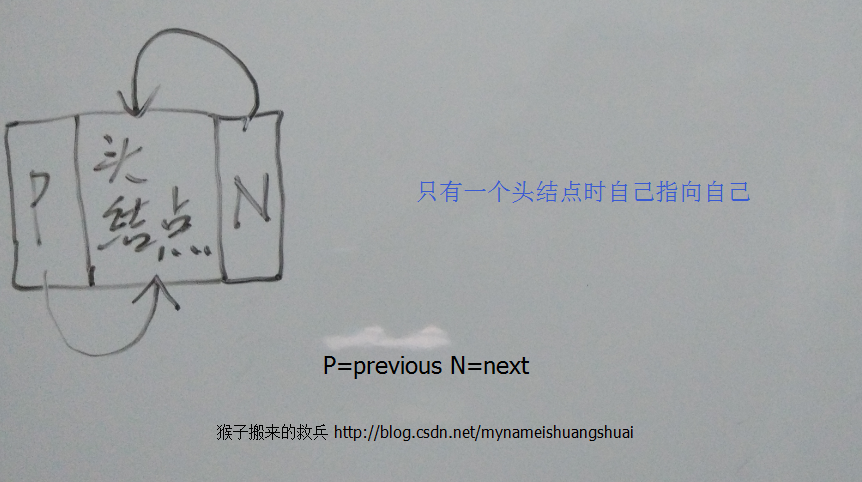

public class LinkedList<E> extends AbstractSequentialList<E> implements List<E>, Deque<E>, Queue<E>, Cloneable, Serializable { private static final long serialVersionUID = 876323262645176354L; transient int size = 0; transient Link<E> voidLink;// 头指针 private static final class Link<ET> {// 内部精简后的静态Link类,这个其实就是一个结点 ET data; Link<ET> previous, next;// 双向链表 Link(ET o, Link<ET> p, Link<ET> n) { data = o; previous = p; next = n; } } /** * LinkedList无参构造 */ public LinkedList() { // 实例化头指针 voidLink = new Link<E>(null, null, null); // 分别让头指针的previous和next等于头指针 voidLink.previous = voidLink; voidLink.next = voidLink; } /** * 接收一个Collection参数的LinkedList构造方法 */ public LinkedList(Collection<? extends E> collection) { this(); addAll(collection); }
迭代器
// 作为一个List,LinkedList肯定也包含一个迭代器 private static final class LinkIterator<ET> implements ListIterator<ET> { int pos, expectedModCount; final LinkedList<ET> list; // link表示当前正在遍历的指针,lastLink表示最后的节点 Link<ET> link, lastLink; LinkIterator(LinkedList<ET> object, int location) { list = object; expectedModCount = list.modCount; if (location >= 0 && location <= list.size) { // pos ends up as -1 if list is empty, it ranges from -1 to // list.size - 1 // if link == voidLink then pos must == -1 link = list.voidLink; if (location < list.size / 2) { for (pos = -1; pos + 1 < location; pos++) { link = link.next; } } else { for (pos = list.size; pos >= location; pos--) { link = link.previous; } } } else { throw new IndexOutOfBoundsException(); } } // 在迭代器中的添加方法,单向链表 public void add(ET object) { if (expectedModCount == list.modCount) { Link<ET> next = link.next;// 拿到当前结点的下一个结点 Link<ET> newLink = new Link<ET>(object, link, next);// new一个新的Link link.next = newLink;// 把当前结点的下一个结点指向newLink next.previous = newLink;// 把先前结点的下一个结点的前驱指向newLink link = newLink;// 最后把当前结点link变为newLink lastLink = null;// 指向新结点后,把LastLink置空 pos++; expectedModCount++; list.size++;// 长度+1 list.modCount++;// 计量器+1 } else { throw new ConcurrentModificationException(); } } public boolean hasNext() { return link.next != list.voidLink; } public boolean hasPrevious() { return link != list.voidLink; } public ET next() { if (expectedModCount == list.modCount) { LinkedList.Link<ET> next = link.next; if (next != list.voidLink) { lastLink = link = next; pos++; return link.data; } throw new NoSuchElementException(); } throw new ConcurrentModificationException(); } public int nextIndex() { return pos + 1; } public ET previous() { if (expectedModCount == list.modCount) { if (link != list.voidLink) { lastLink = link; link = link.previous; pos--; return lastLink.data; } throw new NoSuchElementException(); } throw new ConcurrentModificationException(); } public int previousIndex() { return pos; } // 移除当前结点 public void remove() { if (expectedModCount == list.modCount) { if (lastLink != null) { Link<ET> next = lastLink.next; Link<ET> previous = lastLink.previous; next.previous = previous; previous.next = next; if (lastLink == link) { pos--; } link = previous; lastLink = null; expectedModCount++; list.size--; list.modCount++; } else { throw new IllegalStateException(); } } else { throw new ConcurrentModificationException(); } } // 修改当前结点 public void set(ET object) { if (expectedModCount == list.modCount) { if (lastLink != null) { lastLink.data = object; } else { throw new IllegalStateException(); } } else { throw new ConcurrentModificationException(); } } }
添加方法
/** * 添加方法,在指定位置进行添加 * @param location the index at which to insert. * @param object the object to add. * @throws IndexOutOfBoundsException * if {@code location < 0 || location > size()} */ @Override public void add(int location, E object) { if (location >= 0 && location <= size) {// 在链表的中间添加 Link<E> link = voidLink; // 为了提高效率,采用二分法的思想,需要判断前半段和后半段进行插入 if (location < (size / 2)) {// 表示在前半段 for (int i = 0; i <= location; i++) { link = link.next; } } else {// 表示在后半段 for (int i = size; i > location; i--) { link = link.previous; } } // 将当前结点的前一结点赋值给previous Link<E> previous = link.previous; // 初始化先创建结点newLink,其数据域是object,前面的结点是previous,后面的结点是link Link<E> newLink = new Link<E>(object, previous, link); // 让previous.next指向新节点 previous.next = newLink; // 同时让link.previous指向新节点 link.previous = newLink; size++;// 长度+1 modCount++;// 计量器+1 } else { throw new IndexOutOfBoundsException(); } } /** * 将元素(E)添加到LinkedList中 * @param object the object to add. * @return always true */ @Override public boolean add(E object) { return addLastImpl(object); } /** * 在最猴添加元素的方法 */ private boolean addLastImpl(E object) { // 将头结点的previous,其实就是头结点自己,赋值给oldLast Link<E> oldLast = voidLink.previous; // 新建一个要插入的新节点,其数据域是object,previous结点是oldLast,next结点是voidLink Link<E> newLink = new Link<E>(object, oldLast, voidLink); // 让头指针的前面previous指向新建结点 voidLink.previous = newLink; // 让oldLast.next指向新建结点 oldLast.next = newLink; size++;// 长度+1 modCount++;// 计量器+1 return true; }

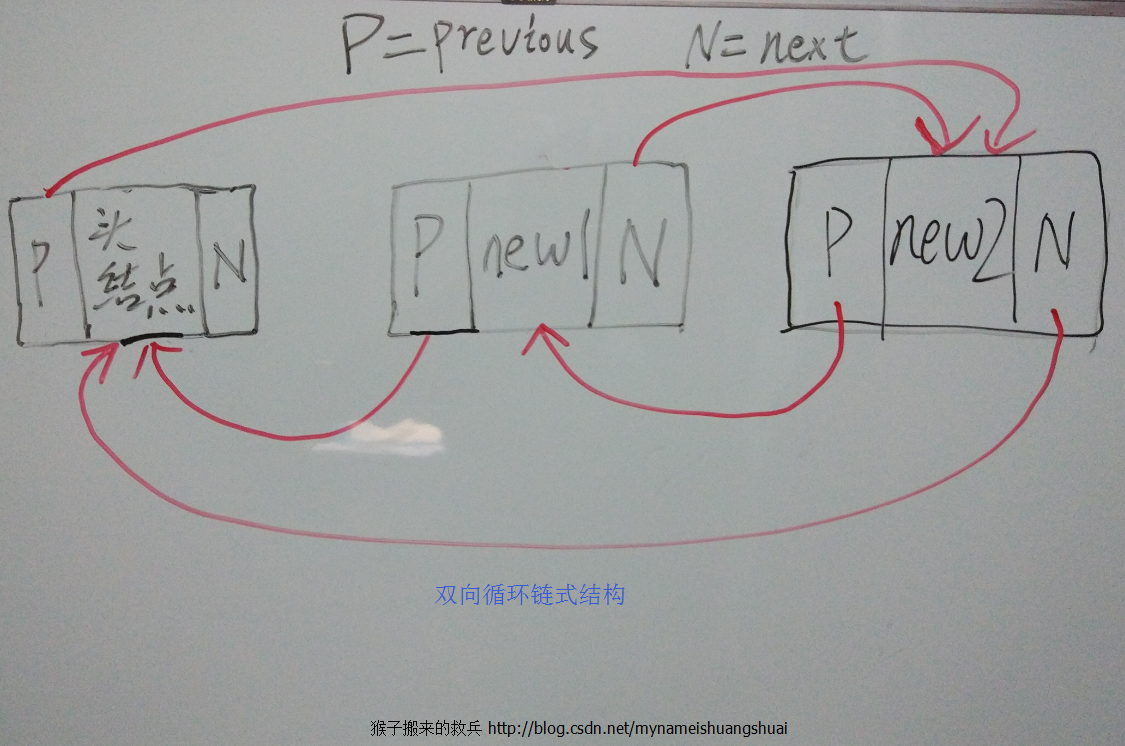

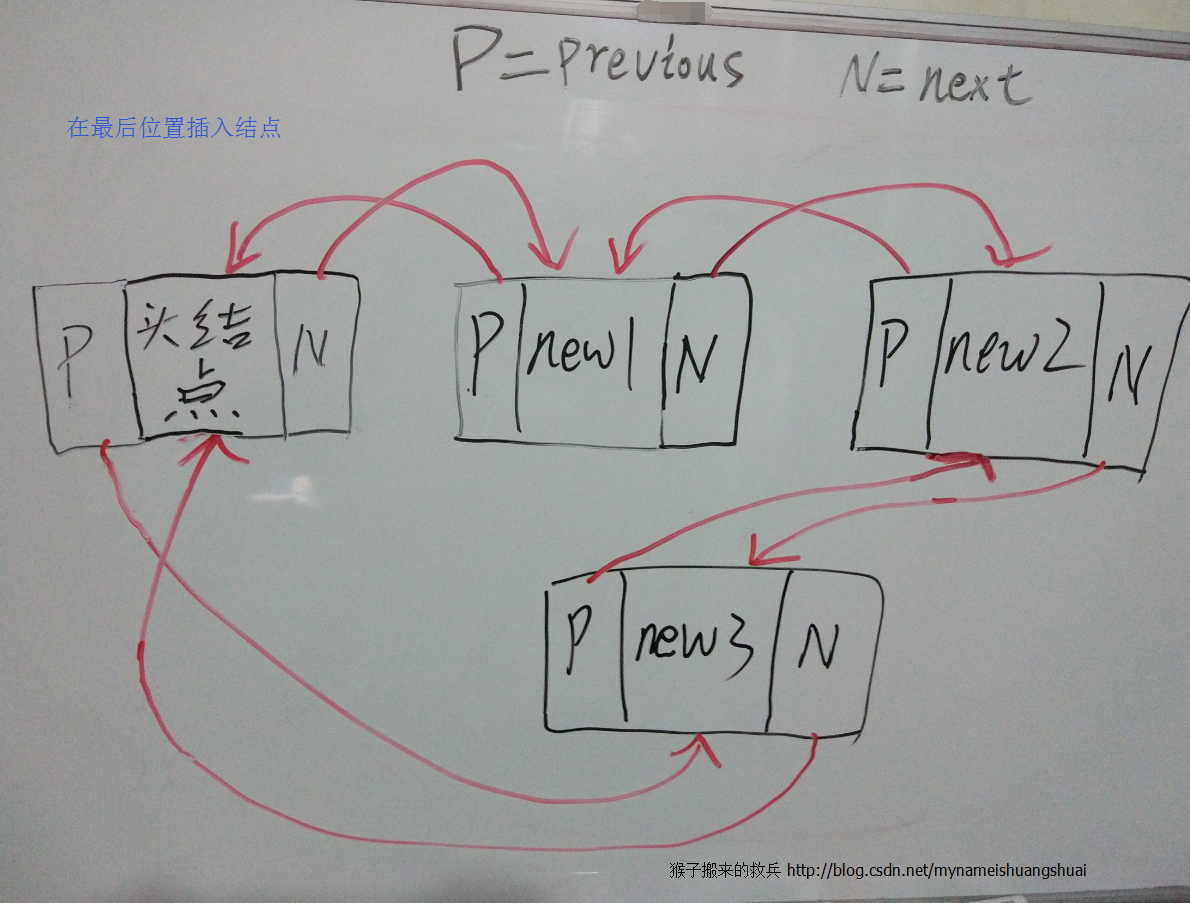

为了方便大家理解,下面我将画图来解释下插入结点的实现机制
删除方法
/** * Removes the object at the specified location from this {@code LinkedList}. * @param location the index of the object to remove * @return the removed object * @throws IndexOutOfBoundsException * if {@code location < 0 || location >= size()} */ @Override public E remove(int location) { // 先判断location >= 0 && location < size if (location >= 0 && location < size) { Link<E> link = voidLink; // 采用二分法的思想,先找前半段 if (location < (size / 2)) { for (int i = 0; i <= location; i++) { link = link.next; } } else {// 再找后半段 for (int i = size; i > location; i--) { link = link.previous; } } Link<E> previous = link.previous; Link<E> next = link.next; previous.next = next;// 待删除结点的前一结点的后指针指向待删除结点的后一个结点 next.previous = previous;// 待删除结点的后一结点的前指针指向待删除结点的前一个结点 size--;// 长度-1 modCount++;// 计量器+1 // 返回移除结点的内容 return link.data; } throw new IndexOutOfBoundsException(); }
获取方法
@Override public E get(int location) { // 先判断location >= 0 && location < size if (location >= 0 && location < size) { Link<E> link = voidLink; // 采用二分法的思想,先找前半段 if (location < (size / 2)) { for (int i = 0; i <= location; i++) { link = link.next; } } else {// 再找后半段 for (int i = size; i > location; i--) { link = link.previous; } } return link.data;// 返回结点内容 } throw new IndexOutOfBoundsException(); }
修改方法
/** * Replaces the element at the specified location in this {@code LinkedList} * with the specified object. * * @param location * the index at which to put the specified object. * @param object * the object to add. * @return the previous element at the index. * @throws ClassCastException * if the class of an object is inappropriate for this list. * @throws IllegalArgumentException * if an object cannot be added to this list. * @throws IndexOutOfBoundsException * if {@code location < 0 || location >= size()} */ @Override public E set(int location, E object) { // 先判断location >= 0 && location < size if (location >= 0 && location < size) { Link<E> link = voidLink; // 采用二分法的思想,先找前半段 if (location < (size / 2)) { for (int i = 0; i <= location; i++) { link = link.next; } } else {// 再找后半段 for (int i = size; i > location; i--) { link = link.previous; } } // 做数据修改 E result = link.data; link.data = object; return result; } throw new IndexOutOfBoundsException(); }
上一篇文章:线性表数据结构解读(一)顺序存储结构ArrayList
