数据结构--------------AVLTree
2016-07-25 16:24
537 查看
一、AVLTree的概念
在计算机科学中,AVL树是最先发明的自平衡二叉查找树。在AVL树中任何节点的两个子树的高度最大差别为一,所以它也被称为高度平衡树。查找、插入和删除在平均和最坏情况下都是O(log
n)。增加和删除可能需要通过一次或多次树旋转来重新平衡这个树。AVL树得名于它的发明者 G.M. Adelson-Velsky 和 E.M. Landis,他们在 1962 年的论文 "An algorithm for the organization of information" 中发表了它。
二、AVLTree的性质
1. 左子树和右子树的高度之差的绝对值不超过1
2. 树中的每个左子树和右子树都是AVL树
3. 每个节点都有一个平衡因子(balance factor--bf),任一节点的平衡因子是-1,0,1。(每个节点的平衡因子等于右子树的高度减去左子树的高度 )

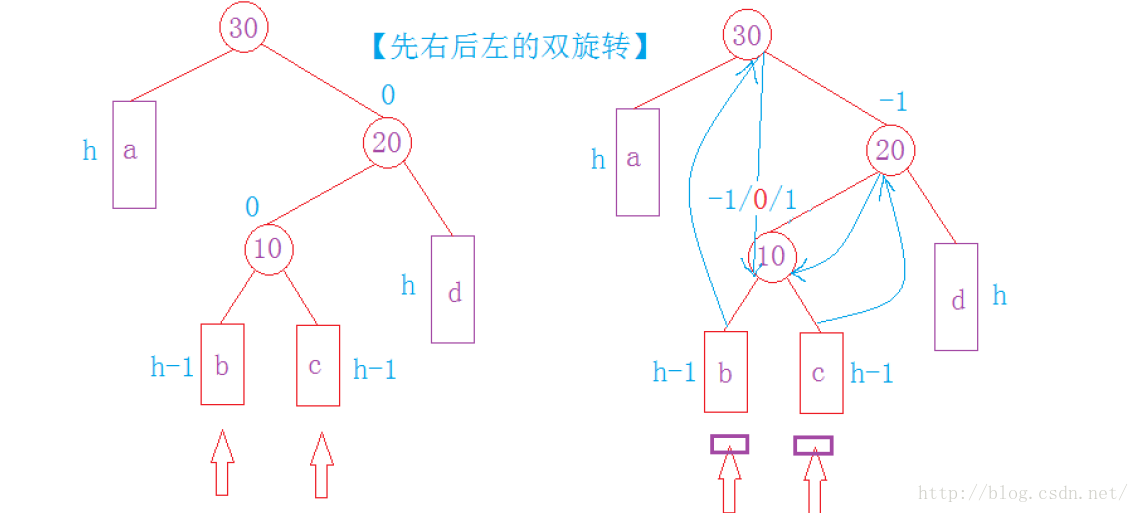

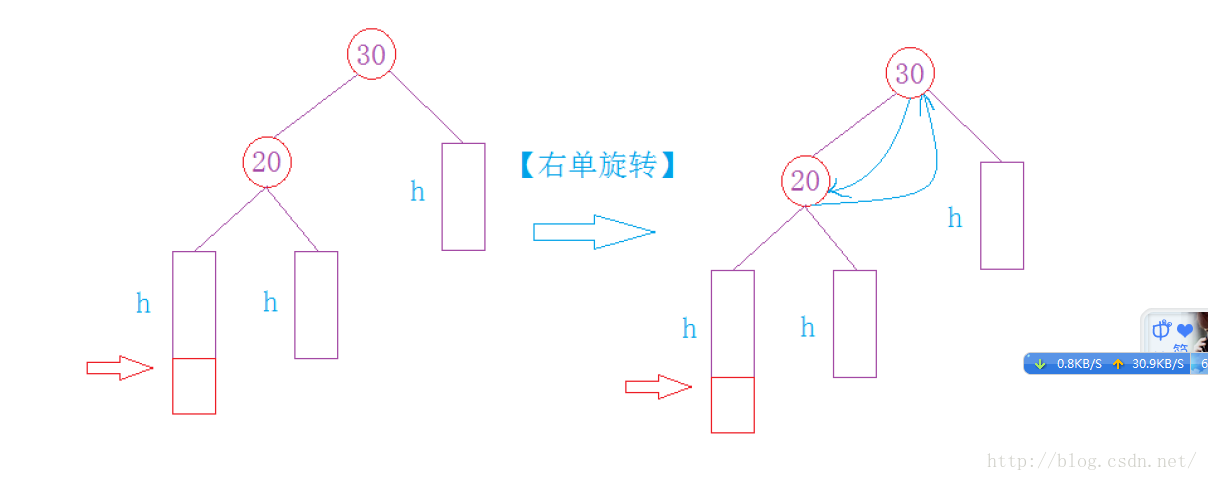

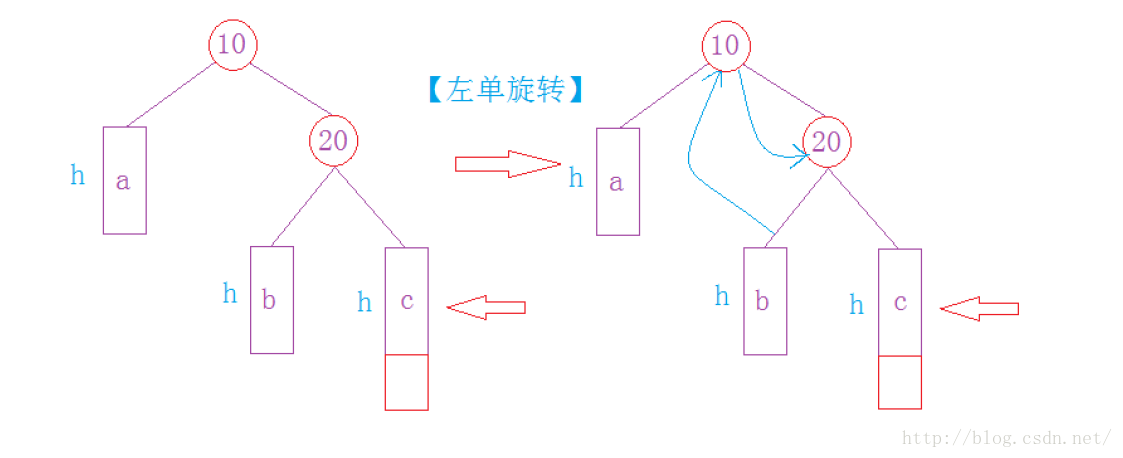

三、AVLTree的插入
四、实现如下:
#include "AVLTree.h"
int main()
{
//int a[]={16,3,7,11,9,26,18,14,15};
int a[]={4, 2, 6, 1, 3, 5, 15, 7, 16, 14};
AVLTree<int,int> t;
for(int i=0;i<sizeof(a)/sizeof(a[0]);i++)
{
t.Insert(a[i],i);
}
t.InOrder();
cout<<t.IsBalance()<<endl;
system("pause");
return 0;
}
五、结果:
在计算机科学中,AVL树是最先发明的自平衡二叉查找树。在AVL树中任何节点的两个子树的高度最大差别为一,所以它也被称为高度平衡树。查找、插入和删除在平均和最坏情况下都是O(log
n)。增加和删除可能需要通过一次或多次树旋转来重新平衡这个树。AVL树得名于它的发明者 G.M. Adelson-Velsky 和 E.M. Landis,他们在 1962 年的论文 "An algorithm for the organization of information" 中发表了它。
二、AVLTree的性质
1. 左子树和右子树的高度之差的绝对值不超过1
2. 树中的每个左子树和右子树都是AVL树
3. 每个节点都有一个平衡因子(balance factor--bf),任一节点的平衡因子是-1,0,1。(每个节点的平衡因子等于右子树的高度减去左子树的高度 )
三、AVLTree的插入
四、实现如下:
#pragma once #include<iostream> #include<math.h> using namespace std; template<class K,class V> struct AVLTreeNode { AVLTreeNode(K key,V value) :_left(NULL) ,_right(NULL) ,_parent(NULL) ,_key(key) ,_value(value) ,bf(0) { } AVLTreeNode* _left; AVLTreeNode* _right; AVLTreeNode* _parent; K _key; V _value; int bf; //平衡因子 }; template<class K,class V> class AVLTree { typedef AVLTreeNode<K,V> Node; public: AVLTree() :_root(NULL) { } bool Insert(K key,V value) { if(_root==NULL) { _root=new Node(key,value); return true; } Node* cur=_root; Node* parent=NULL; while(cur) { parent=cur; if(cur->_key>key) { cur=cur->_left; } else if(cur->_key<key) { cur=cur->_right; } else { return false; } } cur=new Node(key,value); if(parent->_key>key) { parent->_left=cur; cur->_parent=parent; } else if(parent->_key<key) { parent->_right=cur; cur->_parent=parent; } //更新平衡因子 //不平衡旋转 while(parent) { if(cur==parent->_right) { parent->bf++; } else { parent->bf--; } if(parent->bf==0) { break; } else if(parent->bf==1||parent->bf==-1) { cur=parent; parent=cur->_parent; } else// bf==2 、-2 { //旋转 if(parent->bf==-2) { if(cur->bf==-1) { RotateR(parent); } else { RotateLR(parent); } break; } else { if(cur->bf==1) { RotateL(parent); } else { RotateRL(parent); } break; } } } return true; } bool Find(K key) { } bool Remove() {} void InOrder() { _InOrder(_root); } bool IsBalance() { return _IsBalance(_root); } private: bool Height(Node* root) { if(root==NULL) { return 0; } int left_height=Height(root->_left); int right_height=Height(root->_right); return left_height ? right_height+1 : left_height+1; } bool _IsBalance(Node* root) { if(root==NULL) { return true; } int left=Height(root->_left); int right=Height(root->_right); return abs(left-right)<2 && _IsBalance(root->_left)&&_IsBalance(root->_right); } void _InOrder(Node* root) { if(root==NULL) { return; } _InOrder(root->_left); cout<<root->_key<<endl; _InOrder(root->_right); } void RotateR(Node* parent) { Node* subL=parent->_left; Node* subLR=subL->_right; Node* ppNode=parent->_parent; subL->_right=parent; parent->_parent=subL; if(subLR) { subLR->_parent=parent; } parent->_left=subLR; if(ppNode&&ppNode->_left==parent) { ppNode->_left=subL; } else if(ppNode&&ppNode->_right==parent) { ppNode->_right=subL; } subL->_parent=ppNode; subL->bf=parent->bf=0; if(ppNode==NULL) { _root=subL; } } void RotateL(Node* parent) { Node* subR=parent->_right; Node* subRL=subR->_left; Node* ppNode=parent->_parent; subR->_left=parent; parent->_parent=subR; if(subRL) { subRL->_parent=parent; } parent->_right=subRL; if(ppNode&&ppNode->_left==parent) { ppNode->_left=subR; } else if(ppNode&&ppNode->_right==parent) { ppNode->_right=subR; } subR->_parent=ppNode; subR->bf=parent->bf=0; if(ppNode==NULL) { _root=subR; } } void RotateLR(Node* parent) { Node* subL=parent->_left; Node* subLR=subL->_right; int bf=subLR->bf; RotateL(parent->_left); RotateR(parent); if(bf==-1) { parent->bf=1; subL->bf=0; } else if(bf==1) { parent->bf=0; subL->bf=-1; } else { parent->bf=subL->bf=0; } subLR->bf=0; } void RotateRL(Node* parent) { Node* subR=parent->_right; Node* subRL=subR->_left; int bf=subRL->bf; RotateR(parent->_right); RotateL(parent); if(bf==-1) { parent->bf=0; subR->bf=1; } else if(bf==1) { parent->bf=-1; subR->bf=0; } else { parent->bf=subR->bf=0; } subRL->bf=0; } private: Node* _root; };
#include "AVLTree.h"
int main()
{
//int a[]={16,3,7,11,9,26,18,14,15};
int a[]={4, 2, 6, 1, 3, 5, 15, 7, 16, 14};
AVLTree<int,int> t;
for(int i=0;i<sizeof(a)/sizeof(a[0]);i++)
{
t.Insert(a[i],i);
}
t.InOrder();
cout<<t.IsBalance()<<endl;
system("pause");
return 0;
}
五、结果:
