QT画图教程4:QT实现2D画图
2016-04-21 14:03
615 查看
Qt中提供了强大的2D绘图系统,可以使用相同的API在屏幕上和绘图·设备上进行绘制,主要基于QPainter、QPainterDevice和QPainterEngine这3个类。QPainter执行绘图操作,QPainterDevice提供绘图设备,是一个二维空间的抽象,QPainterEngine提供一些接口。QPainter可以绘制一切简单的图形,从简单的一条直线到任何复杂的图形。QPainter类可以在一切继承QPainterDevice的子类上进行绘制操作。
1.重绘事件的处理函数 :paintEvent()
在Qt Assistant查paintEvent() 函数,有如下的说明:void QWidget::paintEvent ( QPaintEvent * event ) [virtual protected]This event handler can be reimplemented in a subclass to receive paint events passed in event.基础部件类Qwidget提供的paintEvent函数,是纯虚函数;继承它的子类想用它,必须重新实现它。下列三种情况会发生重绘事件:a)当窗口部件第一次显示时,系统会自动产生一个绘图事件; b)repaint()与update()函数被调用时; c)当窗口部件被其他部件遮挡,然后又再次显示出来时,就会对隐藏的区域产生一个重绘事件。
d) 重新调整窗口大小时。
2.画刷与画笔
(1)QBrush
画刷与画笔是Qt绘图时,重要属性;前者用QBrush描述,用来填充,后者用QPen描述,来绘制轮廓线。
QBrush的属性我们可以从QBrush类的构造函数中看出,在QtAssistant中输入QBrush;
QBrush ()QBrush ( Qt::BrushStyle style )QBrush ( const QColor & color, Qt::BrushStyle style = Qt::SolidPattern )QBrush ( Qt::GlobalColor color, Qt::BrushStyle style = Qt::SolidPattern )QBrush ( const QColor & color, const QPixmap & pixmap )QBrush ( Qt::GlobalColor color, const QPixmap & pixmap )QBrush ( const QPixmap & pixmap )QBrush ( const QImage & image )QBrush ( const QBrush & other )QBrush ( const QGradient & gradient )
可以看出QBrush 定义了 QPainter 的填充模式(style),具有样式、颜色(QColor)、渐变(QGradient)以及纹理(QPximap)等属性。
style定义了填充模式,通过枚举类型Qt::BrushStyle来实现,默认值是Qt::NoBrush,不进行任何填充;填充模式包括基本填充模式,渐变填充,和纹理填充模式,下图是不同的填充模式区别.
画刷的 gradient() 定义了渐变填充。这个属性只有在样式是 Qt::LinearGradientPattern、Qt::RadialGradientPattern 或者 Qt::ConicalGradientPattern 之一时才有效。渐变可以由 QGradient 对象表示。Qt 提供了三种渐变:QLinearGradient、QConicalGradient 和 QRadialGradient,它们都是 QGradient 的子类。
当画刷样式是 Qt::TexturePattern 时,texture() 定义了用于填充的纹理。注意,即使你没有设置样式为 Qt::TexturePattern,当你调用 setTexture() 函数时,QBrush 会自动将 style() 设置为 Qt::TexturePattern。
画刷的color定义了填充的颜色,这个颜色可以使用Qt预定义的颜色常量(Qt::GlobalColor),也可以使用QColor对象。
(2)QPen
画笔用QPen类来实现,先看一下QPen类的构造函数,
QPen ()QPen ( Qt::PenStyle style )QPen ( const QColor & color )QPen ( const QBrush & brush, qreal width, Qt::PenStyle style = Qt::SolidLine, Qt::PenCapStyle cap = Qt::SquareCap, Qt::PenJoinStyle join = Qt::BevelJoin )QPen ( const QPen & pen )
包含了画笔实用的画刷,线宽,画笔风格,画笔端点风格,画笔连接风格;也可以使用对应的函数进行设置,
void setBrush ( const QBrush & brush )void setCapStyle ( Qt::PenCapStyle style )void setColor ( const QColor & color )void setJoinStyle ( Qt::PenJoinStyle style )void setWidth ( int width )[cpp] view plain copy QPainter painter(this); QPen pen(Qt::green, 3, Qt::DashDotLine, Qt::RoundCap, Qt::RoundJoin); painter.setPen(pen);
等价于[cpp] view plain copy QPainter painter(this); QPen pen; // creates a default pen pen.setStyle(Qt::DashDotLine); pen.setWidth(3); pen.setBrush(Qt::green); pen.setCapStyle(Qt::RoundCap); pen.setJoinStyle(Qt::RoundJoin); painter.setPen(pen); 使用构造函数的优点是代码较短,但是参数含义不明确;使用 set 函数则正好反过来。Pen Style: 用枚举类型Qt::PenStyle来定义
Cap Style:
The cap style defines how the end points of lines are drawn using QPainter. The cap style only apply to wide lines, i.e. when the width is 1 or greater.当线宽比较大时,才能看书画笔端点风格的差别。
Join Style:
The join style defines how joins between two connected lines can be drawn using QPainter. The join style only apply to wide lines, i.e. when the width is 1 or greater.当两个宽度大于1的线,端点连接时的风格;代码:使用画笔:[cpp] view plain copy void MyWidget::paintEvent(QPaintEvent *) { QPainter painter(this); painter.drawLine(0,0,100,100); //画直线 //定义画笔 QPen pen(Qt::green,5,Qt::DashLine,Qt::FlatCap,Qt::RoundJoin); painter.setPen(pen); //使用画笔 QRectF rectangle(70.0, 40.0, 80.0, 60.0); int startAngle = 30 * 16; int spanAngle = 120 * 16; //绘制圆弧 painter.drawArc(rectangle, startAngle, spanAngle); /**********重新定义画笔***************/ pen.setWidth(2); pen.setStyle(Qt::SolidLine); painter.setPen(pen); //使用画笔 painter.drawRect(50,50,20,100); } 使用画刷:[cpp] view plain copy void MyWidget::paintEvent(QPaintEvent *) { QPainter painter(this); QBrush brush(QColor(0, 0, 255), Qt::Dense4Pattern);//创建画刷 painter.setBrush(brush); //使用画刷 painter.drawEllipse(220, 20, 50, 50); //绘制椭圆 //设置纹理 brush.setTexture(QPixmap("../mydrawing/eryuelan.JPG")); //重新使用画刷 painter.setBrush(brush); //定义四个点 static const QPointF points[4] = { QPointF(270.0, 80.0), QPointF(290.0, 10.0), QPointF(350.0, 30.0), QPointF(390.0, 70.0) }; //使用四个点绘制多边形 painter.drawPolygon(points, 4); }
3.渐变填充

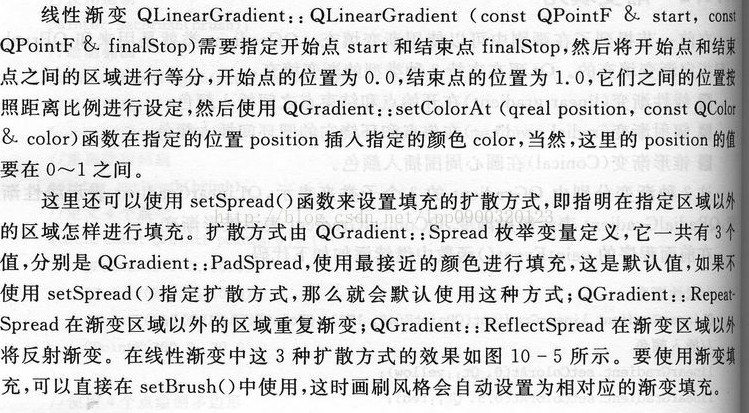

(1)线性渐变
(2)辐射渐变
QRadialGradient::QRadialGradient ( const QPointF & center, qreal radius, const QPointF & focalPoint )Constructs a radial gradient with the given center, radius and focalPoint.需要指定圆心center和半径radius,这样就可以确定一个圆,然后再指定一个焦点focalPoint;焦点的位置为0, 圆环的位置为1,然后在焦点和圆环之间插入颜色。同样可以使用setspread()指定扩散方式。[cpp] viewplain copy //辐射渐变 QRadialGradient radialGradient(QPointF(200, 190), 50, QPointF(275, 200)); radialGradient.setColorAt(0, QColor(255, 255, 100, 150)); radialGradient.setColorAt(1, QColor(0, 0, 0, 50)); painter.setBrush(radialGradient); painter.drawEllipse(QPointF(200, 190), 50, 50);(3)锥形渐变
QConicalGradient::QConicalGradient ( const QPointF & center, qreal angle )Constructs a conical gradient with the given center, starting the interpolation at the given angle. The angle must be specified in degrees between 0 and 360.需要指定一个中心点和一个角度,角度在0到360度之间,沿逆时针从给定的角度开始环绕中心点插入颜色。[cpp] viewplain copy QConicalGradient conicalGradient(QPointF(350, 190), 60); conicalGradient.setColorAt(0.2, Qt::cyan); conicalGradient.setColorAt(0.9, Qt::black); painter.setBrush(conicalGradient); painter.drawEllipse(QPointF(350, 190), 50, 50);相关文章推荐
