首先在Tesseract-OCR官网下载Tesseract-OCR 3.02,以及中文数据包chi_sim.traineddata(简体)
接下来就是新建一个JAVA EE项目,把Tesseract-OCR放在项目WebRoot下。
下面是主要代码:
接受客户端上传过来的图片,使用Tesseract-OCR识别后返回至前台。
下面是JSP代码:
效果图:
在图片没做任何处理的情况下,识别率还是挺低的。。
接下来就是新建一个JAVA EE项目,把Tesseract-OCR放在项目WebRoot下。
下面是主要代码:
接受客户端上传过来的图片,使用Tesseract-OCR识别后返回至前台。
package servlet; import java.io.IOException; import javax.servlet.ServletConfig; import javax.servlet.ServletException; import javax.servlet.http.HttpServlet; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import util.FileUtil; import util.OCRUtil; import com.jspsmart.upload.File; import com.jspsmart.upload.SmartUpload; import com.jspsmart.upload.SmartUploadException; public class OCRServlet extends HttpServlet { public void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { response.setCharacterEncoding("gbk"); SmartUpload upload = new SmartUpload(); ServletConfig sc = this.getServletConfig(); upload.initialize(sc, request, response); File file = null; long size = 5*1024*1024; upload.setAllowedFilesList("gif,jpg,bmp,png"); upload.setMaxFileSize(size); upload.setCharset("GBK"); try { upload.upload(); file = upload.getFiles().getFile(0); String userPath = "upload\\"+request.getRemoteAddr().replaceAll("\\.", "")+"\\"; String svpath = userPath+file.getFileName(); if(!file.isMissing()){ String realPath = request.getRealPath("/"); FileUtil.creatPath(realPath+userPath); file.saveAs(svpath,SmartUpload.SAVE_VIRTUAL); try { OCRUtil.runOCR(realPath, realPath+svpath, realPath+userPath+"ocr",true); request.setAttribute("txt", FileUtil.read(realPath+userPath+"ocr.txt").trim()); request.getRequestDispatcher("/index.jsp").forward(request, response); } catch (Exception e) { e.printStackTrace(); } FileUtil.delete(realPath+userPath); } } catch (SmartUploadException e) { e.printStackTrace(); } } }
package util; public class OCRUtil { public static String chiSIM = "chi_sim"; public static void runOCR(String realPath,String imagePath,String outPath,boolean isChi) throws Exception{ Runtime r = Runtime.getRuntime(); String cmd = "\""+realPath+"Tesseract-OCR\\tesseract.exe\" \""+imagePath+"\" \""+outPath+"\" -l "+(isChi?chiSIM:""); r.exec(cmd); } }
package util; import java.io.BufferedReader; import java.io.File; import java.io.FileInputStream; import java.io.IOException; import java.io.InputStreamReader; public class FileUtil { public static String read(String path) throws IOException{ String txt = ""; File file = new File(path); long timeout = 30*60; while(!(file.isFile() && file.exists())){ file = new File(path); try { Thread.sleep(100); timeout -= 100; } catch (InterruptedException e) { e.printStackTrace(); } } if (file.isFile() && file.exists()) { InputStreamReader read = new InputStreamReader(new FileInputStream(file), "UTF-8"); BufferedReader bReader = new BufferedReader(read); String temptxt = ""; txt = ""; while((temptxt=bReader.readLine())!=null){ txt += temptxt; } bReader.close(); read.close(); } return txt; } public static void creatPath(String path) throws IOException{ File file = new File(path); file.mkdir(); } public static void delete(String path) throws IOException{ File file = new File(path); String[] list = file.list(); File tempFile = null; for(String temp : list){ tempFile = new File(path+temp); tempFile.delete(); } file.delete(); } }
下面是JSP代码:
<%@ page language="java" import="java.util.*" pageEncoding="GBK"%> <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"> <html> <head> <title>在线OCR--By Lee</title> <meta http-equiv="pragma" content="no-cache"> <meta http-equiv="cache-control" content="no-cache"> <meta http-equiv="expires" content="0"> <meta http-equiv="keywords" content="keyword1,keyword2,keyword3"> <meta http-equiv="description" content="This is my page"> <!--a <link rel="stylesheet" type="text/css" href="styles.css"> --> </head> <script type="text/javascript"> function check(){ var path = document.getElementById("image").value; if(path.length==0){ alert("请选择要导入的图片!"); return false; } if(!(path.match(/.jpg$/i)||path.match(/.bmp$/i)||path.match(/.gif$/i)||path.match(/.png$/i))){ alert("只支持JPG,BMP,GIF,PNG格式!"); return false; } return true; } </script> <body> <form enctype="multipart/form-data" method="post" action="OCRServlet" onsubmit="return check();"> 选择文件:<input type="file" id="image" name="image"><br/> 上传文件:<input type="submit" value="提交上传"> </form> <textarea rows="20" cols="60"><%Object txt = request.getAttribute("txt"); if(txt!=null&&txt.toString().length()==0){ out.print("未识别出任何文字!"); }else if(txt!=null){ out.print(txt.toString()); } %></textarea> </body> </html>

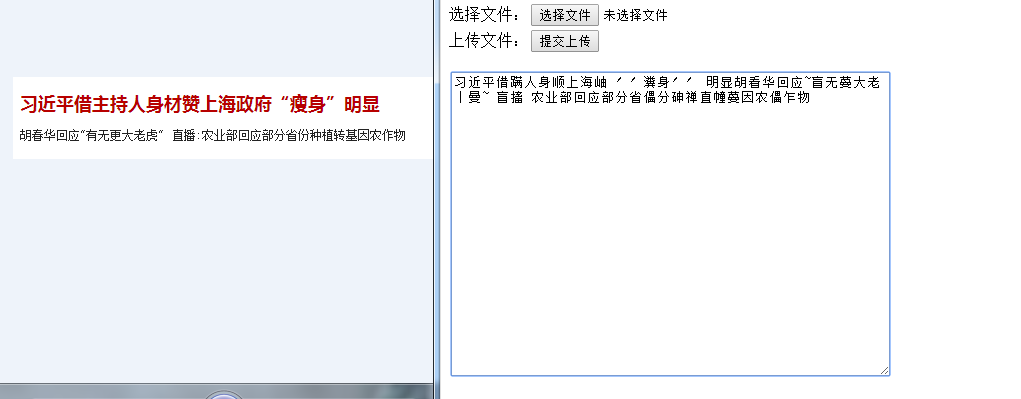

效果图:
在图片没做任何处理的情况下,识别率还是挺低的。。
